Solid State Relays - Industrial Mount Plug In 80VDC 5A 18-32VDC Control
Solid State Relays - Industrial Mount Plug In 80VDC 5A 18-32VDC Control
Solid State Relays - Industrial Mount Plug In 80VDC 5A 18-32VDC Control
| Part | Load Current | Package / Case | Approval Agency | Operating Temperature (Max) | Operating Temperature (Min) | Mounting Type | Output Type | Circuit | Voltage - Input (DC) Minimum | Voltage - Input (DC) Maximum | Voltage - Load (Max) | Voltage - Load (Min) | Termination Style | Package Name | Quick Connect Size (0.187") | Voltage - Input (AC) Maximum | Voltage - Input (AC) Minimum | On-State Resistance (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sensata-Crydom | 2 A | Hockey Puck | CE CSA TUV UL | 80 °C | -40 °C | Chassis Mount | AC Zero Cross | SPST-NO (1 Form A) | 3 VDC | 32 VDC | 280 V | 24 V | Screw Terminal | |||||
 Sensata-Crydom | 15 A | 6-SIP | CE cURus | 80 °C | -40 °C | Through Hole | AC Zero Cross | SPST-NO (1 Form A) | 3 VDC | 32 VDC | 280 V | 24 V | PC Pin | 6-SIP | ||||
 Sensata-Crydom | 5 A | Module | CE cURus IEC | 80 °C | -30 °C | Socketable | AC Zero Cross | SPST-NO (1 Form A) | 48 VDC | 72 VDC | 280 V | 24 V | Plug In Quick Connect | 0.187 in | ||||
 Sensata-Crydom | 50 A | Hockey Puck | CE CSA cURus TUV | 80 °C | -40 °C | Chassis Mount | AC Zero Cross | SPST-NO (1 Form A) | 20 VDC | 48 V | 660 V | 48 V | Screw Terminal | 280 V | 20 V | |||
 Sensata-Crydom | 5 A | Module | CE cURus IEC | 80 °C | -30 °C | Socketable | AC Zero Cross | SPST-NO (1 Form A) | 280 V | 24 V | Plug In Quick Connect | 0.187 in | 140 V | 90 V | ||||

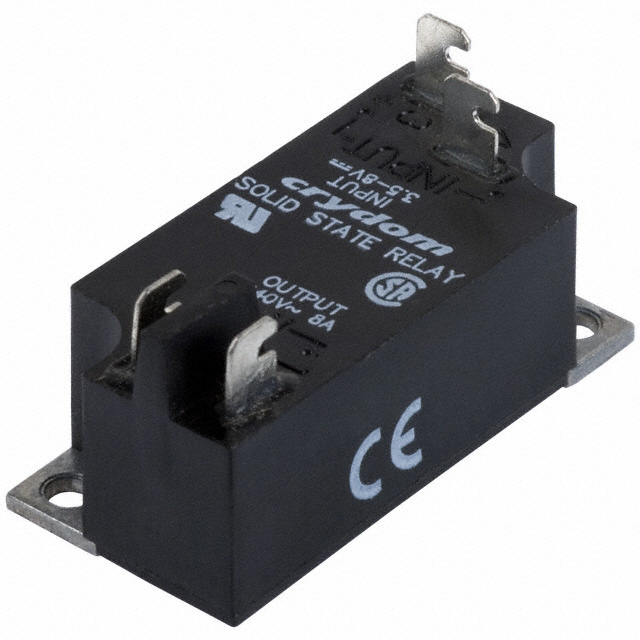

 Sensata-Crydom | 8 A | Module | CE CSA UL | 80 °C | -30 °C | Chassis Mount | AC Zero Cross | SPST-NO (1 Form A) | 3.5 VDC | 8 VDC | 140 V | 20 V | Quick Connect | 0.187 in | ||||

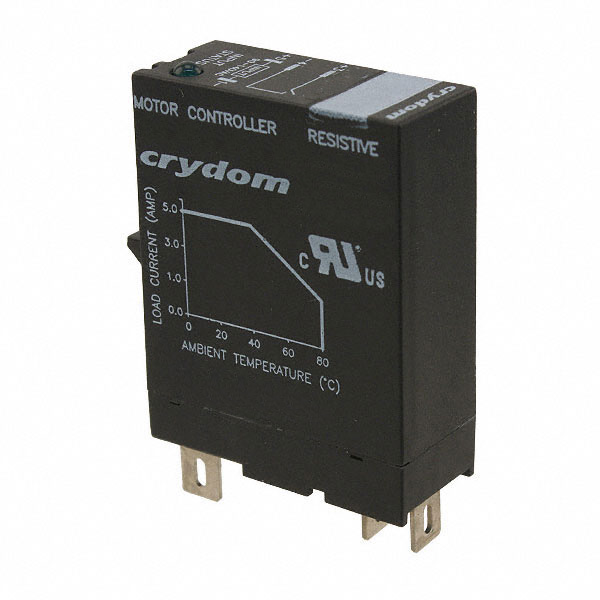

Sensata-Crydom | 5 A | Module | CE cURus IEC | 80 °C | -30 °C | Socketable | DC | SPST-NO (1 Form A) | 18 VDC | 32 VDC | 80 V | 1 V | Plug In Quick Connect | 0.187 in | ||||
Sensata-Crydom | 10 A | Hockey Puck | CE CSA TUV UL | 80 °C | -40 °C | Chassis Mount | AC Zero Cross | SPST-NO (1 Form A) | 3 VDC | 32 VDC | 140 V | 24 V | Screw Terminal | |||||
 Sensata-Crydom | 7 A | Hockey Puck | CE cURus | 100 °C | -40 °C | Chassis Mount | DC | SPST-NO (1 Form A) | 3.5 VDC | 32 VDC | 100 V | 1 V | Screw Terminal | 290 mOhms | ||||
 Sensata-Crydom | 50 A | Hockey Puck | CE CSA cURus TUV | 80 °C | -40 °C | Chassis Mount | AC Zero Cross | SPST-NO (1 Form A) | 660 V | 48 V | Screw Terminal | 280 V | 90 V |
