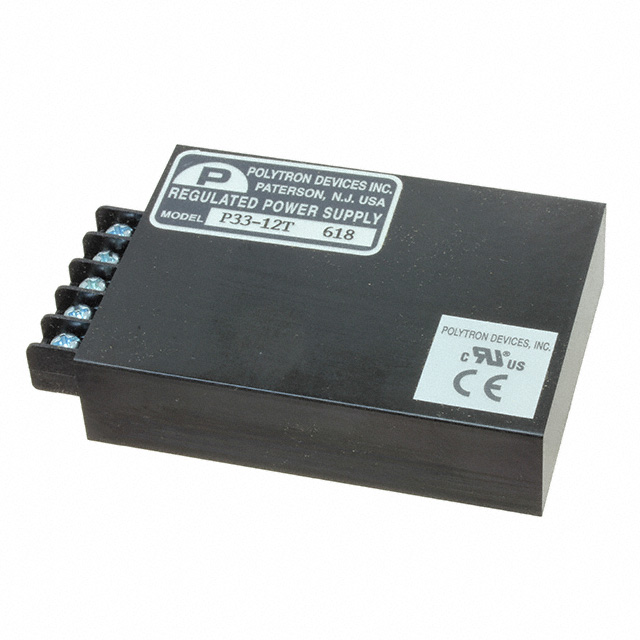

P33-1 Series

Manufacturer: Polytron

Catalog

AC/DC CONVERTER +/-15V

Part	Approval Agency	Voltage - Output 1	Current - Output 1	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Current - Output 2	Voltage - Output 2	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Type	Line Regulation	Load Regulation	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max)	Current - Output (Max)	Features	Package / Case	Voltage - Isolation
Polytron P33-1T	CE cURus	15 V	100 mA	Chassis Mount	104.1 mm	2.5 "	4.1 "	22.2 mm	0.88 in	63.5 mm	100 mA	-15 V	105 VAC	125 VAC	ITE (Commercial)	71 °C	-25 °C	2	Enclosed
Polytron P33-1W	CE cURus UL	15 V		Through Hole	88.9 mm	2.5 "	3.5 "		0.88 in				105 VAC	125 VAC	ITE (Commercial)	85 °C	-40 C	2	Enclosed	0.02 %	0.02 %	63.5 mm	22.4 mm	100 mA	100 mA	SCP	7-DIP Module 5 Leads
Polytron P33-1-FST/MHIA	CE cURus	15 V	100 mA	Chassis Mount	104.1 mm	2.5 "	4.1 "	22.2 mm	0.88 in	63.5 mm	100 mA	-15 V	105 VAC	125 VAC	Medical	71 °C	-25 °C	2	Enclosed									4000 V
Polytron P33-1X/MHIA	CE cURus	15 V		Through Hole	88.9 mm	2.5 "	3.5 "	22.2 mm	0.87 in	63.5 mm			105 VAC	220 VAC	Medical	71 °C	-25 °C	2	Enclosed	0.02 %	0.02 %			100 mA	100 mA		7-DIP Module 5 Leads
Polytron P33-1XA/MHIA	CE cURus	15 V		Through Hole	88.9 mm	2.5 "	3.5 "	22.2 mm	0.87 in	63.5 mm			105 VAC	230 VAC	Medical	71 °C	-25 °C	2	Enclosed	0.02 %	0.02 %			100 mA	100 mA		7-DIP Module 5 Leads
Polytron P33-1T/MHIA	CE cURus	15 V	100 mA	Chassis Mount	104.1 mm	2.5 "	4.1 "	22.2 mm	0.88 in	63.5 mm	100 mA	-15 V	105 VAC	125 VAC	Medical	71 °C	-25 °C	2	Enclosed									4000 V
Polytron P33-1XA	CE cURus UL	15 V		Through Hole	88.9 mm	2.5 "	3.5 "		0.88 in				105 VAC	230 VAC	ITE (Commercial)	71 °C	-25 °C	2	Enclosed	0.02 %	0.02 %	63.5 mm	22.4 mm	100 mA	100 mA	SCP	7-DIP Module 5 Leads
Polytron P33-1Q/MHIA	CE cURus	15 V		Through Hole	88.9 mm	2.5 "	3.5 "	22.2 mm	0.87 in	63.5 mm			100 VAC	125 VAC	Medical	71 °C	-25 °C	2	Enclosed	0.02 %	0.02 %			100 mA	100 mA		7-DIP Module 5 Leads
