Zmw0 Series Series

Catalog

SWITCH SNAP ACT SPST-NO 0.1A 30V

Part	Ingress Protection	Mechanical Life	Mounting Type	Pretravel	Pretravel	Operating Force	Actuator Type	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Circuit	Current Rating (Amps)	Overtravel [custom]	Overtravel [custom]	Electrical Life	Termination Style
LITTELFUSE ZMW00AT10KYDC	IP67 - Dust Tight Waterproof	500000 Cycles	Chassis Mount	0.09 in	2.3 mm	150 gf	Lever Straight	30 V	85 °C	-40 C	Off-Mom	SPST-NO	100 mA	2.5 mm	0.098 "	300000 Cycles	Wire Leads

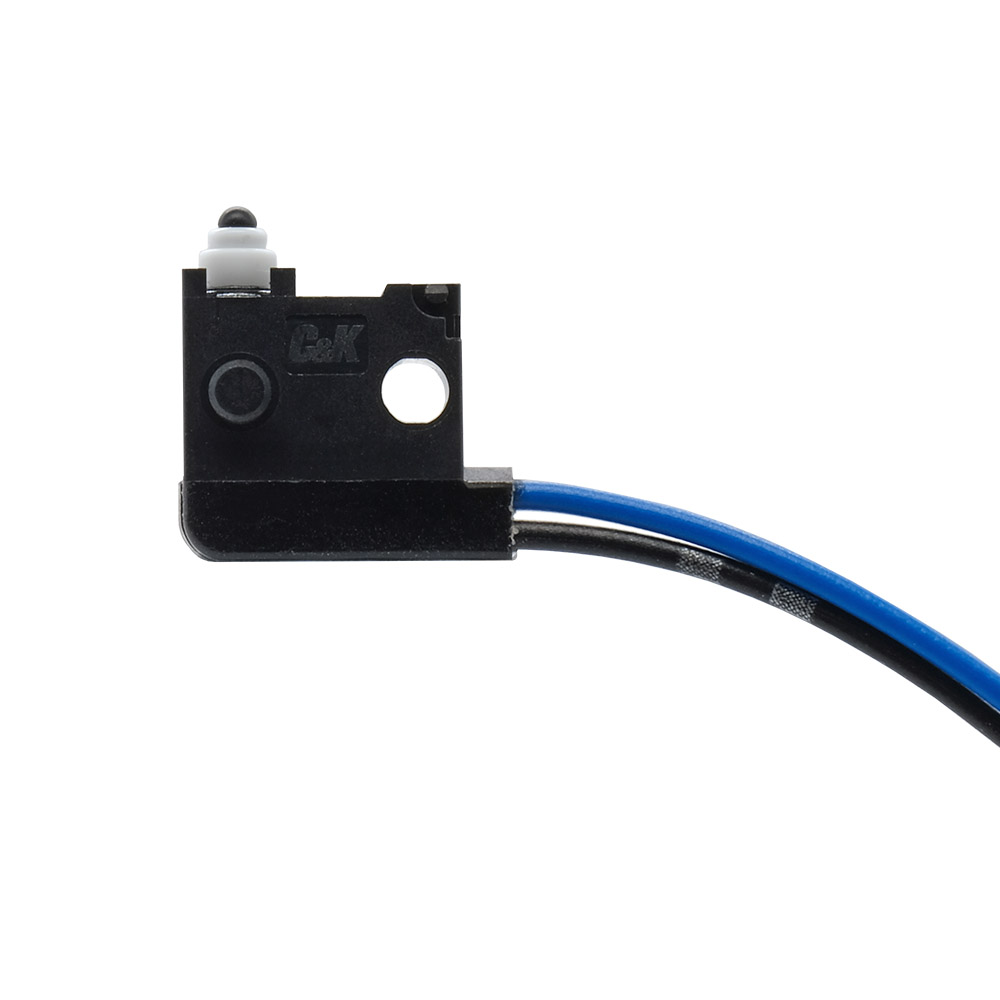

LITTELFUSE ZMW00AP00JCDC	IP67 - Dust Tight Waterproof	500000 Cycles	Chassis Mount	0.03 "	0.8 mm	150 gf	Round (Pin Plunger)	30 V	85 °C	-40 C	On-Mom	SPDT	100 mA	2.2 mm	0.087 "	300000 Cycles	Wire Leads
LITTELFUSE ZMW00AT10KWDC	IP67 - Dust Tight Waterproof	500000 Cycles	Chassis Mount	0.09 in	2.3 mm	150 gf	Lever Straight	30 V	85 °C	-40 C	On-Mom	SPST-NC	100 mA	2.5 mm	0.098 "	300000 Cycles	Wire Leads
LITTELFUSE ZMW00AT10PCAA	IP67 - Dust Tight Waterproof	500000 Cycles	Through Hole	0.09 in	2.3 mm	150 gf	Lever Straight	30 V	85 °C	-40 C	On-Mom	SPDT	100 mA	2.5 mm	0.098 "	300000 Cycles	PC Pin
LITTELFUSE ZMW00AT10PCDC	IP67 - Dust Tight Waterproof	500000 Cycles	Through Hole	0.09 in	2.3 mm	150 gf	Lever Straight	30 V	85 °C	-40 C	On-Mom	SPDT	100 mA	2.5 mm	0.098 "	300000 Cycles	PC Pin
LITTELFUSE ZMW00AP00KWAA	IP67 - Dust Tight Waterproof	500000 Cycles	Chassis Mount	0.03 "	0.8 mm	150 gf	Round (Pin Plunger)	30 V	85 °C	-40 C	On-Mom	SPST-NC	100 mA	2.2 mm	0.087 "	300000 Cycles	Wire Leads
LITTELFUSE ZMW00AT10KWAA	IP67 - Dust Tight Waterproof	500000 Cycles	Chassis Mount	0.09 in	2.3 mm	150 gf	Lever Straight	30 V	85 °C	-40 C	On-Mom	SPST-NC	100 mA	2.5 mm	0.098 "	300000 Cycles	Wire Leads
LITTELFUSE ZMW00AP00JWAA	IP67 - Dust Tight Waterproof	500000 Cycles	Chassis Mount	0.03 "	0.8 mm	150 gf	Round (Pin Plunger)	30 V	85 °C	-40 C	On-Mom	SPST-NC	100 mA	2.2 mm	0.087 "	300000 Cycles	Wire Leads
LITTELFUSE ZMW00AP00KYAA	IP67 - Dust Tight Waterproof	500000 Cycles	Chassis Mount	0.03 "	0.8 mm	150 gf	Round (Pin Plunger)	30 V	85 °C	-40 C	Off-Mom	SPST-NO	100 mA	2.2 mm	0.087 "	300000 Cycles	Wire Leads

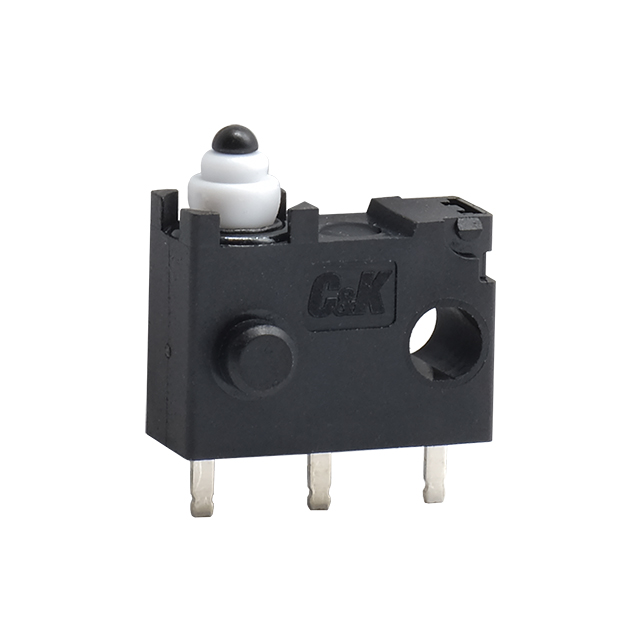

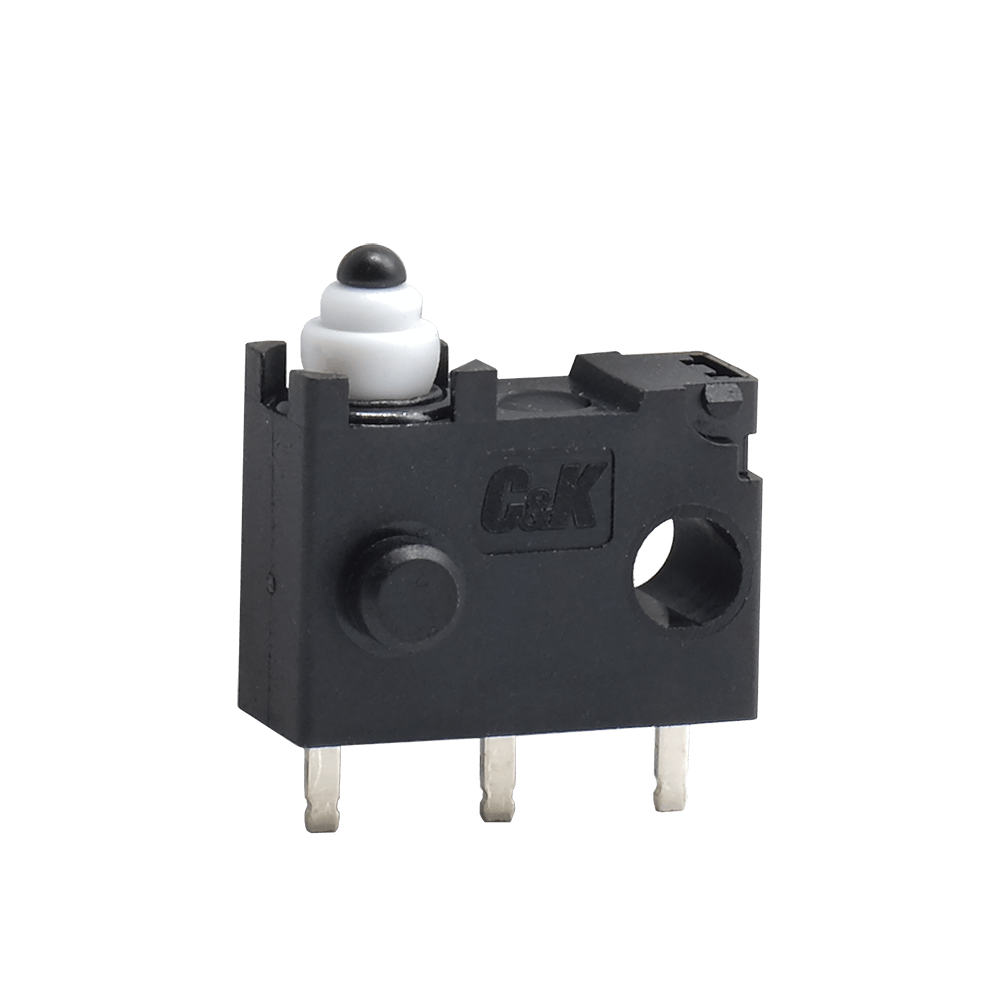

LITTELFUSE ZMW00AP00PCDC	IP67 - Dust Tight Waterproof	500000 Cycles	Through Hole	0.03 "	0.8 mm	150 gf	Round (Pin Plunger)	30 V	85 °C	-40 C	On-Mom	SPDT	100 mA	2.2 mm	0.087 "	300000 Cycles	PC Pin
