2029059 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Catalog

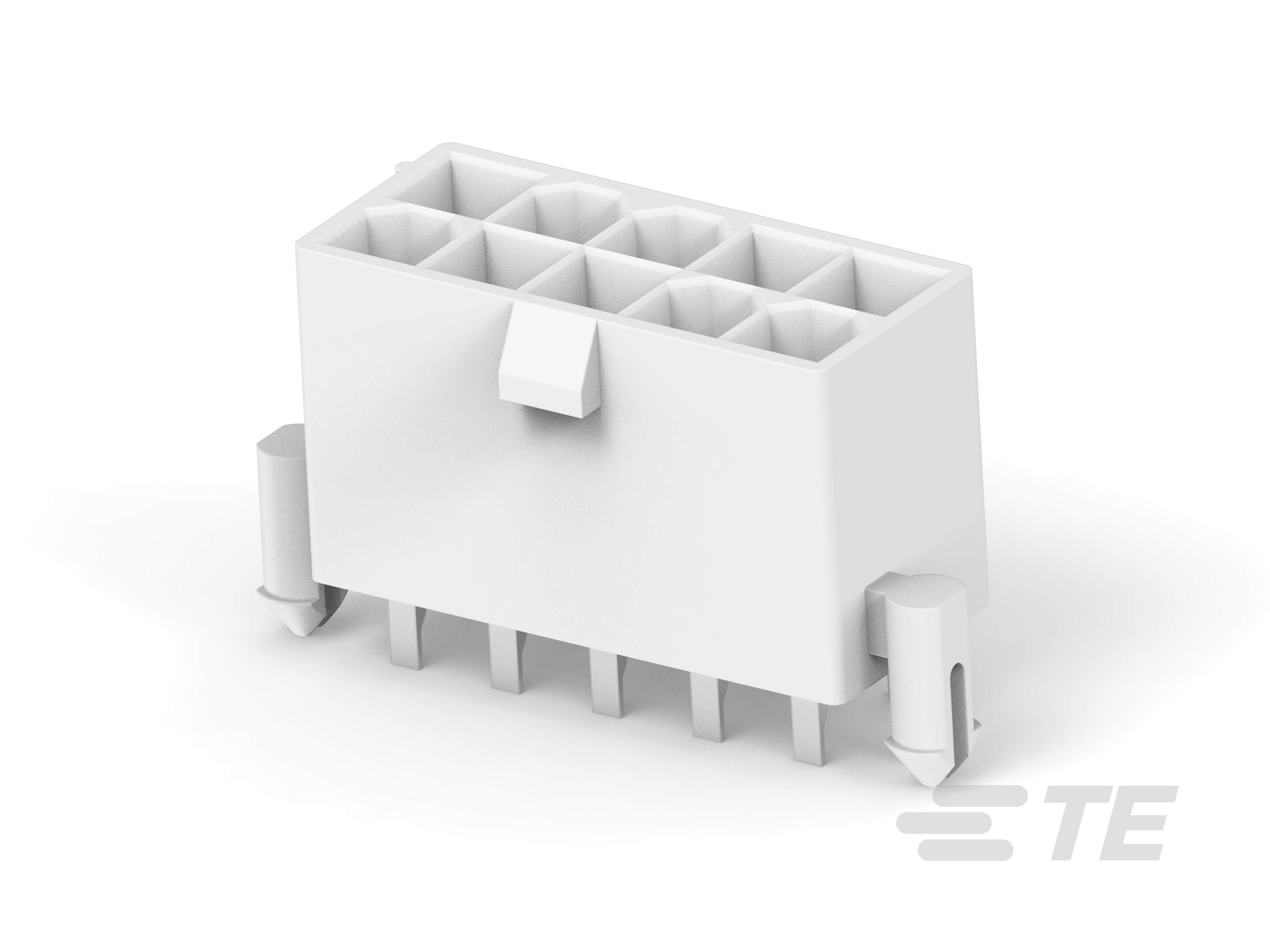

10P VAL-U-LOK VRTHDR W/PGS GW
| Part | Features | Contact Material | Pitch - Mating | Pitch - Mating | Insulation Color | Connector Type | Number of Positions | Style | Shrouding | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post | Contact Length - Post | Voltage Rating | Fastening Type | Termination | Insulation Material | Applications | Number of Rows | Contact Shape | Mounting Type | Insulation Height | Insulation Height | Contact Type | Row Spacing - Mating | Row Spacing - Mating | Material Flammability Rating | Number of Positions Loaded | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Board Lock Glow Wire Compliant | Brass | 4.2 mm | 0.165 in | White | Header | 10 | Board to Cable/Wire | Shrouded - 4 Wall | Tin | -40 °C | 105 ░C | 3.5 mm | 0.138 in | 600 VAC | Locking Ramp | Solder | Polyamide (PA66) Nylon 6/6 | General Purpose Industrial Lighting | 2 | Square | Through Hole | 12.8 mm | 0.504 in | Male Pin | 4.2 mm | 0.165 in | UL94 V-0 | All | 9 A |
 TE Connectivity Raychem Cable Protection | Board Lock Glow Wire Compliant | Brass | 4.2 mm | 0.165 in | White | Header | 24 | Board to Cable/Wire | Shrouded - 4 Wall | Tin | -40 °C | 105 ░C | 3.5 mm | 0.138 in | 600 VAC | Locking Ramp | Solder | Polyamide (PA66) Nylon 6/6 | General Purpose Industrial Lighting | 2 | Square | Through Hole | 12.8 mm | 0.504 in | Male Pin | 4.2 mm | 0.165 in | UL94 V-0 | All | 9 A |
TE Connectivity Raychem Cable Protection | Board Lock Glow Wire Compliant | Brass | 4.2 mm | 0.165 in | White | Header | 22 positions | Board to Cable/Wire | Shrouded - 4 Wall | Tin | -40 °C | 105 ░C | 3.5 mm | 0.138 in | 600 VAC | Locking Ramp | Solder | Polyamide (PA66) Nylon 6/6 | General Purpose Industrial Lighting | 2 | Square | Through Hole | 12.8 mm | 0.504 in | Male Pin | 4.2 mm | 0.165 in | UL94 V-0 | All | 9 A |

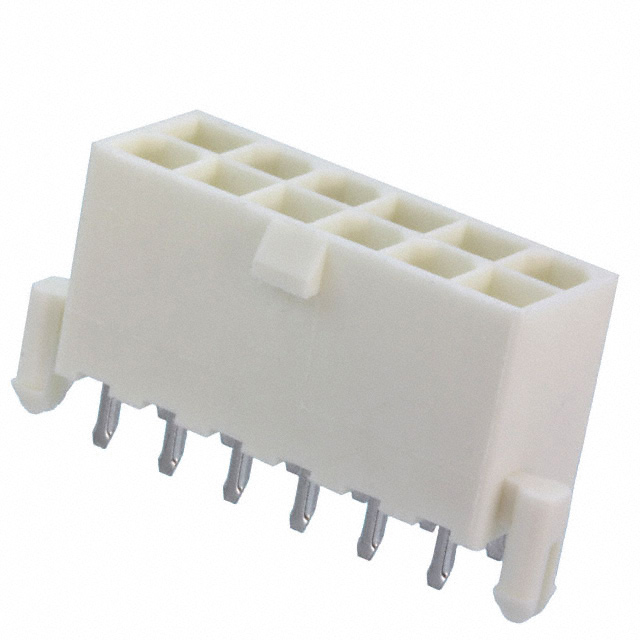

 TE Connectivity Raychem Cable Protection | Board Lock Glow Wire Compliant | Brass | 4.2 mm | 0.165 in | White | Header | 12 | Board to Cable/Wire | Shrouded - 4 Wall | Tin | -40 °C | 105 ░C | 3.5 mm | 0.138 in | 600 VAC | Locking Ramp | Solder | Polyamide (PA66) Nylon 6/6 | General Purpose Industrial Lighting | 2 | Square | Through Hole | 12.8 mm | 0.504 in | Male Pin | 4.2 mm | 0.165 in | UL94 V-0 | All | 9 A |

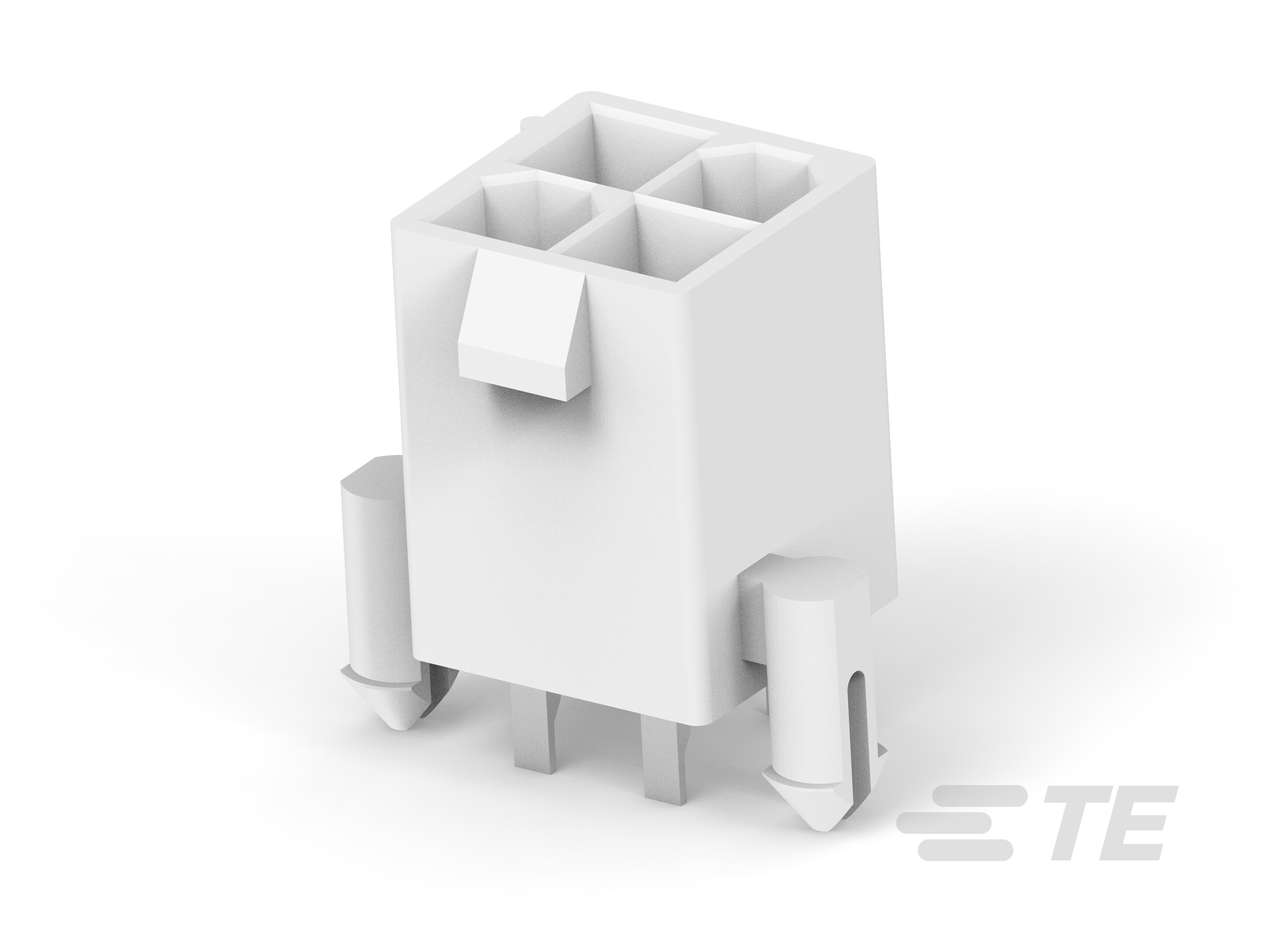

 TE Connectivity Raychem Cable Protection | Board Lock Glow Wire Compliant | Brass | 4.2 mm | 0.165 in | White | Header | 4 | Board to Cable/Wire | Shrouded - 4 Wall | Tin | -40 °C | 105 ░C | 3.5 mm | 0.138 in | 600 VAC | Locking Ramp | Solder | Polyamide (PA66) Nylon 6/6 | General Purpose Industrial Lighting | 2 | Square | Through Hole | 12.8 mm | 0.504 in | Male Pin | 4.2 mm | 0.165 in | UL94 V-0 | All | 9 A |
