315-084 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 84POS 0.156

Part	Material - Insulation	Termination Rows [custom]	Card Type	Contact Finish	Card Thickness [Max]	Card Thickness [Min]	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Mounting Type	Read Out	Color	Gender	Pitch	Pitch	Contact Type	Number of Positions/Bay/Row	Number of Positions [custom]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Flange Feature	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 315-084-500-207	Polyester Thermoplastic	2	Non Specified - Dual Edge	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder Eyelet(s)	-40 C	105 ░C	Copper Alloy	Panel Mount	Dual	Green	Female	3.96 mm	0.156 in	Semi Bellows	42	84	0.25 Ám	10 Áin	2	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 315-084-500-201	Polyester Thermoplastic	2	Non Specified - Dual Edge	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder Eyelet(s)	-40 C	105 ░C	Copper Alloy	Free Hanging (In-Line)	Dual	Green	Female	3.96 mm	0.156 in	Semi Bellows	42	84	0.25 Ám	10 Áin	2
EDAC Inc. 315-084-520-208	Polyester Thermoplastic	2	Non Specified - Dual Edge	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	-40 C	105 ░C	Copper Alloy	Panel Mount Through Hole	Dual	Green	Female	3.96 mm	0.156 in	Semi Bellows	42	84	0.25 Ám	10 Áin	2	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 315-084-556-258	Polyester Thermoplastic	2	Non Specified - Dual Edge	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	-40 C	105 ░C	Copper Alloy	Board Edge Straddle Mount	Dual	Green	Female	3.96 mm	0.156 in	Semi Bellows	42	84	0.25 Ám	10 Áin	2	4-40 Flush Mount Threaded Insert Top Opening	Card Extender Card Guides
EDAC Inc. 315-084-555-201	Polyester Thermoplastic	2	Non Specified - Dual Edge	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	-40 C	105 ░C	Copper Alloy	Board Edge Straddle Mount	Dual	Green	Female	3.96 mm	0.156 in	Semi Bellows	42	84	0.25 Ám	10 Áin	2		Card Extender

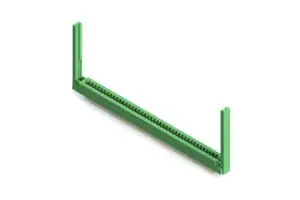

EDAC Inc. 315-084-500-268	Polyester Thermoplastic	2	Non Specified - Dual Edge	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder Eyelet(s)	-40 C	105 ░C	Copper Alloy	Panel Mount	Dual	Green	Female	3.96 mm	0.156 in	Semi Bellows	42	84	0.25 Ám	10 Áin	2	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 315-084-500-204	Polyester Thermoplastic	2	Non Specified - Dual Edge	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder Eyelet(s)	-40 C	105 ░C	Copper Alloy	Panel Mount	Dual	Green	Female	3.96 mm	0.156 in	Semi Bellows	42	84	0.25 Ám	10 Áin	2	Flush Mount Top Opening Unthreaded		0.156 "	3.96 mm
EDAC Inc. 315-084-520-204	Polyester Thermoplastic	2	Non Specified - Dual Edge	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	-40 C	105 ░C	Copper Alloy	Panel Mount Through Hole	Dual	Green	Female	3.96 mm	0.156 in	Semi Bellows	42	84	0.25 Ám	10 Áin	2	Flush Mount Top Opening Unthreaded		0.156 "	3.96 mm
EDAC Inc. 315-084-555-258	Polyester Thermoplastic	2	Non Specified - Dual Edge	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	-40 C	105 ░C	Copper Alloy	Board Edge Straddle Mount	Dual	Green	Female	3.96 mm	0.156 in	Semi Bellows	42	84	0.25 Ám	10 Áin	2	4-40 Flush Mount Threaded Insert Top Opening	Card Extender Card Guides
EDAC Inc. 315-084-555-278	Polyester Thermoplastic	2	Non Specified - Dual Edge	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	-40 C	105 ░C	Copper Alloy	Board Edge Straddle Mount	Dual	Green	Female	3.96 mm	0.156 in	Semi Bellows	42	84	0.25 Ám	10 Áin	2	4-40 Flush Mount Threaded Insert Top Opening	Card Extender Card Guides
