WBL4 Series

Manufacturer: E-Switch

Catalog

SWITCH PUSHBUTTON 4PDT 300MA 30V

Part	Mechanical Life	Actuator Marking	Termination Style	Voltage Rating - DC	Actuator Type	Illumination Voltage (Nominal)	Illumination Type, Color	Operating Temperature [Min]	Operating Temperature [Max]	Color - Actuator/Cap	Mounting Type	Circuit	Type	Current Rating (Amps)	Switch Function

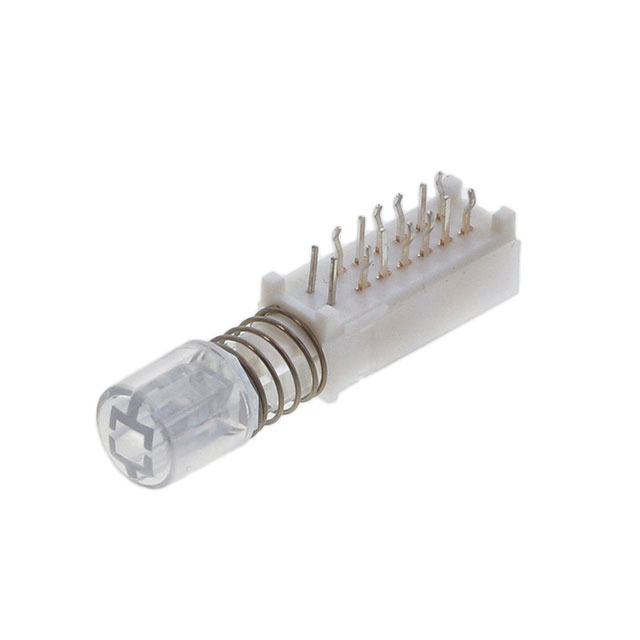

E-Switch WBL4UEEBQR05CLR	10000 Steps	No Marking	PC Pin	30 V	Button Round	3.5 VDC	Blue LED	-20 ░C	70 °C	Clear	Right Angle Through Hole	4PDT	Illuminated Standard	300 mA	On-On

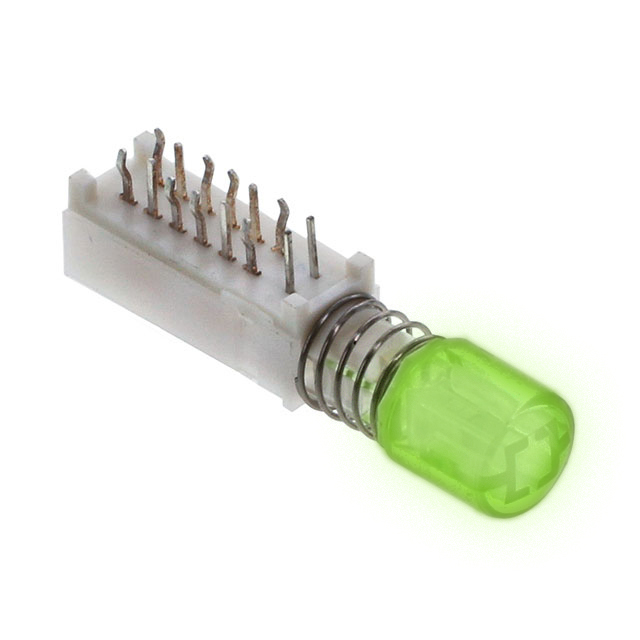

E-Switch WBL4UEEGQR05CLR	10000 Steps	No Marking	PC Pin	30 V	Button Round	1.7 VDC	Green LED	-20 ░C	70 °C	Clear	Right Angle Through Hole	4PDT	Illuminated Standard	300 mA	On-On

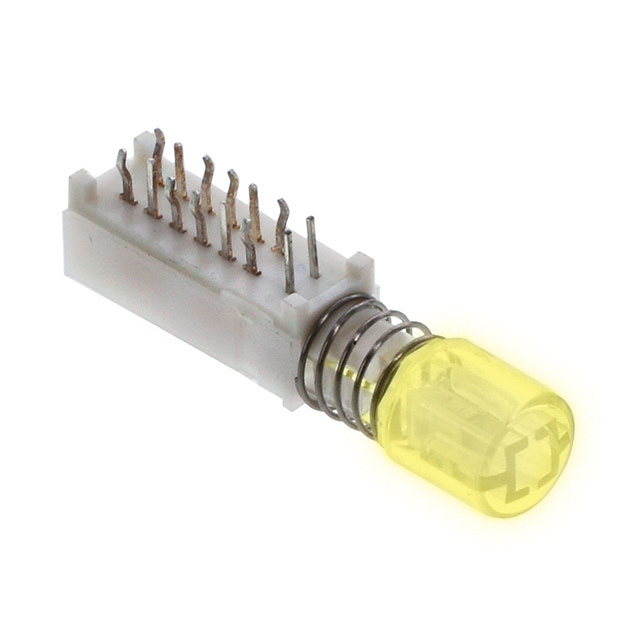

E-Switch WBL4UEEYQR05CLR	10000 Steps	No Marking	PC Pin	30 V	Button Round	1.7 VDC	LED Yellow	-20 ░C	70 °C	Clear	Right Angle Through Hole	4PDT	Illuminated Standard	300 mA	On-On

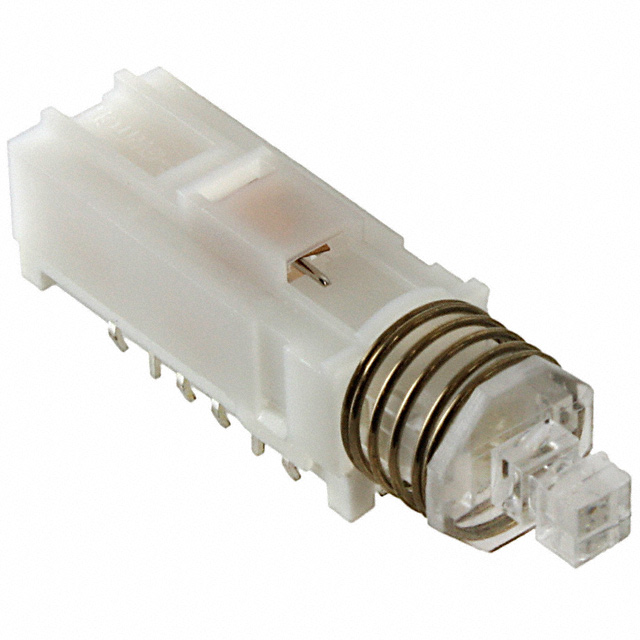

E-Switch WBL4UEEGBQ	10000 Steps	No Marking	PC Pin	30 V	Plunger for Cap	1.7 VDC 3.5 VDC	Blue/Green LED	-20 ░C	70 °C		Right Angle Through Hole	4PDT	Illuminated Standard	300 mA	On-On
E-Switch WBL4UEERQ	10000 Steps	No Marking	PC Pin	30 V	Plunger for Cap	1.7 VDC	LED Red	-20 ░C	70 °C		Right Angle Through Hole	4PDT	Illuminated Standard	300 mA	On-On
E-Switch WBL4UOARQ	10000 Steps	No Marking	PC Pin	30 V	Plunger for Cap	1.7 VDC	LED Red	-20 ░C	70 °C		Right Angle Through Hole	4PDT	Illuminated Standard	300 mA	On-Mom
E-Switch WBL4UOAGQ	10000 Steps	No Marking	PC Pin	30 V	Plunger for Cap	1.7 VDC	Green LED	-20 ░C	70 °C		Right Angle Through Hole	4PDT	Illuminated Standard	300 mA	On-Mom
