TPS61158 Series
Manufacturer: Texas Instruments
Beta
⌘K
30V WLED DRIVER WITH INTEGRATED POWER DIODE
| Part | Current - Output / Channel | Internal Switch(s) | Dimming | Supplier Device Package | Applications | Voltage - Output [Min] | Voltage - Output [Max] | Mounting Type | Topology | Frequency | Voltage - Supply (Min) [Min] | Number of Outputs | Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply (Max) [Max] | Supplied Contents | Outputs and Type | Outputs and Type | Utilized IC / Part | Voltage - Input [Max] | Voltage - Input [Min] | Features | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 30 mA | PWM | 6-WSON (2x2) | Backlight | 2.7 V | 29 V | Surface Mount | Step-Up (Boost) | 750 kHz | 2.7 V | 1 | DC DC Regulator | 85 C | -40 ¯C | 5.5 V | |||||||||

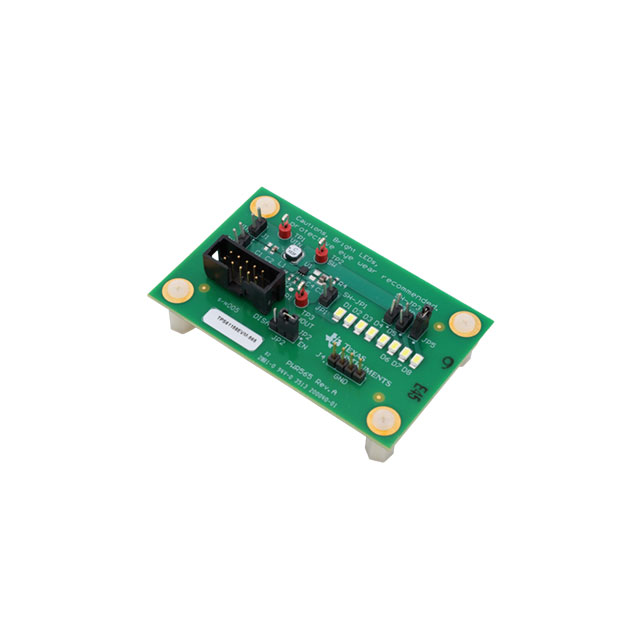

 Texas Instruments | 30 mA | Board(s) | 1 | 1 Non-Isolated Output Non-Isolated | TPS61158 | 5.5 V | 2.7 V | Dimmable | Board(s) |
