470075CY Series

Catalog

CABLE 7COND 21AWG CLEAR SHLD 50M

Part	Shield Material	Wire Gauge	Conductor Material	Conductor Strand	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Conductor Insulation	Features	Cable Type	Jacket (Insulation) Material	Length	Length	Shield Type	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Shield Coverage	Jacket Color	Length [x]	Length [x]

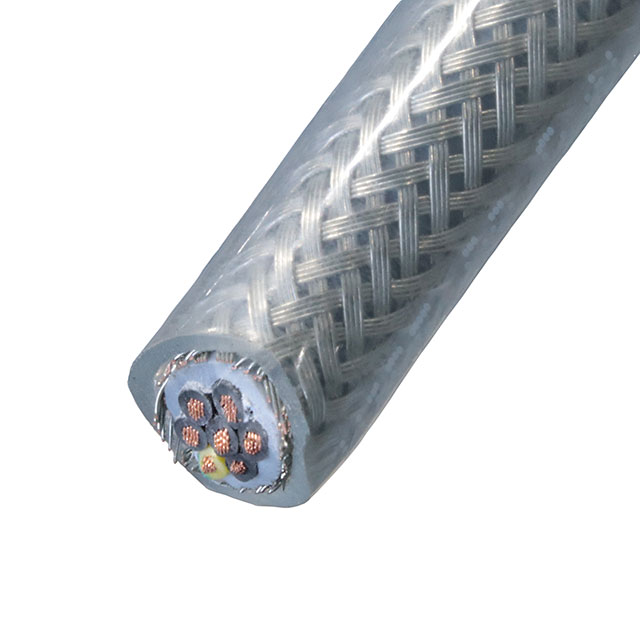

ALPHA WIRE 470075CY CL321	Copper Tinned	21 AWG	Copper Bare	0.007 in 20	0.0374 in	0.95 mm	0.371 in	9.42 mm	7	Poly-Vinyl Chloride (PVC)	Chemical Resistant Oil Resistant UV Resistant	Multi-Conductor	Poly-Vinyl Chloride (PVC)	164 ft	50 m	Braid	300 V	-40 °C	80 C	80 %	Clear
ALPHA WIRE 470075CY CL033	Copper Tinned	21 AWG	Copper Bare	0.007 in 20	0.0374 in	0.95 mm	0.371 in	9.42 mm	7	Poly-Vinyl Chloride (PVC)	Chemical Resistant Oil Resistant UV Resistant	Multi-Conductor	Poly-Vinyl Chloride (PVC)	328.1 ft	100 m	Braid	300 V	-40 °C	80 C	80 %	Clear

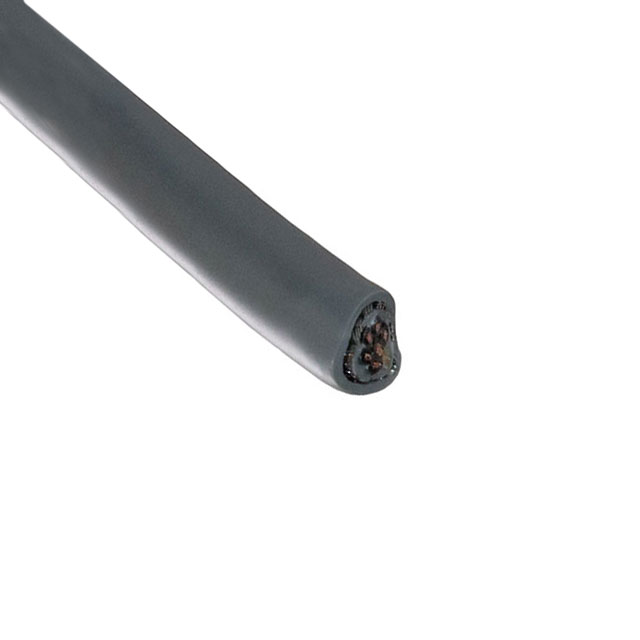

ALPHA WIRE 470075CY GE321	Copper Tinned	21 AWG	Copper Bare	0.007 in 20	0.0374 in	0.95 mm	0.371 in	9.42 mm	7	Poly-Vinyl Chloride (PVC)	Chemical Resistant Oil Resistant UV Resistant	Multi-Conductor	Poly-Vinyl Chloride (PVC)	164 ft	50 m	Braid	300 V	-40 °C	80 C	80 %	Gray
ALPHA WIRE 470075CY GE432	Copper Tinned	21 AWG	Copper Bare	0.007 in 20	0.0374 in	0.95 mm	0.371 in	9.42 mm	7	Poly-Vinyl Chloride (PVC)	Chemical Resistant Oil Resistant UV Resistant	Multi-Conductor	Poly-Vinyl Chloride (PVC)	32.81 ft 65.62 ft 98.43 ft	10 m 20 m 30 m	Braid	300 V	-40 °C	80 C	80 %	Gray	1 m	3.28 ft
ALPHA WIRE 470075CY CL432	Copper Tinned	21 AWG	Copper Bare	0.007 in 20	0.0374 in	0.95 mm	0.371 in	9.42 mm	7	Poly-Vinyl Chloride (PVC)	Chemical Resistant Oil Resistant UV Resistant	Multi-Conductor	Poly-Vinyl Chloride (PVC)	32.81 ft 65.62 ft	10 m 20 m	Braid	300 V	-40 °C	80 C	80 %	Clear	1 m	3.28 ft
