302-R20 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

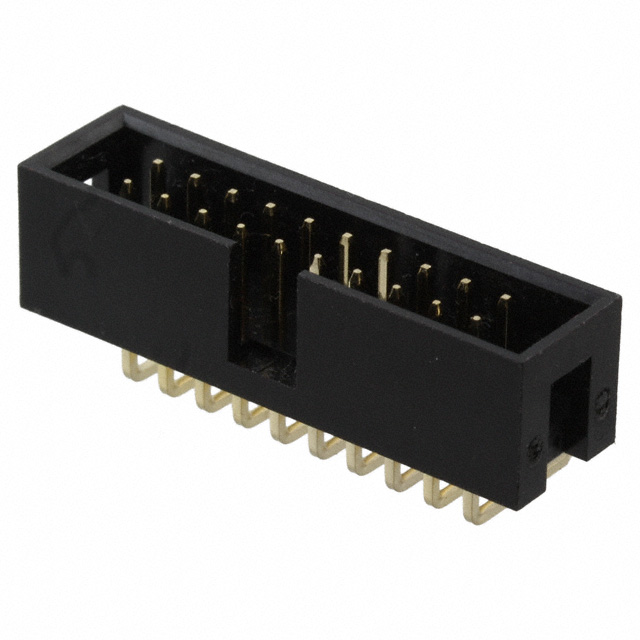

CONN HEADER R/A 20POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Termination | Material Flammability Rating | Insulation Color | Features | Number of Positions | Contact Finish - Post | Contact Type | Contact Shape | Contact Finish Thickness - Mating | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Material | Number of Positions Loaded | Shrouding | Connector Type | Number of Rows [custom] | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Material | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Voltage Rating | Insulation Height | Insulation Height | Fastening Type | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 1.25 µin | 0.032 µm | Solder | UL94 V-0 | Black | Keying Slot | 20 | Gold | Male Pin | Square | Flash | 3 A | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Brass | All | Shrouded - 4 Wall | Header | 2 | 0.122 in | 3.1 mm | Polyester Glass Filled | Right Angle Through Hole | -40 C | 105 ░C | Gold | 250 V | 0.358 " | 9.1 mm | Push-Pull | Board to Cable/Wire |
