19365101 Series
Manufacturer: HARTING
Beta
⌘K
10B EX HOOD SIDE ENTRY, DOUBLE L
| Part | Housing Color | Ingress Protection | Lock Location | Style | Size | Housing Material | Housing Finish | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Connector Type | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Blue | IP65 - Dust Tight Water Resistant | Locking Clip (2) on Base Bottom | Side Entry | 10B | Zinc Die Cast | Powder Coated | -20 ░C | 40 °C | 43 mm | 73 mm | 57 mm | 1.693 " | 2.244 " | 2.874 " | Hood | M20 |

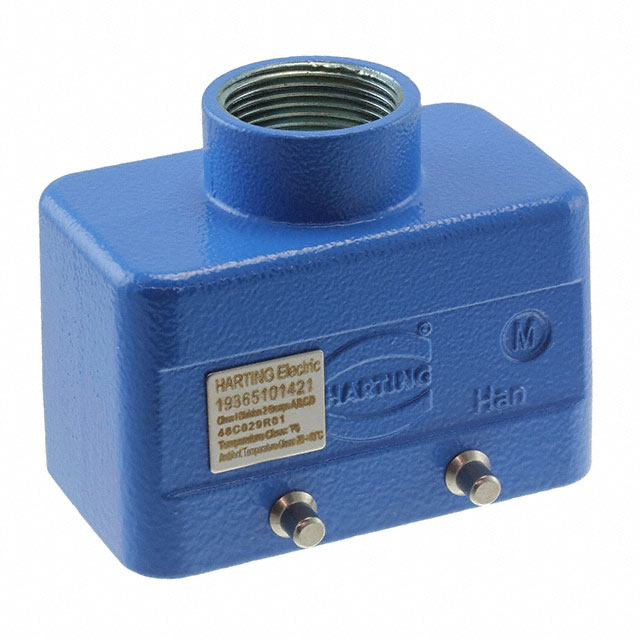

 HARTING | Blue | IP65 - Dust Tight Water Resistant | Locking Clip (2) on Base Bottom | Top Entry | 10B | Zinc Die Cast | Powder Coated | -20 ░C | 40 °C | 43 mm | 93.5 mm | 61 mm | 1.693 " | 2.402 in | 3.681 in | Hood | M25 |

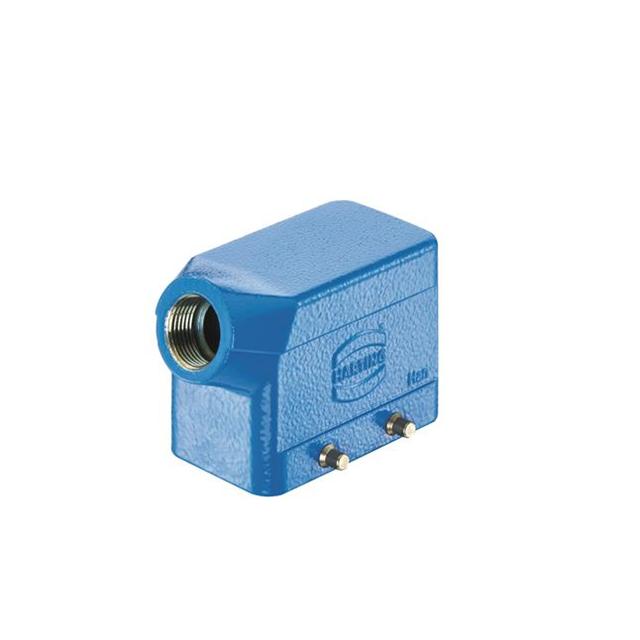

HARTING | Blue | IP65 - Dust Tight Water Resistant | Locking Clip (2) on Base Bottom | Side Entry | 10B | Zinc Die Cast | Powder Coated | -20 ░C | 40 °C | 43 mm | 73 mm | 57 mm | 1.693 " | 2.244 " | 2.874 " | Hood | M25 |
