D4S2UL Series
Manufacturer: Rosenberger
Beta
⌘K

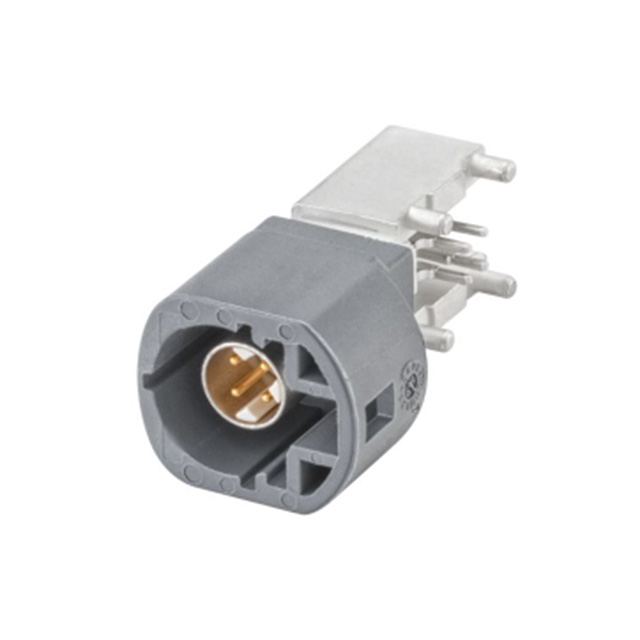

CONN HSD FAKRA PLUG R/A 100OHM
| Part | Body Material | Voltage Rating | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Center Contact Plating | Dielectric Material | Features | Impedance | Connector Style | Frequency - Max [Max] | Number of Ports | Center Contact Material | Fastening Type | Connector Type | Mounting Type | Contact Termination | Shield Termination | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Brass | 100 V | Nickel | -40 C | 105 ░C | 25 | Gold | Liquid Crystal Polymer (LCP) | Code O | 100 Ohms | Fakra HSD® Quadraxial | 2 GHz | 1 | Bronze | Latch Lock | Plug Male Pin | Right Angle Through Hole | Solder | Solder | Green Light |
 Rosenberger | Brass | 100 V | Nickel | -40 C | 105 ░C | 25 | Gold | Liquid Crystal Polymer (LCP) | Code K | 100 Ohms | Fakra HSD® Quadraxial | 2 GHz | 1 | Bronze | Latch Lock | Plug Male Pin | Right Angle Through Hole | Solder | Solder | Curry |
 Rosenberger | Brass | 100 V | Nickel | -40 C | 105 ░C | 25 | Gold | Liquid Crystal Polymer (LCP) | Code G | 100 Ohms | Fakra HSD® Quadraxial | 2 GHz | 1 | Bronze | Latch Lock | Plug Male Pin | Right Angle Through Hole | Solder | Solder | Gray |
 Rosenberger | Brass | 100 V | Nickel | -40 C | 105 ░C | 25 | Gold | Liquid Crystal Polymer (LCP) | Code J | 100 Ohms | Fakra HSD® Quadraxial | 2 GHz | 1 | Bronze | Latch Lock | Plug Male Pin | Right Angle Through Hole | Solder | Solder | Beige |
