VC04 Series

Catalog

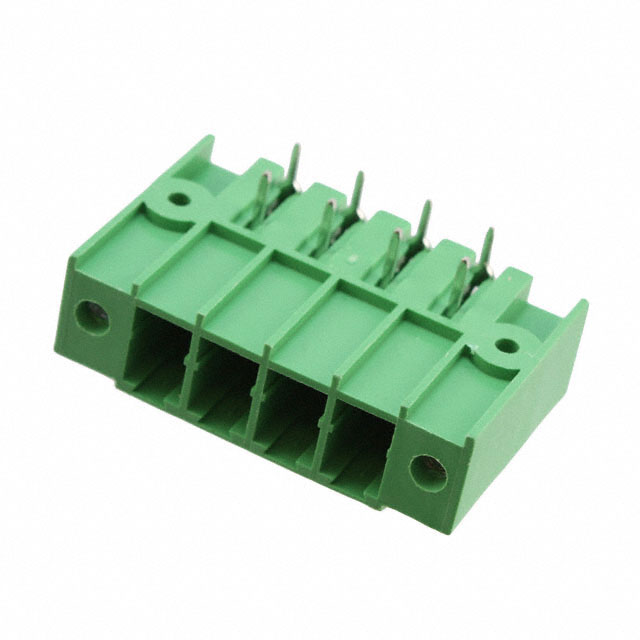

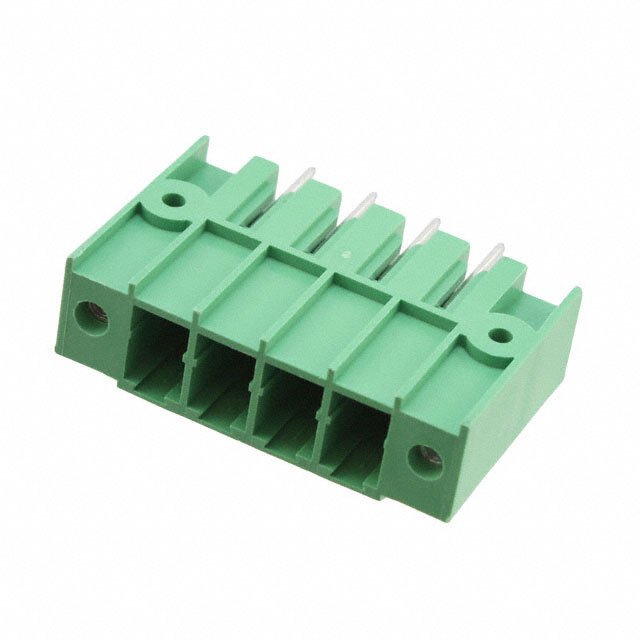

TERM BLOCK HDR 4POS VERT 7.62MM

Part	Material Flammability Rating	Contact Tail Length	Contact Tail Length	Type	Pitch [x]	Pitch [x]	Color	Number of Levels	Features	Contact Material	Termination Style	Header Orientation	Voltage - UL	Contact Mating Finish	Insulation Height	Insulation Height	Positions Per Level	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Housing Material	Current - UL	Mounting Type	Header Orientation
Amphenol Anytek VC0402510000G	UL94 V-0	0.327 in	8.31 mm	Blade Pins Header Shrouded (4 Side)	0.3 in	7.62 mm	Green	1	Mounting Flange	Copper	Quick Connect - 0.187" (4.7mm)	Vertical	300 V	Tin	29.3 mm	1.154 in	4	-40 °C	115 °C	4	Thermoplastic
Amphenol Anytek VC040150C000G				Blade Pins Header Shrouded (4 Side)	0.3 in	7.62 mm	Green	1	Mounting Flange		Solder	90° Right Angle	300 V				4			4		32 A	Through Hole
Amphenol Anytek VC0401510000G	UL94 V-0	0.197 in	5 mm	Blade Pins Header Shrouded (4 Side)	0.3 in	7.62 mm	Green	1	Mating Flange	Copper Alloy	Solder	Vertical	300 V	Tin	29 mm	1.142 in	4	-40 °C	115 °C	4	Thermoplastic Resin	32 A	Through Hole
Amphenol Anytek VC04035A0000G				Blade Pins Header Shrouded (4 Side)	0.3 in	7.62 mm	Green	1			Solder	Vertical	300 V				4			4		32 A	Through Hole
Amphenol Anytek VC04005C0000G	UL94 V-0	0.154 "	3.9 mm	Blade Pins Header Shrouded (4 Side)	0.3 in	7.62 mm	Green	1		Copper	Solder	Right Angle Under Board	300 V	Tin	13.6 mm	0.535 in	4	-40 °C	115 °C	4	Thermoplastic	41 A	Through Hole	90 °
Amphenol Anytek VC0401500000G	UL94 V-0	0.197 in	5 mm	Blade Pins Header Shrouded (4 Side)	0.3 in	7.62 mm	Green	1	Mating Flange	Copper Alloy	Solder	90° Right Angle	300 V	Tin	14.3 mm	0.563 in	4	-40 °C	115 °C	4	Thermoplastic Resin	32 A	Through Hole
Amphenol Anytek VC04015B0000G	UL94 V-0	0.197 in	5 mm	Blade Pins Header Shrouded (4 Side)	0.3 in	7.62 mm	Green	1	Mounting Flange	Copper	Solder	90° Right Angle	300 V	Tin	13.6 mm	0.535 in	4	-40 °C	115 °C	4	Thermoplastic	41 A	Through Hole
Amphenol Anytek VC04015A0000G	UL94 V-0	0.197 in	5 mm	Blade Pins Header Shrouded (4 Side)	0.3 in	7.62 mm	Green	1	Mounting Flange	Copper	Solder	Vertical	300 V	Tin	29.3 mm	1.154 in	4	-40 °C	115 °C	4	Thermoplastic	41 A	Through Hole
