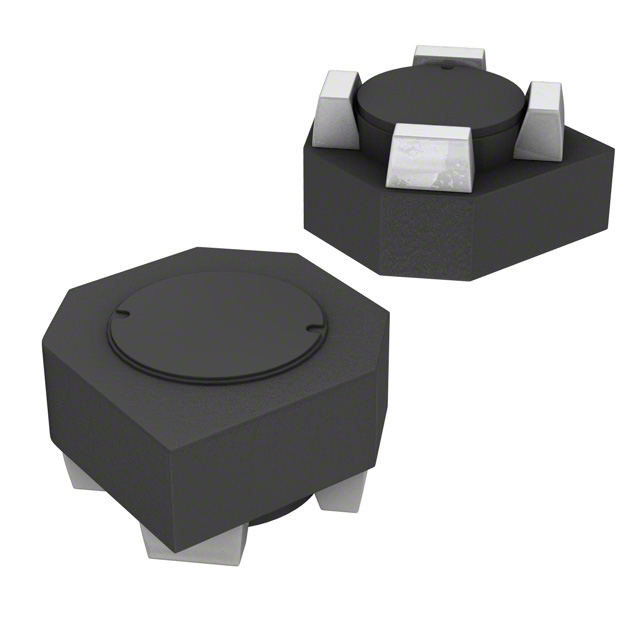

SRU3017 Series

Catalog

INDUCTOR POWER SHIELDED WIREWOUND 4.7UH 30% 100KHZ 10Q-FACTOR FERRITE 1.1A 0.068OHM DCR T/R

Part	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Current Rating (Amps)	Mounting Type	Q @ Freq	Shielding	Current - Saturation (Isat)	Frequency - Self Resonant	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Inductance Frequency - Test	DC Resistance (DCR)	Inductance	Material - Core	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]
Bourns Inc. SRU3017-4R7Y	Drum Core Wirewound	0.079 in	2 mm	30 %	1.1 A	Surface Mount	7.96 MHz 10	Shielded	630 mA	60 MHz	Nonstandard	125 °C	-40 C	100 kHz	68 mOhm	4.7 ÁH	Ferrite	0.138 in	3.5 mm	3.3 mm	0.13 in
Bourns Inc. SRU3017-3R3Y	Drum Core Wirewound	0.079 in	2 mm	30 %	1.45 A	Surface Mount	7.96 MHz 8	Shielded	800 mA	80 MHz	Nonstandard	125 °C	-40 C	100 kHz	55 mOhm	3.3 µH	Ferrite	0.138 in	3.5 mm	3.3 mm	0.13 in
Bourns Inc. SRU3017-220Y	Drum Core Wirewound	0.079 in	2 mm	30 %	600 mA	Surface Mount	2.52 MHz 20	Shielded	300 mA	30 MHz	Nonstandard	125 °C	-40 C	100 kHz	250 mOhm	22 µH	Ferrite	0.138 in	3.5 mm	3.3 mm	0.13 in
Bourns Inc. SRU3017-100Y	Drum Core Wirewound	0.079 in	2 mm	30 %	0.85 A	Surface Mount	7.96 MHz 15	Shielded	470 mA	40 MHz	Nonstandard	125 °C	-40 C	100 kHz	120 mOhm	10 µH	Ferrite	0.138 in	3.5 mm	3.3 mm	0.13 in
Bourns Inc. SRU3017-470Y	Drum Core Wirewound	0.079 in	2 mm	30 %	0.21 A	Surface Mount	2.52 MHz 18	Shielded	360 mA	18 MHz	Nonstandard	125 °C	-40 C	100 kHz	540 mOhm	47 µH	Ferrite	0.138 in	3.5 mm	3.3 mm	0.13 in
