109E5712 Series

Catalog

FAN AXIAL 172X51MM 12VDC WIRE

Part	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Lifetime @ Temp.	Material - Frame	Current Rating (Amps)	Approval Agency	Termination	Features	Width [x]	Fan Type	Voltage - Rated	Bearing Type	Power (Watts)	Weight	Weight	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Noise	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Max]	RPM	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Min]
Sanyo Denki America Inc. 109E5712F501	10.2 VDC	13.8 VDC	Plastic	40000 Hrs	Aluminum	0.68 A	CSA TUV UL	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)	51 mm	Tubeaxial	12 VDC	Ball	8.16 W	1.7 lbs	760 g	Rectangular/Rounded	150 mm	172 mm	47 dB	0.38 in H2O	94.6 Pa	-20 ░C	70 °C	2500 RPM	5.04 mł/min	180 CFM
Sanyo Denki America Inc. 109E5712F502	10.2 VDC	13.8 VDC	Plastic	40000 Hrs	Aluminum	0.68 A	CSA TUV UL	2 Wire Leads		51 mm	Tubeaxial	12 VDC	Ball	8.16 W	1.7 lbs	760 g	Rectangular/Rounded	150 mm	172 mm	47 dB	0.38 in H2O	94.6 Pa	-20 ░C	70 °C	2500 RPM	5.04 mł/min	180 CFM
Sanyo Denki America Inc. 109E5712Y502	10.2 VDC	13.8 VDC	Plastic	40000 Hrs	Aluminum	2.3 A	CSA TUV UL	2 Wire Leads		51 mm	Tubeaxial	12 VDC	Ball	27.6 W	1.7 lbs	760 g	Rectangular/Rounded	150 mm	172 mm	60 dB(A)	0.84 in H2O	209.2 Pa	-20 ░C	60 °C	3800 RPM	7.9 m³/min	282 CFM	60 °C	-4 °F

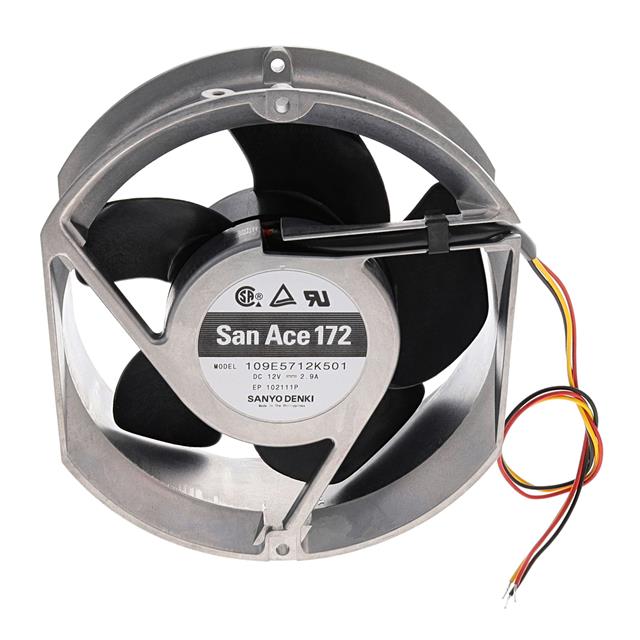

Sanyo Denki America Inc. 109E5712K501	10.2 VDC	13.8 VDC	Plastic	40000 Hrs	Aluminum	2.9 A	CSA TUV UL	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)	51 mm	Tubeaxial	12 VDC	Ball	34.8 W	1.7 lbs	760 g	Rectangular/Rounded	150 mm	172 mm	60 dB(A)	0.976 in H2O	243 Pa	-20 ░C	60 °C	4100 RPM	8.4 mł/min	300 CFM	60 °C	-4 °F
Sanyo Denki America Inc. 109E5712K502	10.2 VDC	13.8 VDC	Plastic	40000 Hrs	Aluminum	2.9 A	CSA TUV UL	2 Wire Leads		51 mm	Tubeaxial	12 VDC	Ball	34.8 W	1.7 lbs	760 g	Rectangular/Rounded	150 mm	172 mm	60 dB(A)	0.976 in H2O	243 Pa	-20 ░C	60 °C	4100 RPM	8.4 mł/min	300 CFM	60 °C	-4 °F

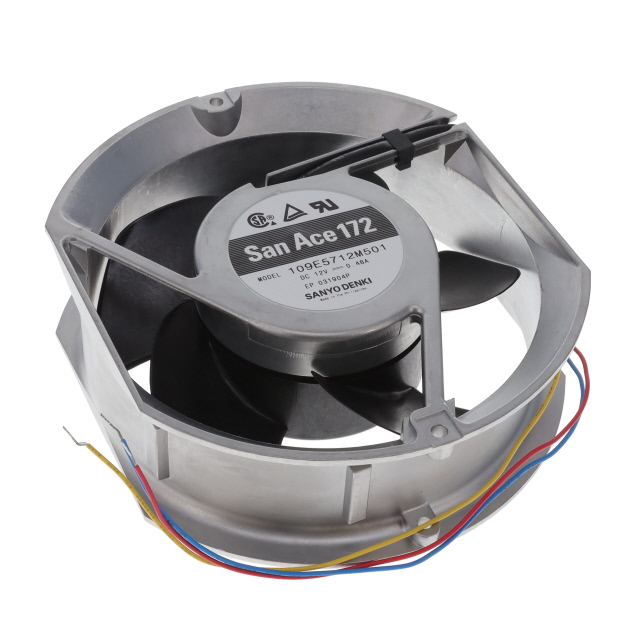

Sanyo Denki America Inc. 109E5712M501	10.2 VDC	13.8 VDC	Plastic	40000 Hrs	Aluminum	480 mA	CSA TUV UL	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)	51 mm	Tubeaxial	12 VDC	Ball	5.76 W	1.7 lbs	760 g	Rectangular/Rounded	150 mm	172 mm	41 dB	0.271 in H2O	67.6 Pa	-20 ░C	70 °C	2000 RPM	4.14 mł/min	148 CFM
Sanyo Denki America Inc. 109E5712M502	10.2 VDC	13.8 VDC	Plastic	40000 Hrs	Aluminum	480 mA	CSA TUV UL	2 Wire Leads		51 mm	Tubeaxial	12 VDC	Ball	5.76 W	1.7 lbs	760 g	Rectangular/Rounded	150 mm	172 mm	41 dB	0.271 in H2O	67.6 Pa	-20 ░C	70 °C	2000 RPM	4.14 mł/min	148 CFM

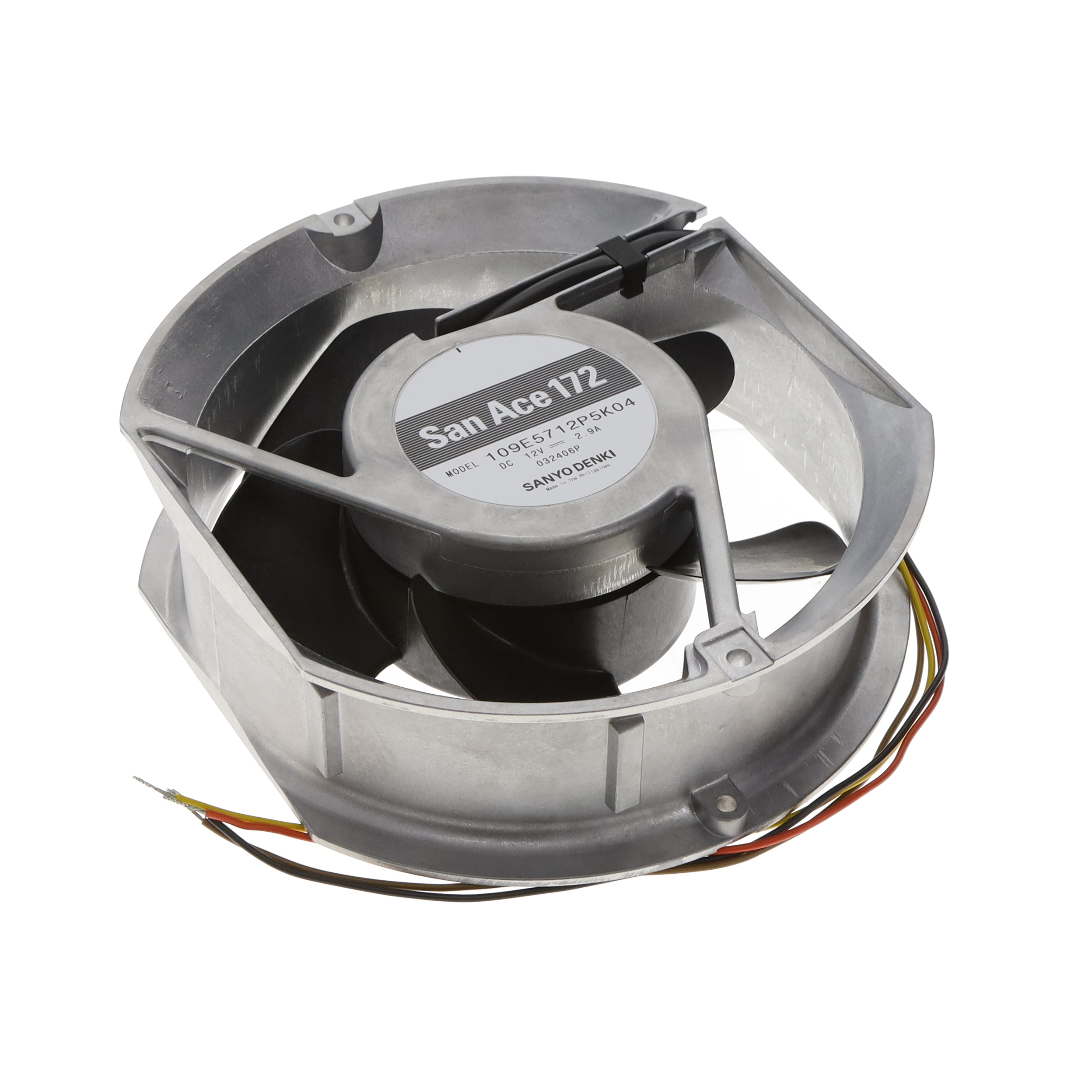

Sanyo Denki America Inc. 109E5712P5K04	10.2 VDC	13.8 VDC	Plastic	40000 Hrs	Aluminum	2.9 A	CSA TUV UL	4 Wire Leads	PWM Control Speed Sensor (Tach)	51 mm	Tubeaxial	12 VDC	Ball	34.8 W	1.7 lbs	760 g	Rectangular/Rounded	150 mm	172 mm	60 dB(A)	0.976 in H2O	243 Pa	-20 ░C	60 °C	4100 RPM	8.4 mł/min	300 CFM	60 °C	-4 °F
Sanyo Denki America Inc. 109E5712H5D01	10.2 VDC	13.8 VDC	Plastic	40000 Hrs	Aluminum	1.2 A	CSA TUV UL	3 Wire Leads	Locked Rotor Sensor	51 mm	Tubeaxial	12 VDC	Ball	14.4 W	1.7 lbs	760 g	Rectangular/Rounded	150 mm	172 mm	52 dB	0.551 in H2O	137.2 Pa	-20 ░C	70 °C		6.33 m³/min	226 CFM
