5423 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

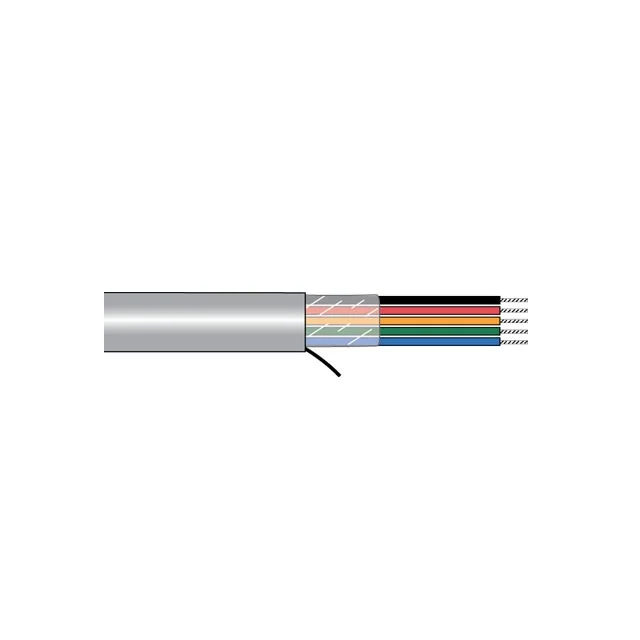

CABLE 3COND 18AWG SLATE 100'
| Part | Usage | Voltage | Ratings | Conductor Insulation | Cable Type | Jacket Color | Features | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Length [x] | Length [x] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Number of Conductors | Conductor Material | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Communication Control | 600 V | ISO 10993 UL Style 2501 | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Slate | Biological Compatibility Rip Cord | -30 ░C | 105 ░C | 16 | 30 AWG | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m | 1.6 mm | 0.063 in | 9.37 mm | 0.369 " | 18 AWG | 3 | Copper Tinned | ||
 ALPHA WIRE | Communication Control | 600 V | ISO 10993 UL Style 2501 | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Slate | Biological Compatibility Rip Cord | -30 ░C | 105 ░C | 16 | 30 AWG | Poly-Vinyl Chloride (PVC) | 1.6 mm | 0.063 in | 9.37 mm | 0.369 " | 18 AWG | 3 | Copper Tinned | 304.8 m | 1000 ft |
