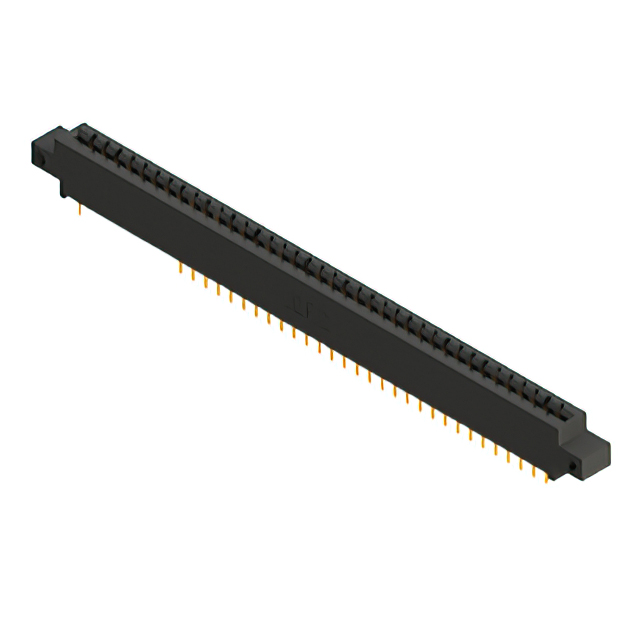

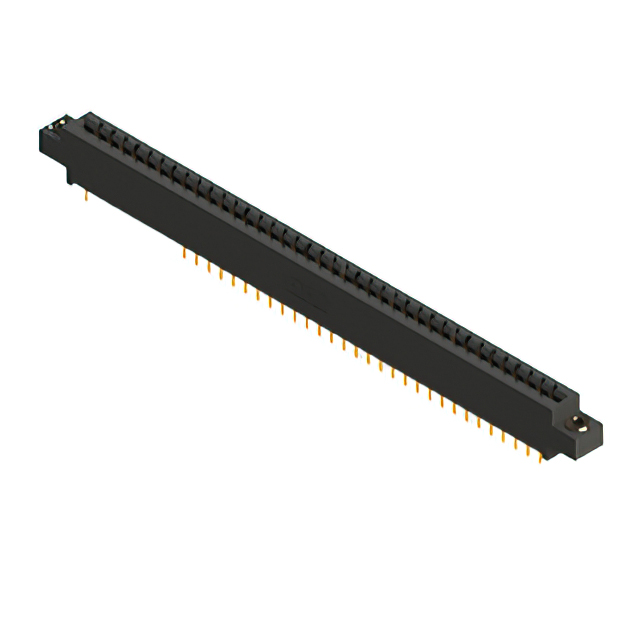

887-076 Series
Manufacturer: EDAC Inc.
Catalog
CONN EDGE DUAL FMALE 76POS 0.156
...
| Part | Contact Finish | Color | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Termination | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Read Out | Gender | Contact Material | Material - Insulation | Contact Type | Termination Rows | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Card Type | Mounting Type | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Gold | Black | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Wire Wrap | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Dual | Female | Copper Alloy | Polyphenylene Sulfide (PPS) | Cantilever | 2 | 76 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 38 | 125 °C | -40 °C | 2 | Non Specified - Dual Edge | Through Hole | ||
 EDAC Inc. | Gold | Black | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Solder | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Dual | Female | Copper Alloy | Polyphenylene Sulfide (PPS) | Cantilever | 2 | 76 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 38 | 125 °C | -40 °C | 2 | Non Specified - Dual Edge | Through Hole | ||
 EDAC Inc. | Gold | Black | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Solder | M3 Threaded Insert Top Mount Opening | Dual | Female | Copper Alloy | Polyphenylene Sulfide (PPS) | Cantilever | 2 | 76 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 38 | 125 °C | -40 °C | 2 | Non Specified - Dual Edge | Through Hole | ||||
 EDAC Inc. | Gold | Black | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Solder | 4-40 Flush Mount Threaded Insert Top Opening | Dual | Female | Copper Alloy | Polyphenylene Sulfide (PPS) | Cantilever | 2 | 76 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 38 | 125 °C | -40 °C | 2 | Non Specified - Dual Edge | Through Hole | ||||
 EDAC Inc. | Gold | Black | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Solder | 4-40 Flush Mount Threaded Insert Top Opening | Dual | Female | Copper Alloy | Polyphenylene Sulfide (PPS) | Cantilever | 2 | 76 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 38 | 125 °C | -40 °C | 2 | Non Specified - Dual Edge | Through Hole | ||||
 EDAC Inc. | Gold | Black | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Solder | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Dual | Female | Copper Alloy | Polyphenylene Sulfide (PPS) | Cantilever | 2 | 76 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 38 | 125 °C | -40 °C | 2 | Non Specified - Dual Edge | Through Hole | ||
 EDAC Inc. | Gold | Black | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Solder | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Dual | Female | Copper Alloy | Polyphenylene Sulfide (PPS) | Cantilever | 2 | 76 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 38 | 125 °C | -40 °C | 2 | Non Specified - Dual Edge | Through Hole | ||
 EDAC Inc. | Gold | Black | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Solder | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Dual | Female | Copper Alloy | Polyphenylene Sulfide (PPS) | Cantilever | 2 | 76 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 38 | 125 °C | -40 °C | 2 | Non Specified - Dual Edge | Through Hole Right Angle | ||
 EDAC Inc. | Gold | Black | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Wire Wrap | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | Dual | Female | Copper Alloy | Polyphenylene Sulfide (PPS) | Cantilever | 2 | 76 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 38 | 125 °C | -40 °C | 2 | Non Specified - Dual Edge | Through Hole | ||
 EDAC Inc. | Gold | Black | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Solder | Side Mount Opening Unthreaded | Dual | Female | Copper Alloy | Polyphenylene Sulfide (PPS) | Cantilever | 2 | 76 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 38 | 125 °C | -40 °C | 2 | Non Specified - Dual Edge | Through Hole | 3.25 mm | 0.128 in |
