Han A Series
Manufacturer: HARTING
Beta
⌘K
HEAVY DUTY CONNECTOR, PG16, BASE, PANEL MOUNT, ALUMINUM BODY, 1 LEVER, 10A
| Part | Ingress Protection | Housing Material | Size | Housing Finish | Housing Color | Features | Lock Location | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Thread Size | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Style | Specifications | Accessory Type | For Use With/Related Products | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | IP65 - Dust Tight Water Resistant | Aluminum Die Cast | 10 A | Powder Coated | Gray | Cover | Locking Clip (1) on Base Bottom | Base - Box Mount | 125 °C | -40 C | PG16 | 50 mm | 2.5 " | 2.047 " | 1.969 in | 52 mm | 63.5 mm | Side Entry | |||||||

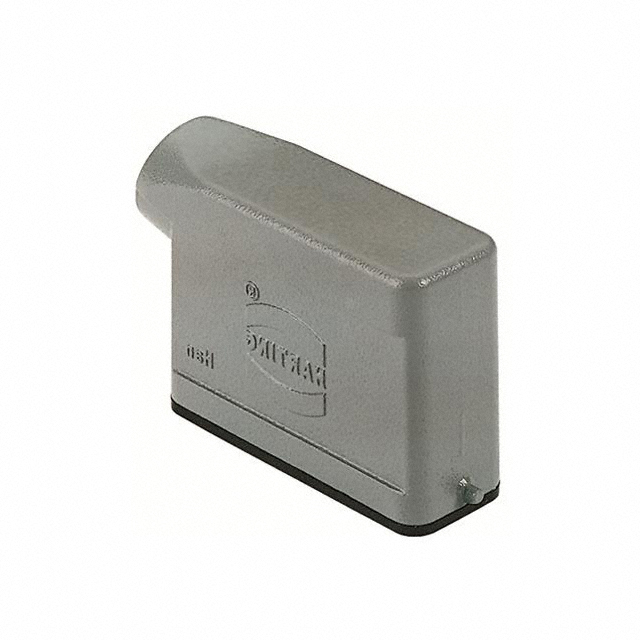

 HARTING | IP65 - Dust Tight Water Resistant | Aluminum Die Cast | 16 A | Powder Coated | Gray | Locking Clip (1) on Base Bottom | Hood | 125 °C | -40 C | PG16 | 29.5 mm | 3.13 " | 2.421 " | 1.161 in | 61.5 mm | 79.5 mm | Side Entry | ||||||||

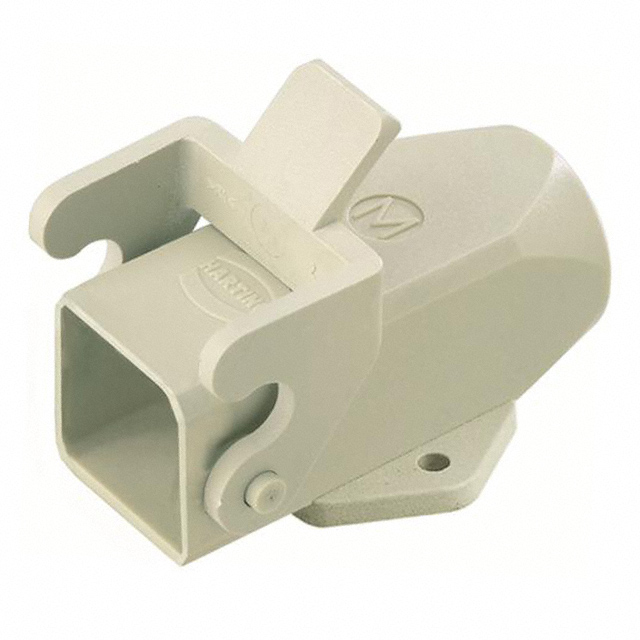

 HARTING | IP44 | Polyamide (PA) Nylon | 3 A | Gray | Cover EMC Resistant | Locking Clip (1) on Base Bottom | Base - Panel Mount 90° | 125 °C | -40 C | M20 | 40 mm | 1.102 " | 1.055 " | 1.575 " | 26.8 mm | 28 mm | Side Entry | ||||||||
 HARTING | IP44 | Zinc Die Cast | 3 A | Powder Coated | Gray | Locking Clip (1) on Base Bottom | Base - Panel Mount 90° | 125 °C | -40 C | M20 | 40 mm | 1.102 " | 1.071 in | 1.575 " | 27.2 mm | 28 mm | Side Entry | ||||||||

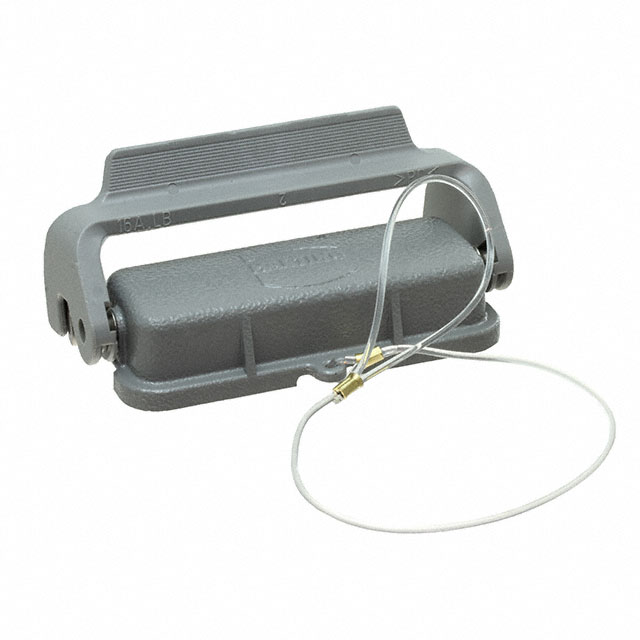

 HARTING | Locking Clip (1) | Cover with Retaining Cord | Han® 16A Housings | ||||||||||||||||||||||
 HARTING | IP65 - Dust Tight Water Resistant | Aluminum Die Cast | 32 A | Powder Coated | Gray | Locking Clip (1) on Hood | Hood | 125 °C | -40 C | PG29 | 2.205 in | 3.11 in | 3.228 " | Side Entry | 56 mm | 82 mm | 79 mm | ||||||||

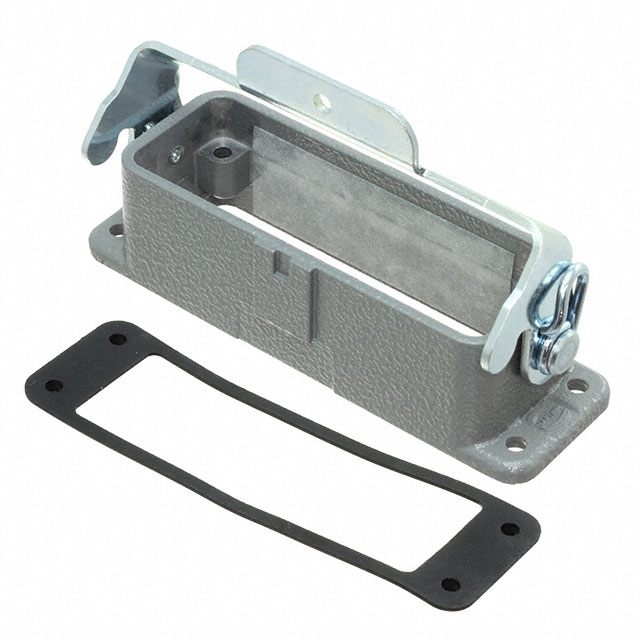

 HARTING | IP65 - Dust Tight Water Resistant | Aluminum Die Cast | 16 A | Powder Coated | Gray | Locking Clip (1) on Base Bottom | Base - Panel Mount | 125 °C | -40 C | 29.5 mm | 3.78 in | 1.024 " | 1.161 in | 26 mm | 96 mm | Bottom Entry | |||||||||
 HARTING | Locking Pegs (2) | Cover with Retaining Cord | Han® 16A Bases | IP65 - Dust Tight Water Resistant | |||||||||||||||||||||
 HARTING | IP44 | Polycarbonate (PC) | 3 A | Black | Locking Clip (1) on Base Bottom | Base - Panel Mount 90° | 125 °C | -40 C | M20 | 40 mm | 1.102 " | 1.055 " | 1.575 " | 26.8 mm | 28 mm | Side Entry | |||||||||
 HARTING | PG13.5 Thread | Adapter Cable Gland |
