767094 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

MICT,RECPT,152,ASY,PDNI,EXTD ROHS COMPLIANT: NO

Part	Number of Positions	Number of Rows [custom]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]	Pitch	Pitch	Features	Contact Finish	Mated Stacking Heights	Connector Type

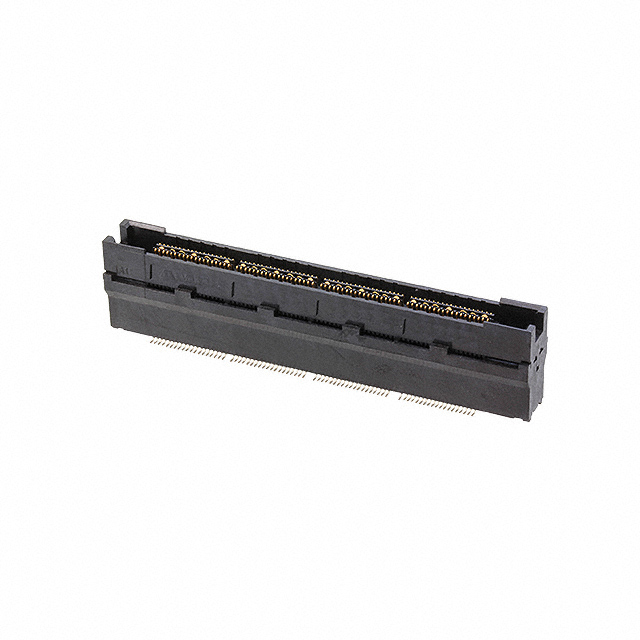

TE Connectivity AMP Connectors 767094-4	152	2	Surface Mount	30 Áin	0.76 Ám	0.587 in	14.91 mm	0.64 mm	0.025 in	Board Guide Ground Bus (Plane)	Palladium-Nickel	15.62 mm 18 mm 20 mm 21.6 mm 27 mm 27.8 mm 29 mm 31.9 mm	Receptacle Center Strip Contacts
TE Connectivity AMP Connectors 767094-2	76	2	Surface Mount	30 Áin	0.76 Ám	0.587 in	14.91 mm	0.64 mm	0.025 in	Board Guide Ground Bus (Plane)	Palladium-Nickel	15.62 mm 18 mm 20 mm 21.6 mm 27 mm 27.8 mm 29 mm 31.9 mm	Receptacle Center Strip Contacts
TE Connectivity AMP Connectors 767094-1	38	2	Surface Mount	30 Áin	0.76 Ám	0.587 in	14.91 mm	0.64 mm	0.025 in	Board Guide Ground Bus (Plane)	Palladium-Nickel	15.62 mm 18 mm 20 mm 21.6 mm 27 mm 27.8 mm 29 mm 31.9 mm	Receptacle Center Strip Contacts

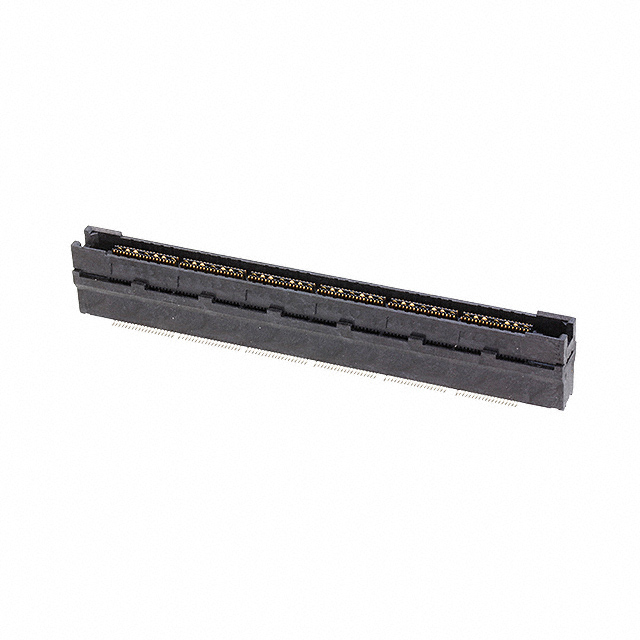

TE Connectivity AMP Connectors 767094-6	228	2	Surface Mount	30 Áin	0.76 Ám	0.587 in	14.91 mm	0.64 mm	0.025 in	Board Guide Ground Bus (Plane)	Palladium-Nickel	15.62 mm 18 mm 20 mm 21.6 mm 27 mm 27.8 mm 29 mm 31.9 mm	Receptacle Center Strip Contacts
TE Connectivity AMP Connectors 767094-5	190	2	Surface Mount	30 Áin	0.76 Ám	0.587 in	14.91 mm	0.64 mm	0.025 in	Board Guide Ground Bus (Plane)	Palladium-Nickel	15.62 mm 18 mm 20 mm 21.6 mm 27 mm 27.8 mm 29 mm 31.9 mm	Receptacle Center Strip Contacts

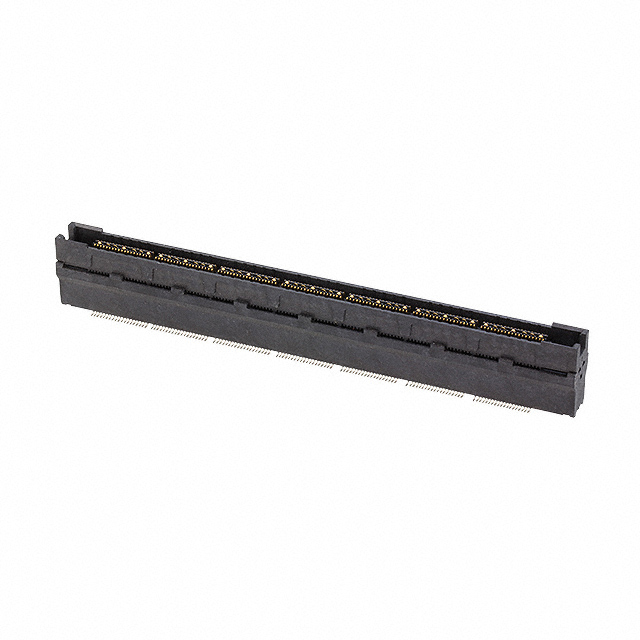

TE Connectivity AMP Connectors 767094-7	266	2	Surface Mount	30 Áin	0.76 Ám	0.587 in	14.91 mm	0.64 mm	0.025 in	Board Guide Ground Bus (Plane)	Palladium-Nickel	15.62 mm 18 mm 20 mm 21.6 mm 27 mm 27.8 mm 29 mm 31.9 mm	Receptacle Center Strip Contacts
