GRPB022 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 4POS 1.27MM

Part	Contact Finish Thickness - Post	Connector Type	Insulation Material	Contact Finish - Post	Style	Mounting Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Contact Material	Number of Positions Loaded	Fastening Type	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Number of Rows [custom]	Insulation Height [z]	Insulation Height [z]	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Type	Termination	Contact Length - Post [x]	Contact Length - Post	Contact Shape	Insulation Height	Insulation Height	Contact Length - Post	Features

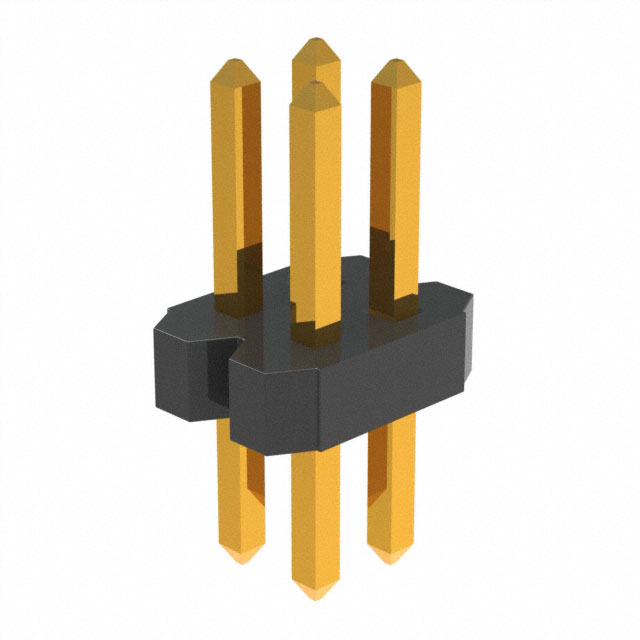

Sullins Connector Solutions GRPB022VWVN-RC	Flash	Header	Nylon 9T Polyamide (PA9T)	Gold	Board to Board Cable	Through Hole	4	-40 C	105 ░C	1.27 mm	0.05 in	Brass	All	Push-Pull	3 mm	0.118 in	0.248 in	6.3 mm	UL94 V-0	2	1 mm	0.039 in	0.05 in	1.27 mm	Unshrouded	Flash	Gold	Male Pin	Solder	0.091 "	2.3 mm	Square

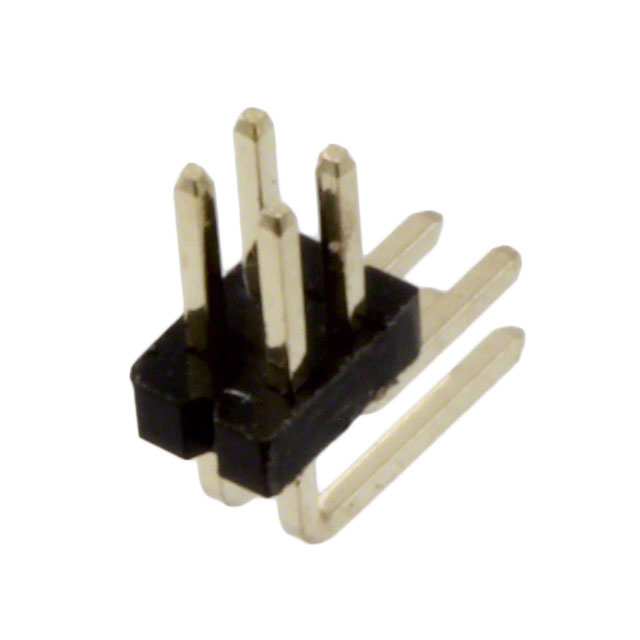

Sullins Connector Solutions GRPB022MWCN-RC	Flash	Header	Nylon 9T Polyamide (PA9T)	Gold	Board to Board Cable	Right Angle Through Hole	4	-40 C	105 ░C	1.27 mm	0.05 in	Brass	All	Push-Pull	3 mm	0.118 in			UL94 V-0	2			0.05 in	1.27 mm	Unshrouded	Flash	Gold	Male Pin	Solder		2.5 mm	Square	0.134 in	3.4 mm	0.098 in
Sullins Connector Solutions GRPB022VWQS-M81RC	Flash	Header	Nylon 9T Polyamide (PA9T)	Gold	Board to Board Cable	Surface Mount	4	-40 C	105 ░C	1.27 mm	0.05 in	Brass	All	Push-Pull	3 mm	0.118 in			UL94 V-0	2	1 mm	0.039 in	0.05 in	1.27 mm	Unshrouded	Flash	Gold	Male Pin	Solder			Square				Pick and Place

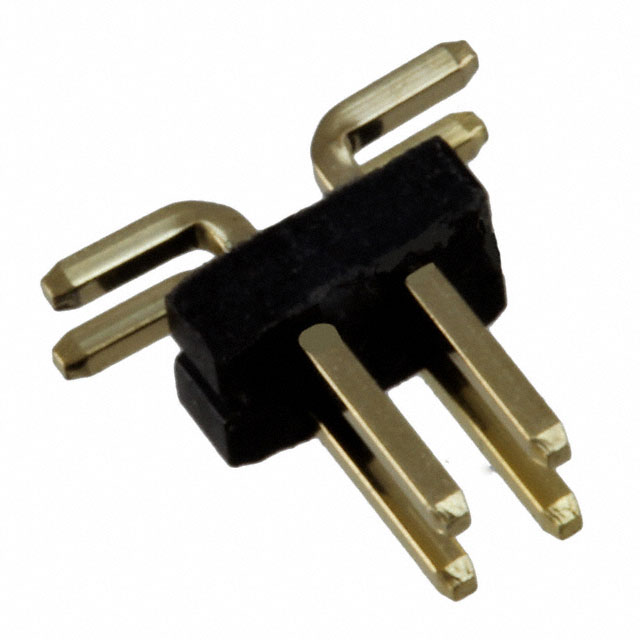

Sullins Connector Solutions GRPB022VWQS-RC	Flash	Header	Nylon 9T Polyamide (PA9T)	Gold	Board to Board Cable	Surface Mount	4	-40 C	105 ░C	1.27 mm	0.05 in	Brass	All	Push-Pull	3 mm	0.118 in			UL94 V-0	2	1 mm	0.039 in	0.05 in	1.27 mm	Unshrouded	Flash	Gold	Male Pin	Solder			Square
Sullins Connector Solutions GRPB022VWQP-RC	Flash	Header	Nylon 9T Polyamide (PA9T)	Gold	Board to Board Cable	Surface Mount	4	-40 C	105 ░C	1.27 mm	0.05 in	Brass	All	Push-Pull	3 mm	0.118 in			UL94 V-0	2	1 mm	0.039 in	0.05 in	1.27 mm	Unshrouded	Flash	Gold	Male Pin	Solder			Square				Board Guide
