UF180 Series
Manufacturer: Mechatronics Fan Group
Beta
⌘K

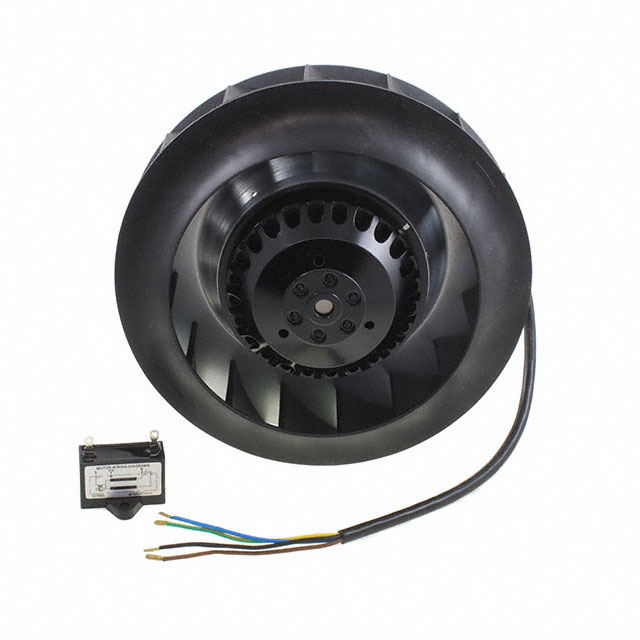

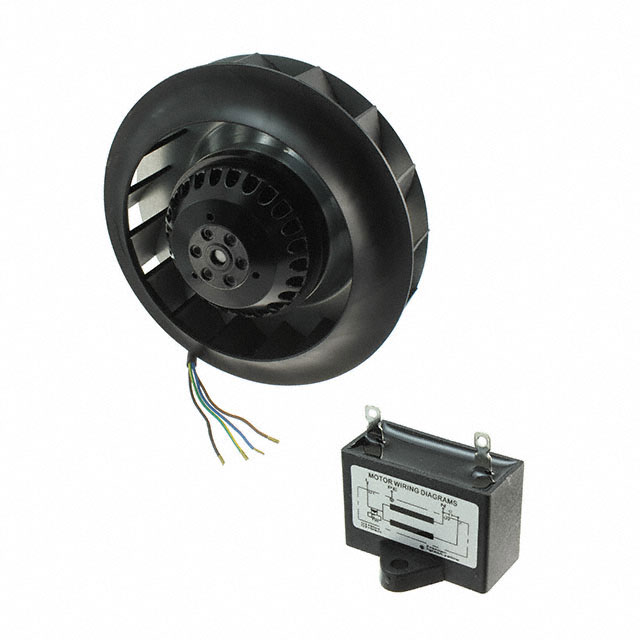

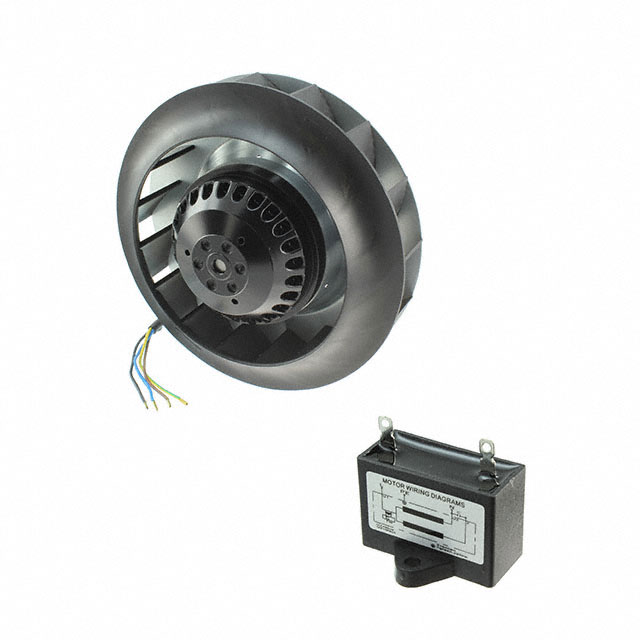

IMPELLER 182X55MM 115VAC
| Part | Material - Blade | Material - Frame | Current Rating (Amps) | RPM | Size / Dimension [diameter] | Size / Dimension | Static Pressure | Static Pressure | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Approval Agency | Bearing Type | Noise | Air Flow | Air Flow | Features | Weight | Weight | Width | Fan Type | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mechatronics Fan Group | Polyamide (PA) Nylon | Aluminum | 0.7 A | 2800 RPM | 182 mm | Round | 348.7 Pa | 1.4 in H2O | 4 Wire Leads | -40 C | 50 °C | -40 °C | 50 °C | 78 W | CE cETL ETL TUV | Ball | 67 dB | 8.12 m³/min | 290 CFM | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | 2.7 lbs | 1.2 kg | 55 mm | Motorized Impellers | 115 VAC |
 Mechatronics Fan Group | Polyamide (PA) Nylon | Aluminum | 0.34 A | 2800 RPM | 182 mm | Round | 348.7 Pa | 1.4 in H2O | 4 Wire Leads | -40 C | 50 °C | -40 °C | 50 °C | 78 W | CE cETL ETL TUV | Ball | 67 dB | 8.12 m³/min | 290 CFM | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | 2.7 lbs | 1.2 kg | 55 mm | Motorized Impellers | 230 VAC |
 Mechatronics Fan Group | Polyamide (PA) Nylon | Aluminum | 0.34 A | 2800 RPM | 182 mm | Round | 348.7 Pa | 1.4 in H2O | 4 Wire Leads | -40 C | 50 °C | -40 °C | 50 °C | 78 W | CE cETL ETL TUV | Ball | 67 dB | 7.41 m³/min | 264.6 CFM | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | 2.6 lbs | 1.2 kg | 55 mm | Motorized Impellers | 230 VAC |
