6382 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

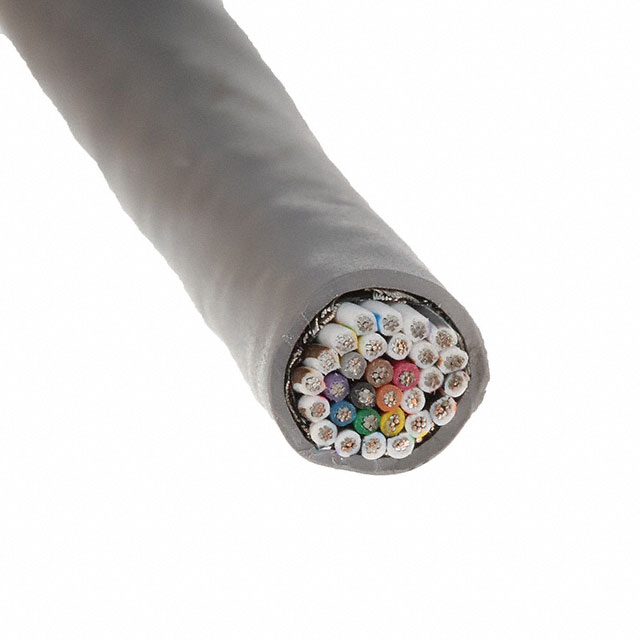

MULTI-PAIR 30COND 22AWG 100'
| Part | Shield Material | Shield Coverage | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Ratings | Jacket (Insulation) Material | Features | Voltage | Cable Type | Shield Type | Number of Conductors | Jacket Color | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material | Length [x] | Length [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | UL Style 2464 | Poly-Vinyl Chloride (PVC) | Drain Wire | 300 VDC | Multi-Pair | Braid Foil | 30 | Slate | 80 °C | -20 ░C | Copper Tinned | 100 ft | 30.5 m | 11.86 mm | 0.467 " | 22 AWG | 0.813 mm | 0.032 in | ||
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | UL Style 2464 | Poly-Vinyl Chloride (PVC) | Drain Wire | 300 VDC | Multi-Pair | Braid Foil | 30 | Slate | 80 °C | -20 ░C | Copper Tinned | 11.86 mm | 0.467 " | 22 AWG | 0.813 mm | 0.032 in | 304.8 m | 1000 ft |
