3126 Series

Catalog

CONN RING CIRC 16-22AWG #10

Part	Width - Outer Edges [y]	Width - Outer Edges [y]	Contact Material	Termination	Features	Length - Overall [x]	Length - Overall	Wire Gauge [Max]	Wire Gauge [Min]	Thickness	Thickness	Terminal Type	Contact Finish	Mounting Type	Stud/Tab Size	Insulation	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]

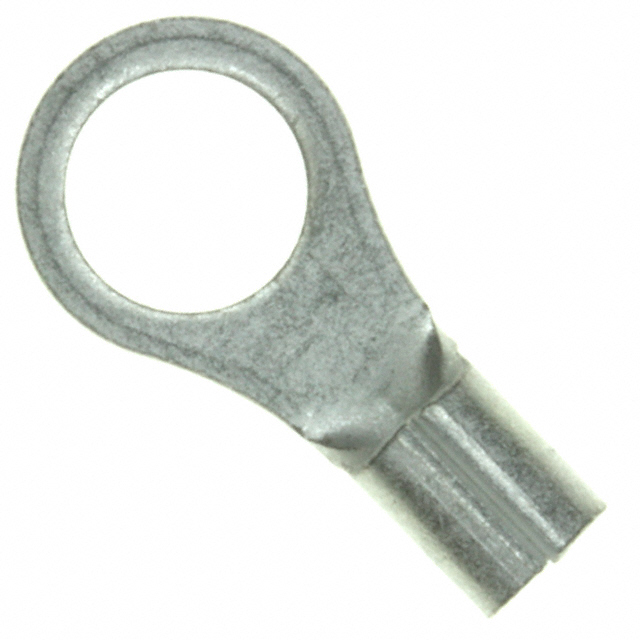

TE Connectivity Raychem Cable Protection 31266	7.14 mm	0.281 in	Copper	Crimp	Serrated Termination	0.574 in	14.58 mm	22 AWG	16 AWG	0.031 in	0.79 mm	Circular	Tin	Free Hanging (In-Line)	10 Stud	Non-Insulated
TE Connectivity Raychem Cable Protection 31262	7.14 mm	0.281 in	Copper	Crimp	Serrated Termination	0.574 in	14.58 mm	22 AWG	16 AWG	0.031 in	0.79 mm	Circular	Tin	Free Hanging (In-Line)	4 Stud	Non-Insulated

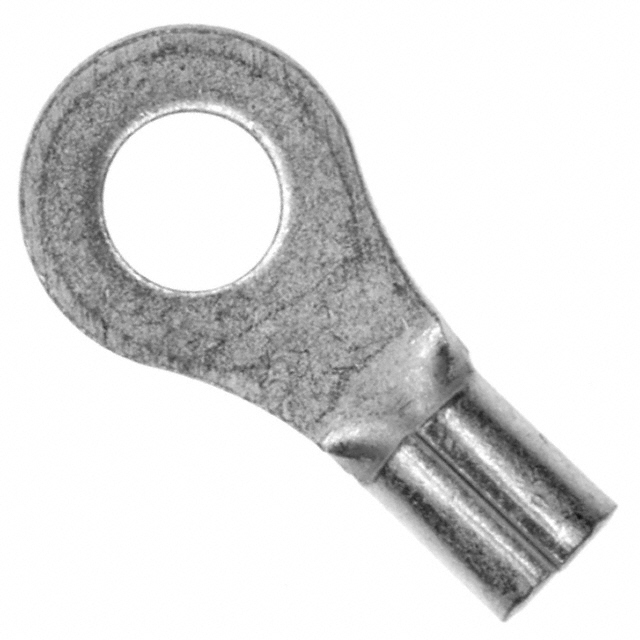

TE Connectivity Raychem Cable Protection 31264	7.14 mm	0.281 in	Copper	Crimp	Serrated Termination	0.574 in	14.58 mm	22 AWG	16 AWG	0.031 in	0.79 mm	Circular	Tin	Free Hanging (In-Line)	6 Stud	Non-Insulated
TE Connectivity Raychem Cable Protection 31269	7.14 mm	0.281 in	Copper	Crimp	Serrated Termination	0.728 in	18.49 mm	22 AWG	16 AWG	0.031 in	0.79 mm	Circular	Tin	Free Hanging (In-Line)	6 Stud	Non-Insulated	2.03 mm	3.18 mm	0.125 "	0.08 in
