TPS73801-SEP Series

Radiation-tolerant, 2.2-V to 20-V input, 1-A adjustable LDO regulator in a plastic package

Catalog

Radiation-tolerant, 2.2-V to 20-V input, 1-A adjustable LDO regulator in a plastic package

Part	Mounting Type	Voltage - Output (Max) [Max]	Voltage - Output (Min/Fixed)	Voltage - Input (Max) [Max]	Current - Supply (Max) [Max]	Package / Case	Control Features	Current - Quiescent (Iq)	Protection Features	Output Type	Current - Output	Output Configuration	Voltage Dropout (Max) [Max]	PSRR	Operating Temperature [Max]	Operating Temperature [Min]	Number of Regulators	Supplier Device Package
Texas Instruments TPS73801MDCQPSEP	Surface Mount	20 V	1.21 V	20 V	80 mA	SOT-223-6	Enable	1.5 mA	Over Current Over Temperature Reverse Polarity	Adjustable	1 A	Positive	0.4 V	63 dB	125 ¯C	-55 °C	1	SOT-223-6
Texas Instruments TPS73801MDCQTPSEP	Surface Mount	20 V	1.21 V	20 V	80 mA	SOT-223-6	Enable	1.5 mA	Over Current Over Temperature Reverse Polarity	Adjustable	1 A	Positive	0.4 V	63 dB	125 ¯C	-55 °C	1	SOT-223-6

Catalog

Radiation-tolerant, 2.2-V to 20-V input, 1-A adjustable LDO regulator in a plastic package

Key Features

• VID V62/18616Radiation hardenedSEL, SEB, and SEGR immune up to LET = 43 MeV-cm2/mgSET and SEFI characterized up to LET = 43 MeV-cm2/mgTID assured for every wafer lot up to 20 krad(Si)TID characterized up to 50 krad(Si)Space enhanced plasticAu bondwire and NiPdAu lead finishEnhanced mold compound for low outgassingOne fabrication, assembly, and test siteExtended product life cycleExtended product change notificationProduct traceabilityOptimized for fast transient responseOutput current: 1 ADropout voltage: 300 mVLow noise: 45 µVRMS(10 Hz to 100 kHz)1-mA quiescent currentNo protection diodes neededControlled quiescent current in dropoutAdjustable output voltage: 1.21 V to 20 VLess than 1-µA quiescent current in shutdownStable with 10-µF output capacitorStable with ceramic capacitorsReverse-battery protectionNo reverse currentThermal limitingVID V62/18616Radiation hardenedSEL, SEB, and SEGR immune up to LET = 43 MeV-cm2/mgSET and SEFI characterized up to LET = 43 MeV-cm2/mgTID assured for every wafer lot up to 20 krad(Si)TID characterized up to 50 krad(Si)Space enhanced plasticAu bondwire and NiPdAu lead finishEnhanced mold compound for low outgassingOne fabrication, assembly, and test siteExtended product life cycleExtended product change notificationProduct traceabilityOptimized for fast transient responseOutput current: 1 ADropout voltage: 300 mVLow noise: 45 µVRMS(10 Hz to 100 kHz)1-mA quiescent currentNo protection diodes neededControlled quiescent current in dropoutAdjustable output voltage: 1.21 V to 20 VLess than 1-µA quiescent current in shutdownStable with 10-µF output capacitorStable with ceramic capacitorsReverse-battery protectionNo reverse currentThermal limiting

Description

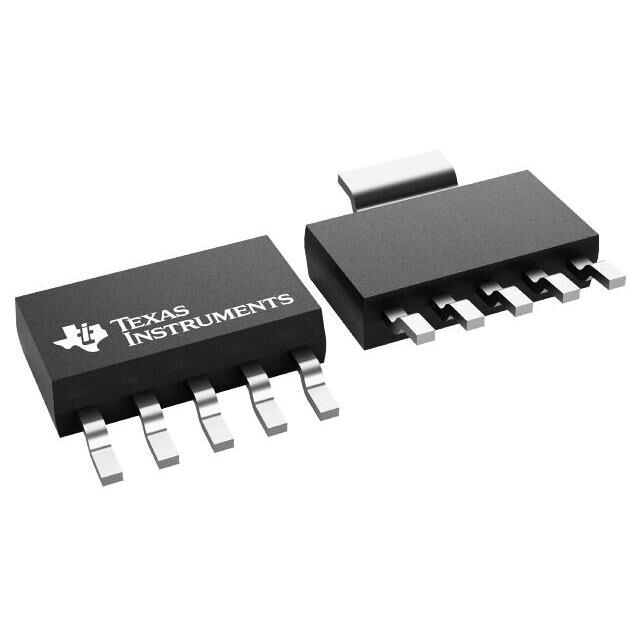

The TPS73801-SEP is a low-dropout (LDO) regulator optimized for fast transient response. The device can supply 1 A of output current with a dropout voltage of 300 mV. Operating quiescent current is 1 mA and drops to less than 1 µA in shutdown. Compared to many other regulators, quiescent current is well controlled and does not rise in dropout. In addition to fast transient response, a very low output noise makes the TPS73801-SEP regulator ideal for sensitive RF supply applications. Output voltage range is from 1.21 to 20 V and is stable with use of output capacitors as low as 10 µF. Small ceramic capacitors can be used without the necessary addition of ESR. Internal protection circuitry includes reverse-battery protection, current limiting, thermal limiting, and reverse-current protection. The TPS73801-SEP regulator is available with an adjustable 1.21-V reference voltage and in the 6-pin TO-223 (DCQ) package. The TPS73801-SEP is a low-dropout (LDO) regulator optimized for fast transient response. The device can supply 1 A of output current with a dropout voltage of 300 mV. Operating quiescent current is 1 mA and drops to less than 1 µA in shutdown. Compared to many other regulators, quiescent current is well controlled and does not rise in dropout. In addition to fast transient response, a very low output noise makes the TPS73801-SEP regulator ideal for sensitive RF supply applications. Output voltage range is from 1.21 to 20 V and is stable with use of output capacitors as low as 10 µF. Small ceramic capacitors can be used without the necessary addition of ESR. Internal protection circuitry includes reverse-battery protection, current limiting, thermal limiting, and reverse-current protection. The TPS73801-SEP regulator is available with an adjustable 1.21-V reference voltage and in the 6-pin TO-223 (DCQ) package.
