3464C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

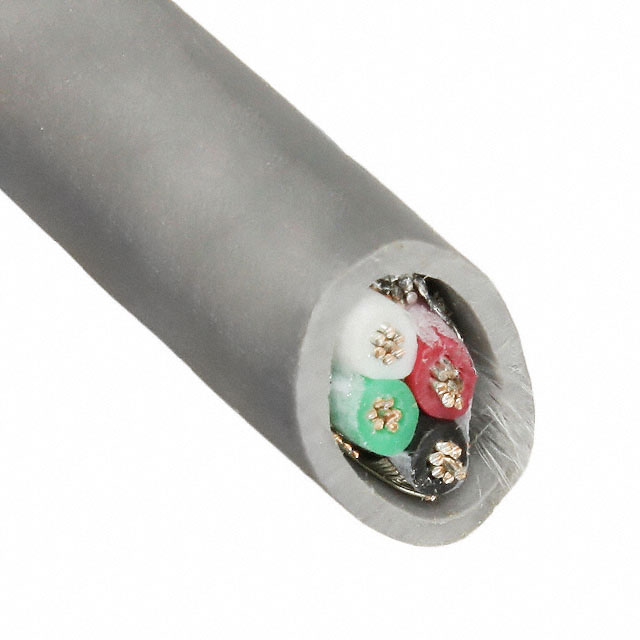

CABLE 4CON 28AWG SLATE SHLD 100'
| Part | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Conductor Insulation | Shield Material | Voltage | Wire Gauge | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Conductor Material | Shield Type | Jacket (Insulation) Material | Features | Shield Coverage | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 0.889 mm | 0.035 in | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Aluminum | 300 V | 28 AWG | -20 C | 80 C | 36 AWG | 7 | 4 | Copper Tinned | Braid Foil | Poly-Vinyl Chloride (PVC) | Drain Wire | 100 % | Slate | 0.181 in | 4.6 mm | 30.5 m | 100 ft | ||
ALPHA WIRE | 0.889 mm | 0.035 in | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Aluminum | 300 V | 28 AWG | -20 C | 80 C | 36 AWG | 7 | 4 | Copper Tinned | Braid Foil | Poly-Vinyl Chloride (PVC) | Drain Wire | 100 % | Slate | 0.181 in | 4.6 mm | 1000 ft | 304.8 m |
