PPPN251 Series

Catalog

CONN HDR 25POS 0.079 GOLD SMD

Part	Contact Material	Contact Shape	Contact Finish Thickness - Post	Insulation Material	Insulation Height [z]	Insulation Height [z]	Termination	Material Flammability Rating	Mounting Type	Contact Type	Fastening Type	Voltage Rating	Connector Type	Number of Positions Loaded	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Current Rating (Amps)	Contact Finish - Mating	Number of Positions	Number of Rows	Contact Finish Thickness - Mating
Sullins Connector Solutions PPPN251BFLC	Phosphor Bronze	Square	Flash	Polyester	0.181 in	4.6 mm	Solder	UL94 V-0	Surface Mount	Female Socket	Push-Pull	150 VDC	Header	All	Gold	0.079 "	2 mm	-40 C	105 ░C	Black	2 A	Gold	25	1	Flash

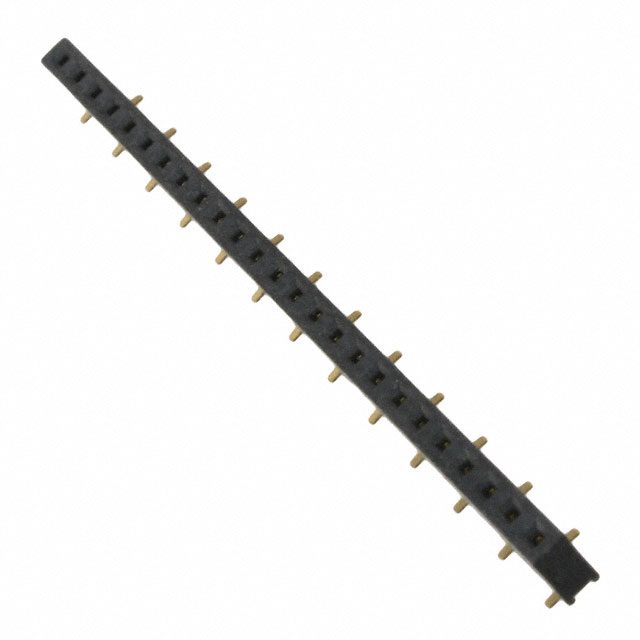

Sullins Connector Solutions PPPN251BFLD	Phosphor Bronze	Square	Flash	Polyester	0.181 in	4.6 mm	Solder	UL94 V-0	Surface Mount	Female Socket	Push-Pull	150 VDC	Header	All	Gold	0.079 "	2 mm	-40 C	105 ░C	Black	2 A	Gold	25	1	Flash
