917790 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

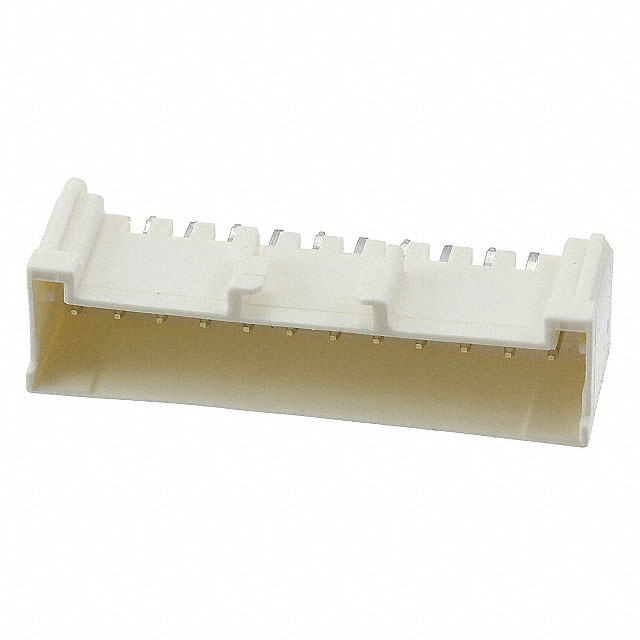

2.5 S.D.L POST HDR ASY 12P STD ROHS COMPLIANT: YES
| Part | Mated Stacking Heights | Applications | Features | Insulation Material | Contact Length - Post [x] | Contact Length - Post [x] | Pitch - Mating | Pitch - Mating | Voltage Rating | Contact Material | Contact Shape | Mounting Type | Termination | Number of Positions | Shrouding | Contact Finish - Post | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Current Rating (Amps) | Overall Contact Length | Overall Contact Length | Style | Insulation Color | Material Flammability Rating | Number of Positions Loaded | Contact Length - Mating | Contact Length - Mating | Insulation Height | Insulation Height | Connector Type | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 13.7 mm | General Purpose | Board Guide | Glass Filled Nylon 6/6 Polyamide (PA66) | 0.126 " | 3.2 mm | 2.5 mm | 0.098 in | 50 V | Copper Alloy | Square | Through Hole | Kinked Pin Solder | 12 | Shrouded - 4 Wall | Tin | Latch Holder | -30 ░C | 105 ░C | Male Pin | 3 A | 0.41 in | 10.41 mm | Board to Cable/Wire | Natural | UL94 V-0 | All | 4.7 mm | 0.185 in | 9.8 mm | 0.386 in | Header | 1 |
