G-660S Series
Manufacturer: CW Industries
Beta
⌘K

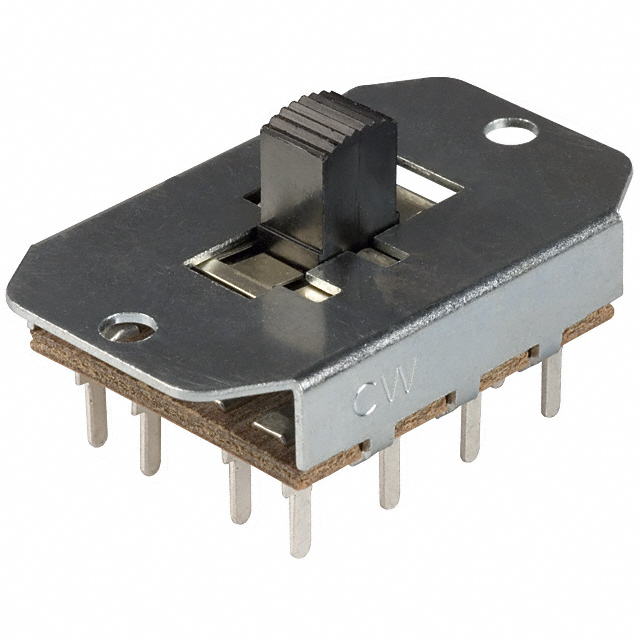

SWITCH SLIDE 4P3T 3A 125V
| Part | Actuator Material | Electrical Life | Mechanical Life | Switch Travel | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Contact Timing | Actuator Type | Voltage Rating - AC | Circuit | Voltage Rating - DC | Actuator Length [x] | Mounting Type | Current Rating (Amps) | Contact Material | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | Nylon 6/6 Polyamide (PA66) | 6000 Cycles | 10000 Steps | 6.25 mm | Silver | -10 °C | 104 °C | PC Pin | Not Specified | Standard | 125 V | 4P3T | 125 VDC | 8.74 mm | Panel Mount | 3 A 500 mA | Copper | On-On-On |
 CW Industries | Nylon 6/6 Polyamide (PA66) | 6000 Cycles | 10000 Steps | 6.25 mm | Silver | -10 °C | 104 °C | Solder Lug | Not Specified | Standard | 125 V | 4P3T | 125 VDC | 8.74 mm | Panel Mount | 3 A 500 mA | Copper | On-On-On |
