MAC4 Series

Catalog

THY DPAK 4A 800V TRIAC

Part	Current - Hold (Ih) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Configuration	Voltage - Gate Trigger (Vgt) (Max) [Max]	Mounting Type	Voltage - Off State	Current - Gate Trigger (Igt) (Max) [Max]	Supplier Device Package	Current - On State (It (RMS)) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Triac Type
ON Semiconductor MAC4DCN-1G

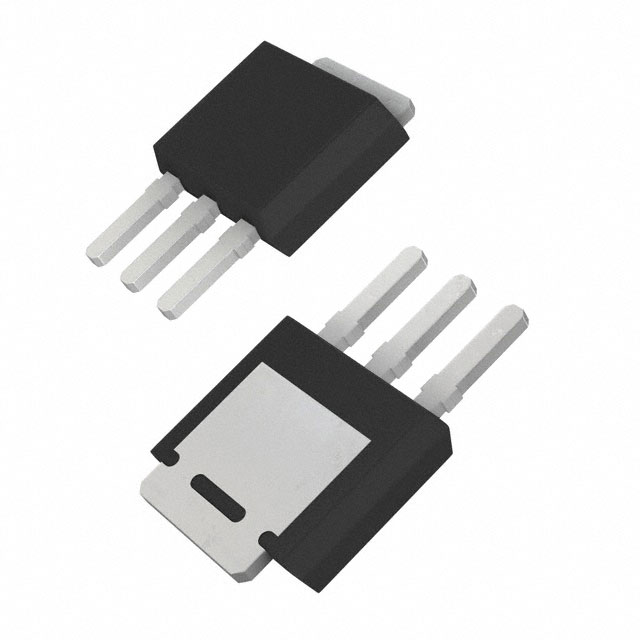

ON Semiconductor MAC4DCM-001	35 mA	-40 °C	125 ¯C	IPAK TO-251-3 Short Leads TO-251AA	Single	1.3 V	Through Hole	600 V	35 mA	IPAK	4 A	40 A	Standard
ON Semiconductor MAC4DSN-001	15 mA	-40 °C	125 ¯C	IPAK TO-251-3 Short Leads TO-251AA	Single	1.3 V	Through Hole	800 V	10 mA	IPAK	4 A	40 A	Logic - Sensitive Gate
ON Semiconductor MAC4DCNT4	35 mA	-40 °C	125 ¯C	DPAK (2 Leads + Tab) SC-63 TO-252-3	Single	1.3 V	Surface Mount	800 V	35 mA	DPAK	4 A	40 A	Standard
ON Semiconductor MAC4DCN-001	35 mA	-40 °C	125 ¯C	IPAK TO-251-3 Short Leads TO-251AA	Single	1.3 V	Through Hole	800 V	35 mA	IPAK	4 A	40 A	Standard
ON Semiconductor MAC4DLM-001	15 mA	-40 °C	110 °C	IPAK TO-251-3 Short Leads TO-251AA	Single	1.3 V	Through Hole	600 V	3 mA	IPAK	4 A	40 A	Logic - Sensitive Gate
ON Semiconductor MAC4DSMT4	15 mA	-40 °C	125 ¯C	DPAK (2 Leads + Tab) SC-63 TO-252-3	Single	1.3 V	Surface Mount	600 V	10 mA	DPAK	4 A	40 A	Logic - Sensitive Gate
ON Semiconductor MAC4DHMT4	15 mA			DPAK (2 Leads + Tab) SC-63 TO-252-3	Single	1.3 V	Surface Mount	600 V	5 mA	DPAK	4 A	40 A	Logic - Sensitive Gate
ON Semiconductor MAC4DSM-001	15 mA	-40 °C	125 ¯C	IPAK TO-251-3 Short Leads TO-251AA	Single	1.3 V	Through Hole	600 V	10 mA	IPAK	4 A	40 A	Logic - Sensitive Gate
