109E1724 Series

Catalog

DC AXIAL FAN, 226CU.FT/MIN, BALL, 172MM ROHS COMPLIANT: YES

Part	Air Flow	Air Flow	Lifetime @ Temp.	Material - Blade	Material - Frame	Current Rating (Amps)	Fan Type	Noise	Power (Watts)	Size / Dimension [diameter]	Size / Dimension	Weight [custom]	Weight [custom]	Width [x]	Approval Agency	Bearing Type	Voltage - Rated	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Static Pressure	Static Pressure	Features	RPM

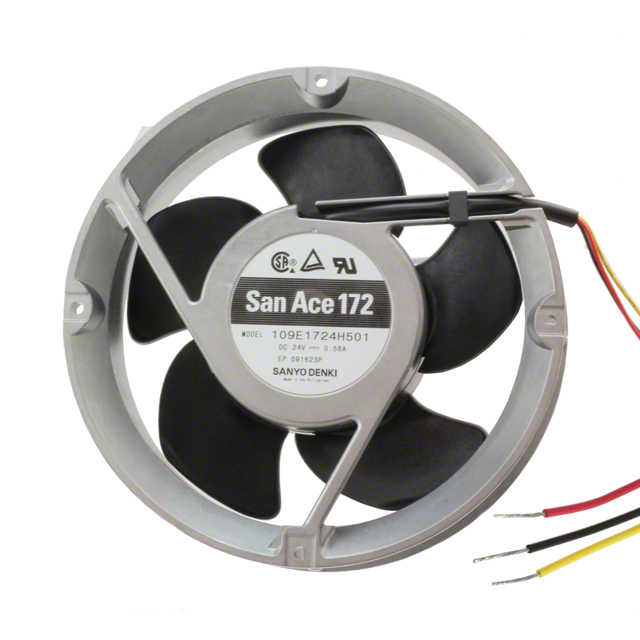

Sanyo Denki America Inc. 109E1724H501	6.33 m³/min	226 CFM	40000 Hrs	Plastic	Aluminum	580 mA	Tubeaxial	47 dB	13.92 W	172 mm	Round	780 g	1.7 lbs	51 mm	CSA TUV UL	Ball	24 VDC	3 Wire Leads	-20 ░C	70 °C	0.551 in H2O	137.2 Pa	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109E1724M5D01	4.14 mł/min	148 CFM	40000 Hrs	Plastic	Aluminum	0.2 A	Tubeaxial	36 dB	4.8 W	172 mm	Round	780 g	1.7 lbs	51 mm	CSA TUV UL	Ball	24 VDC	3 Wire Leads	-20 ░C	70 °C	0.271 in H2O	67.6 Pa	Locked Rotor Sensor	2000 RPM
Sanyo Denki America Inc. 109E1724H5D01	6.33 m³/min	226 CFM	40000 Hrs	Plastic	Aluminum	580 mA	Tubeaxial	47 dB	13.92 W	172 mm	Round	780 g	1.7 lbs	51 mm	CSA TUV UL	Ball	24 VDC	3 Wire Leads	-20 ░C	70 °C	0.551 in H2O	137.2 Pa	Locked Rotor Sensor

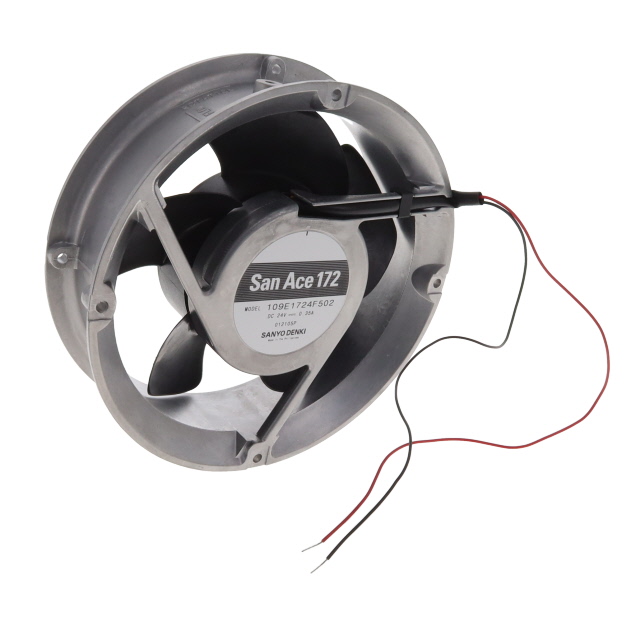

Sanyo Denki America Inc. 109E1724F502	5.04 mł/min	180 CFM	40000 Hrs	Plastic	Aluminum	0.35 A	Tubeaxial	42 dB	8.4 W	172 mm	Round	780 g	1.7 lbs	51 mm	CSA TUV UL	Ball	24 VDC	2 Wire Leads	-20 ░C	70 °C	0.382 in H2O	95.1 Pa		2500 RPM
Sanyo Denki America Inc. 109E1724C5D01	9.8 m³/min	350 CFM	40000 Hrs	Plastic	Aluminum	2.3 A	Tubeaxial	60 dB(A)	55.2 W	172 mm	Round	780 g	1.7 lbs	51 mm	CSA TUV UL	Ball	24 VDC	3 Wire Leads	-20 ░C	70 °C	1.237 in H2O	308 Pa	Locked Rotor Sensor	4800 RPM

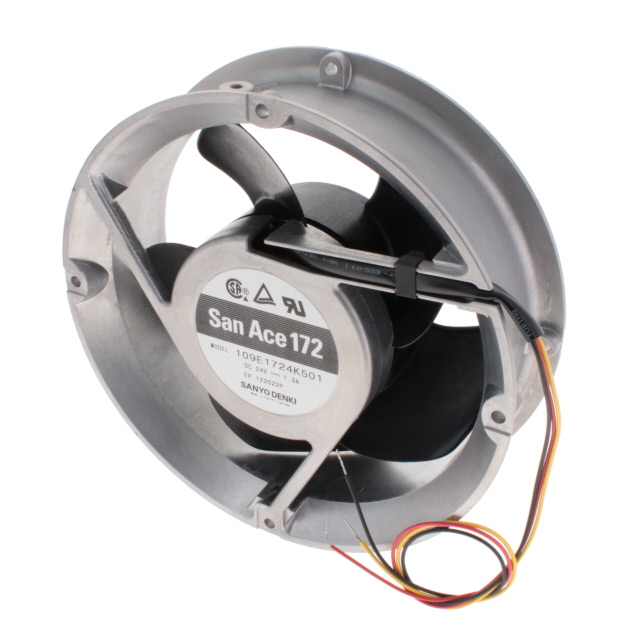

Sanyo Denki America Inc. 109E1724K501	8.4 mł/min	300 CFM	40000 Hrs	Plastic	Aluminum	1.3 A	Tubeaxial	55 dB(A)	31.2 W	172 mm	Round	780 g	1.7 lbs	51 mm	CSA TUV UL	Ball	24 VDC	3 Wire Leads	-20 ░C	70 °C	0.976 in H2O	243 Pa	Locked Rotor Protection Speed Sensor (Tach)	4100 RPM

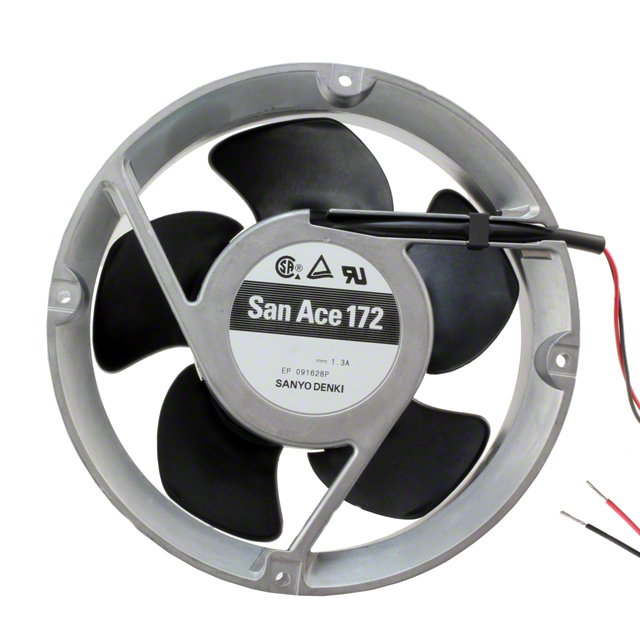

Sanyo Denki America Inc. 109E1724K502	8.4 mł/min	300 CFM	40000 Hrs	Plastic	Aluminum	1.3 A	Tubeaxial	55 dB(A)	31.2 W	172 mm	Round	780 g	1.7 lbs	51 mm	CSA TUV UL	Ball	24 VDC	2 Wire Leads	-20 ░C	70 °C	0.976 in H2O	243 Pa		4100 RPM
