NHD-3.5 Series

Catalog

3.5" SUNLIGHT READABLE TFT CAPAC

Part	Graphics Color	Backlight	Display Type	Touchscreen	Interface	Display Mode	Dot Pixels [y]	Dot Pixels [x]	Viewing Area [y]	Viewing Area [x]	Dot Pitch [y]	Dot Pitch [x]	Dot Size [custom]	Dot Size [custom]	Supplied Contents	Utilized IC / Part	Type	Function	Primary Attributes	Contents	Secondary Attributes	Controller Type	Viewing Area [z]

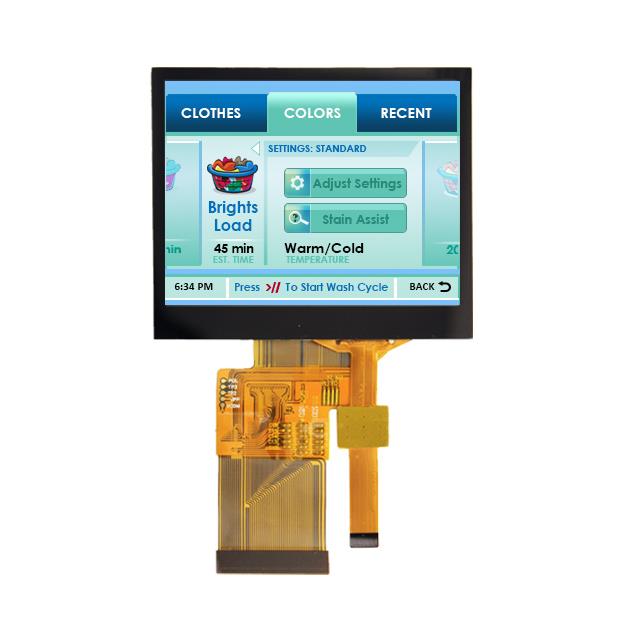

Newhaven Display Intl NHD-3.5-320240MF-ASXN#-CTP	Blue Green Red	LED - White	TFT - Color	Capacitive	Parallel 24-Bit (RGB)	Transmissive	240 pixels	320	53.16 mm	70.68 mm
Newhaven Display Intl NHD-3.5-320240YF-ATXL#-T	Blue Green Red	LED - White	TFT - Color	Resistive	Parallel/Serial	Transmissive	240	320	54.6 mm	72.1 mm	0.22 mm	0.22 mm	0.07 mm	0.21 mm

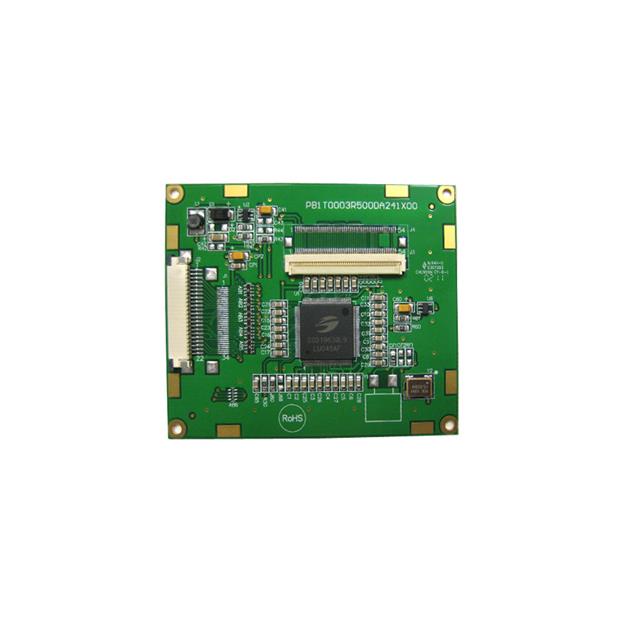

Newhaven Display Intl NHD-3.5-320240MF-22 CONTROLLER BOARD															Board(s)	SSD1963	Display	LCD Controller	For TFT COG Graphic and Character LCD Displays	Board(s)
Newhaven Display Intl NHD-3.5-320240MF-ATXL-CTPAL			TFT - Color

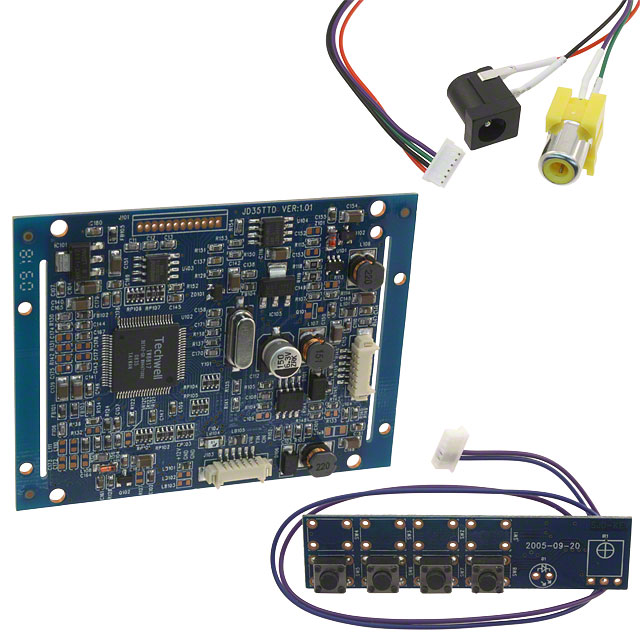

Newhaven Display Intl NHD-3.5-320240MF-VIDEO BOARD V1.1															Board(s) Cable(s)	TW8817	Display	LCD Controller		Board Cable	NTSC PAL

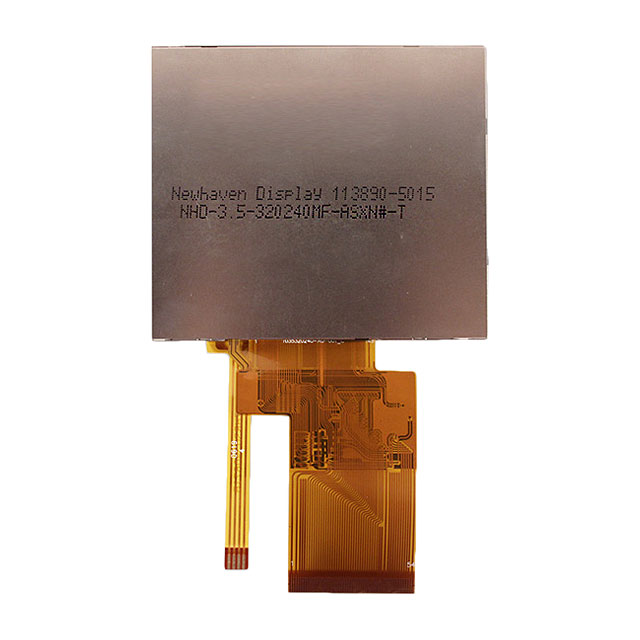

Newhaven Display Intl NHD-3.5-320240MF-ASXN#-T	Blue Green Red	LED - White	TFT - Color	Resistive	Parallel 24-Bit (RGB)	Transmissive	240 pixels	320	55.05 mm	71.82 mm
Newhaven Display Intl NHD-3.5-320240MF-ASXV#-CTPAL	White	LED - White	TFT - Color		Parallel 24-Bit (RGB)	Transmissive	240	320	72.8 mm													NV3035C	55.36 mm
Newhaven Display Intl NHD-3.5-320240MF-ESXN#			TFT - Color
Newhaven Display Intl NHD-3.5-320240ZF-ATXL#-T
Newhaven Display Intl NHD-3.5-320240MF-ATXL#-3			TFT - Color
