2M801-008 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

2M801 37C 37#23 PIN PLUG THRD

Part	Shielding	Insert Material	Shell Finish	Contact Finish - Mating	Contact Material	Number of Positions	Mounting Type	Primary Material	Shell Material	Contact Finish Thickness - Mating	Termination	Orientation	Features	Color	Current Rating	Operating Temperature (Min)	Operating Temperature (Max)	Fastening Type	Ingress Protection Description	Ingress Protection IP Rating	Connector Type	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Shell Size - Insert Width	Shell Size - Insert Length
Amphenol Aerospace Operations 2M801-008-16M13-37PA	Shielded	Polyphenylene Sulfide PPS	Electroless Nickel	Gold	Copper Alloy	37 pos	Free Hanging (In-Line)	Metal	Aluminum Alloy	50 µin	Crimp	A	Coupling Nut	Silver	5 A	-65 °C	150 °C	Threaded	Dust Tight Waterproof	IP67	Male Pins Plug	37	13
Amphenol Aerospace Operations 2M801-008-16ZNU8-2PB	Shielded	Polyphenylene Sulfide PPS	Black Zinc Nickel	Gold	Copper Alloy	2	Free Hanging (In-Line)	Metal	Aluminum Alloy	50 µin	Crimp	B	Coupling Nut	Black	13 A	-65 °C	150 °C	Threaded	Dust Tight Waterproof	IP67	Male Pins Plug			2 mm	8 mm
Amphenol Aerospace Operations 2M801-008-26M8-13SA	Shielded	Polyphenylene Sulfide PPS	Electroless Nickel	Gold	Copper Alloy	13	Free Hanging (In-Line)	Metal	Aluminum Alloy	50 µin	Crimp	A	Coupling Nut Self Locking	Silver	5 A	-65 °C	150 °C	Threaded	Dust Tight Waterproof	IP67	Female Sockets Plug	13	8
Amphenol Aerospace Operations 2M801-008-16ZNU13-7PB	Shielded	Polyphenylene Sulfide PPS	Black Zinc Nickel	Gold	Copper Alloy	7	Free Hanging (In-Line)	Metal	Aluminum Alloy	50 µin	Crimp	B	Coupling Nut	Black	13 A	-65 °C	150 °C	Threaded	Dust Tight Waterproof	IP67	Male Pins Plug			7 mm	13 mm
Amphenol Aerospace Operations 2M801-008-26NF9-210SA	Shielded	Polyphenylene Sulfide PPS	Olive Drab Cadmium	Gold	Copper Alloy	10	Free Hanging (In-Line)	Metal	Aluminum Alloy	50 µin	Crimp	A	Coupling Nut Self Locking	Olive Drab	7.5 A	-65 °C	150 °C	Threaded	Dust Tight Waterproof	IP67	Female Sockets Plug	210	9

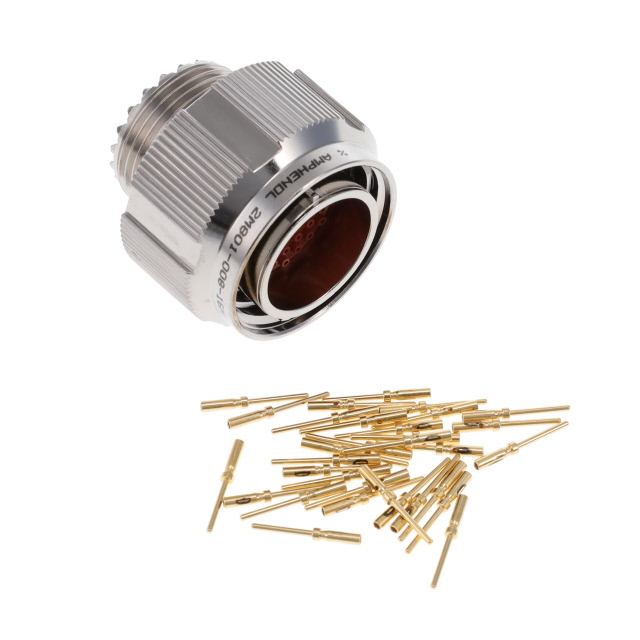

Amphenol Aerospace Operations 2M801-008-16M13-37PB	Shielded	Polyphenylene Sulfide PPS	Electroless Nickel	Gold	Copper Alloy	37 pos	Free Hanging (In-Line)	Metal	Aluminum Alloy	50 µin	Crimp	B	Coupling Nut	Silver	5 A	-65 °C	150 °C	Threaded	Dust Tight Waterproof	IP67	Male Pins Plug	37	13
