J80320 Series
Manufacturer: Telegartner Inc
Beta
⌘K

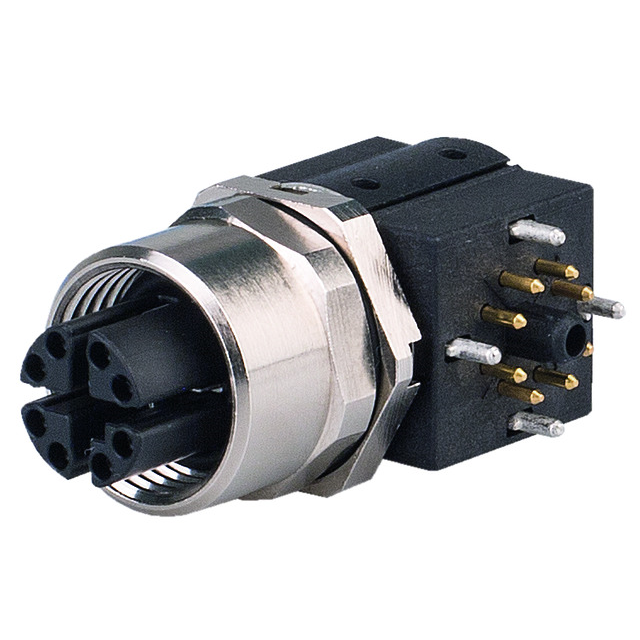

M12X-BS C6A THR 90 2PC
| Part | Shell Material | Shell Finish | Current Rating (Amps) | Fastening Type | Mounting Feature | Voltage Rating | Color | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Connector Type | Shell Size - Insert | Contact Finish - Mating | Insert Material [custom] | Insert Material [custom] | Orientation [x] | Shielding | Ingress Protection | Mounting Type | Primary Material | Number of Positions | Features | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Telegartner Inc | Brass | Nickel | 0.5 A | Threaded | Bulkhead - Front Side Nut | 50 VAC 60 VDC | Black Silver | Industrial | 85 °C | -40 C | Bronze | Plug Female Sockets | M12-8 | Gold | Nylon | Polyamide (PA) | X | Unshielded | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Metal | 8 | Board Guide | Solder |
Telegartner Inc | Brass | Nickel | 0.5 A | Threaded | Bulkhead - Front Side Nut | 50 VAC 60 VDC | Black Silver | Industrial | 85 °C | -40 C | Bronze | Plug Female Sockets | M12-8 | Gold | Nylon | Polyamide (PA) | X | Unshielded | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Metal | 8 | Board Guide | Solder |
Telegartner Inc | Brass | Nickel | 0.5 A | Threaded | Bulkhead - Front Side Nut | 50 VAC 60 VDC | Black Silver | Industrial | 85 °C | -40 C | Bronze | Plug Female Sockets | M12-8 | Gold | Nylon | Polyamide (PA) | X | Unshielded | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Metal | 8 | Board Guide | Solder |
