LCMC Series
Manufacturer: Panduit Corp
Beta
⌘K
CONN TERM RECT RING 400MM #M12
| Part | Width - Outer Edges [y] | Width - Outer Edges | Termination | Tab Thickness | Tab Thickness | Terminal Style | Contact Material | Mounting Type | Terminal Type | Wire Gauge | Insulation | Diameter - Barrel ID [diameter] | Diameter - Barrel ID [diameter] | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Diameter - Barrel OD [diameter] | Diameter - Barrel OD [diameter] | Length - Overall [x] | Length - Overall [x] | Contact Finish | Stud/Tab Size | Width - Outer Edges [y] | Width - Outer Edges |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

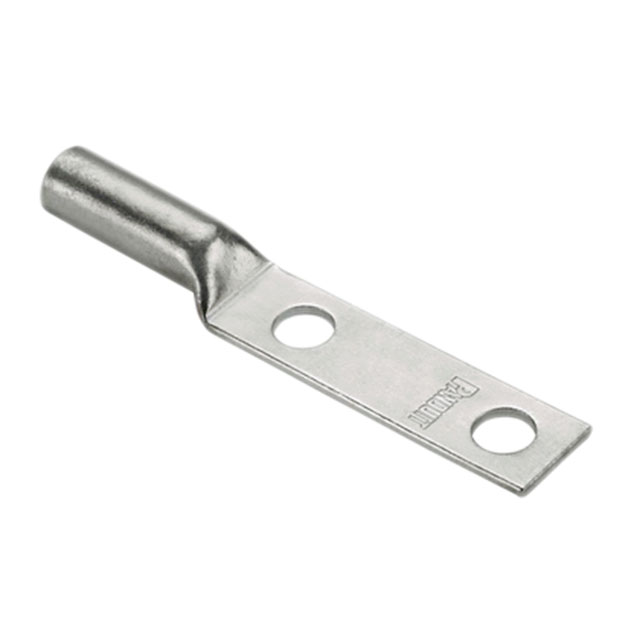

 Panduit Corp | 1.949 in | 49.5 mm | Barrel Crimp | 7.49 mm | 0.295 in | Two Stud Holes | Copper | Free Hanging (In-Line) | Ring Tubular | 400 mm² | Non-Insulated | 1.063 in | 27 mm | 14 mm | 0.551 " | 34.49 mm | 1.358 " | 171.91 mm | 6.768 in | Tin | M12 Stud | ||

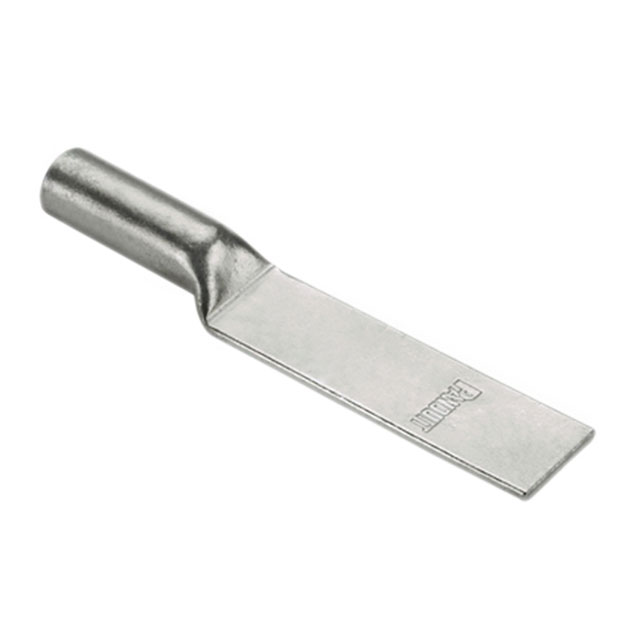

 Panduit Corp | 2.48 in | Barrel Crimp | 9.4 mm | 0.37 in | No Stud Hole | Copper | Free Hanging (In-Line) | Ring Tubular | 630 mm² | Non-Insulated | 1.358 in | 34.49 mm | 43.99 mm | 1.732 " | 203.61 mm | 8.016 in | Tin | 62.99 mm | |||||
Panduit Corp | 1.949 in | 49.5 mm | Barrel Crimp | 7.49 mm | 0.295 in | No Stud Hole | Copper | Free Hanging (In-Line) | Ring Tubular | 400 mm² | Non-Insulated | 1.063 in | 27 mm | 34.49 mm | 1.358 " | 171.91 mm | 6.768 in | Tin | |||||
Panduit Corp | 27.51 mm | Barrel Crimp | 3.4 mm | 0.134 in | No Stud Hole | Copper | Free Hanging (In-Line) | Ring Tubular | 120 mm² | Non-Insulated | 0.598 in | 15.19 mm | 18.59 mm | 0.732 in | 124.69 mm | 4.909 in | Tin | 1.083 in |
