NPPN172 Series

Catalog

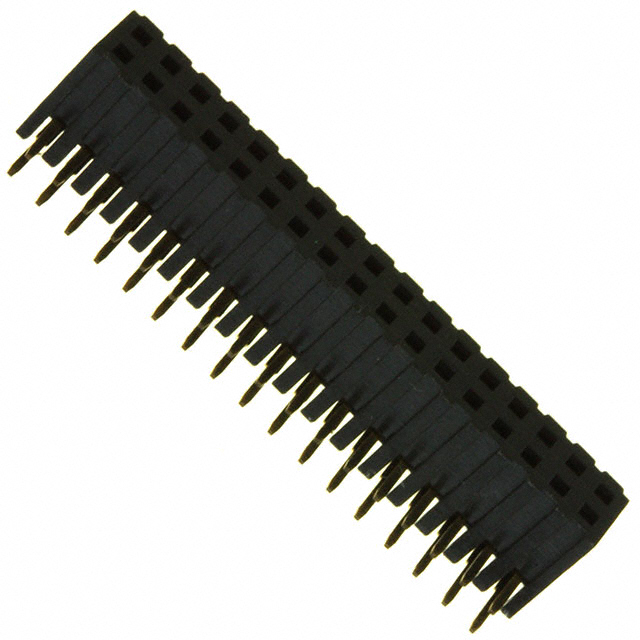

CONN HDR 34P 0.079 GOLD PCB R/A

Part	Contact Shape	Contact Finish Thickness - Post	Contact Material	Insulation Material	Contact Finish Thickness - Mating	Insulation Color	Number of Rows [custom]	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Number of Positions [custom]	Termination	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height [z]	Mounting Type	Fastening Type	Contact Type	Material Flammability Rating	Contact Finish - Mating	Connector Type	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Insulation Height	Insulation Height
Sullins Connector Solutions NPPN172FJFN-RC	Square	Flash	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Flash	Black	2	Gold	0.079 "	2 mm	All	34	Solder	2 mm	0.079 in	4.85 mm	0.191 in	Right Angle Through Hole	Push-Pull	Female Socket	UL94 V-0	Gold	Header	0.118 in	3 mm	-40 C	105 ░C
Sullins Connector Solutions NPPN172FFKS-RC	Square	Flash	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Flash	Black	2	Gold	0.079 "	2 mm	All	34	Solder	2 mm	0.079 in	0.173 in		Surface Mount	Push-Pull	Female Socket	UL94 V-0	Gold	Header			-40 C	105 ░C	2 A	4.4 mm
Sullins Connector Solutions NPPN172AFCN-RC	Square	Flash	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Flash	Black	2	Gold	0.079 "	2 mm	All	34	Solder	2 mm	0.079 in	4.3 mm		Through Hole	Push-Pull	Female Socket	UL94 V-0	Gold	Header	0.094 in	2.4 mm	-40 C	105 ░C			0.169 "
