PV8 Series

Catalog

RING TONGUE TERMINAL, M5, #10, 8 AWG, 10 MM², PV SERIES, RED

Part	Material - Insulation	Width - Outer Edges [y]	Width - Outer Edges [y]	Thickness	Thickness	Color	Terminal Type	Contact Material	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Contact Finish	Insulation	Wire Gauge	Mounting Type	Termination	Length - Overall [x]	Length - Overall [x]	Stud/Tab Size	Features	Width - Outer Edges [x]	Width - Outer Edges [x]	Stud/Tab Size	Width - Outer Edges [x]	Length - Overall	Length - Overall	Width - Outer Edges	Width - Outer Edges
Panduit Corp PV8-10RX-QY	Vinyl	0.47 in	11.94 mm	0.04 in	1.02 mm	Red	Flat Sided	Copper	0.36 in	9.14 mm	Tin	Insulated	8 AWG	Free Hanging (In-Line)	Crimp	1.52 in	38.61 mm	10 Stud	Brazed Seam
Panduit Corp PV8-38RX-TY	Vinyl			0.04 in	1.02 mm	Red	Flat Sided	Copper	0.36 in	9.14 mm	Tin	Insulated	8 AWG	Free Hanging (In-Line)	Crimp	1.62 in	41.15 mm		Brazed Seam	14.99 mm	0.59 in	3/8 Stud

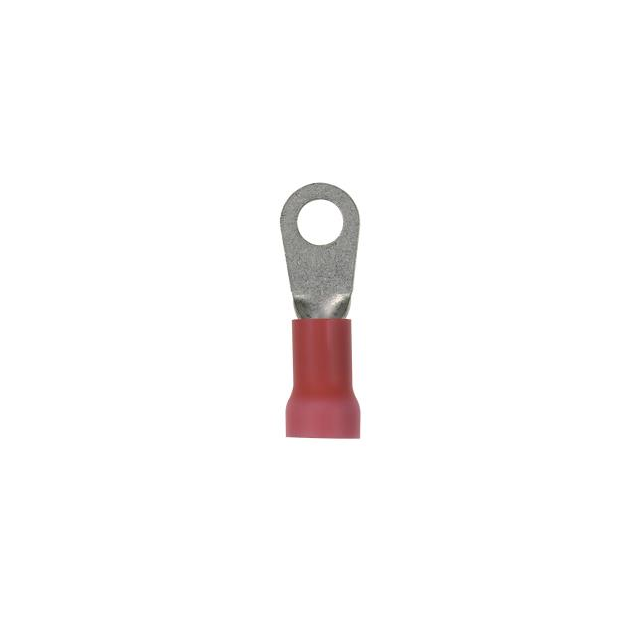

Panduit Corp PV8-12RX-TY	Vinyl			0.04 in	1.02 mm	Red	Flat Sided	Copper	0.36 in	9.14 mm	Tin	Insulated	8 AWG	Free Hanging (In-Line)	Crimp				Brazed Seam		20.83 mm	1/2 Stud	0.82 in	44.2 mm	1.74 in
Panduit Corp PV8-56RX-TY	Vinyl			0.04 in	1.02 mm	Red	Flat Sided	Copper	0.36 in	9.14 mm	Tin	Insulated	8 AWG	Free Hanging (In-Line)	Crimp	1.62 in	41.15 mm	0.3125 Stud	Brazed Seam	14.99 mm	0.59 in
Panduit Corp PV8-38RX-QY	Vinyl			0.04 in	1.02 mm	Red	Flat Sided	Copper	0.36 in	9.14 mm	Tin	Insulated	8 AWG	Free Hanging (In-Line)	Crimp	1.62 in	41.15 mm		Brazed Seam	14.99 mm	0.59 in	3/8 Stud

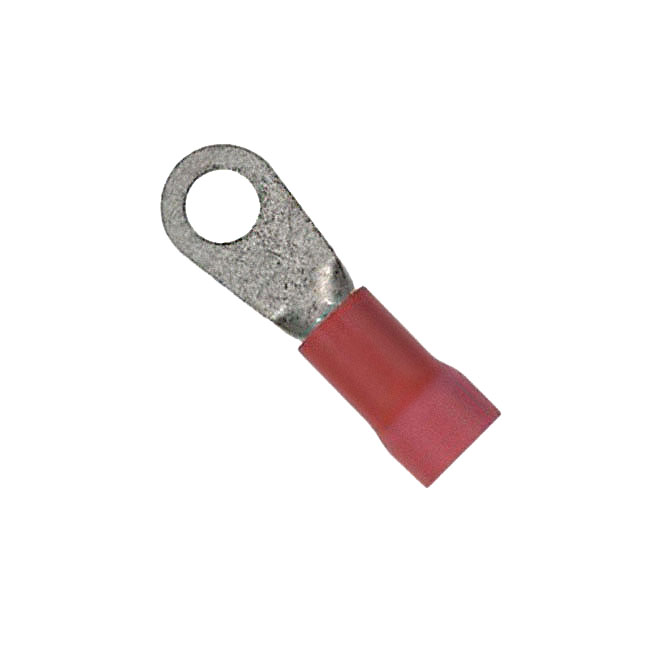

Panduit Corp PV8-12R-XY	Vinyl			0.04 in	1.02 mm	Red	Circular	Copper	0.28 "	7.11 mm	Tin	Insulated	8 AWG	Free Hanging (In-Line)	Crimp				Brazed Seam		20.83 mm	1/2 Stud	0.82 in	44.2 mm	1.74 in
Panduit Corp PV8-14RX-QY	Vinyl	0.47 in	11.94 mm	0.04 in	1.02 mm	Red	Flat Sided	Copper	0.36 in	9.14 mm	Tin	Insulated	8 AWG	Free Hanging (In-Line)	Crimp	1.52 in	38.61 mm	0.25 Stud	Brazed Seam

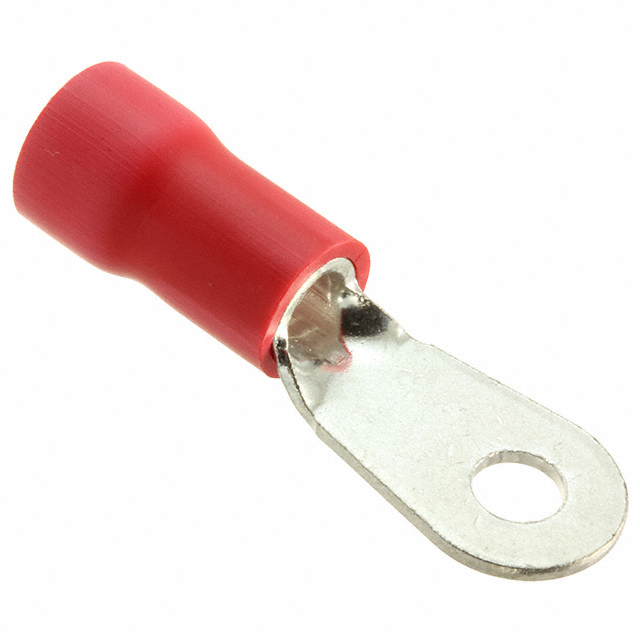

Panduit Corp PV8-10R-TY	Vinyl	0.47 in	11.94 mm	0.04 in	1.02 mm	Red	Flat Sided	Copper	0.28 "	7.11 mm	Tin	Insulated	8 AWG	Free Hanging (In-Line)	Crimp	1.53 "	38.86 mm	10 Stud	Brazed Seam

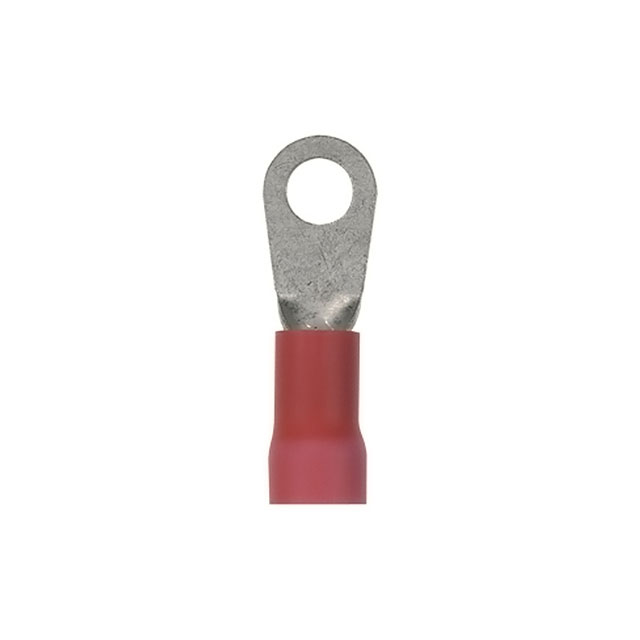

Panduit Corp PV8-10R-QY	Vinyl	0.47 in	11.94 mm	0.04 in	1.02 mm	Red	Flat Sided	Copper	0.28 "	7.11 mm	Tin	Insulated	8 AWG	Free Hanging (In-Line)	Crimp	1.53 "	38.86 mm	10 Stud	Brazed Seam
Panduit Corp PV8-8RX-QY	Vinyl			0.04 in	1.02 mm	Red	Flat Sided	Copper	0.36 in	9.14 mm	Tin	Insulated	8 AWG	Free Hanging (In-Line)	Crimp	1.5 in	38.1 mm		Brazed Seam			8 Stud				10.67 mm	0.42 in
