SC-E-J Series

Manufacturer: KEMET

Catalog

COMMON MODE CHOKES / FILTERS 250V 15MH 3A DCR=160MOHMS

Part	Filter Type	Number of Lines	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Height (Max) [z]	Height (Max) [z]	Voltage Rating - DC	Inductance @ Frequency	Mounting Type	Package / Case	Current Rating (Max) [Max]	DC Resistance (DCR) (Max) [Max]	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]

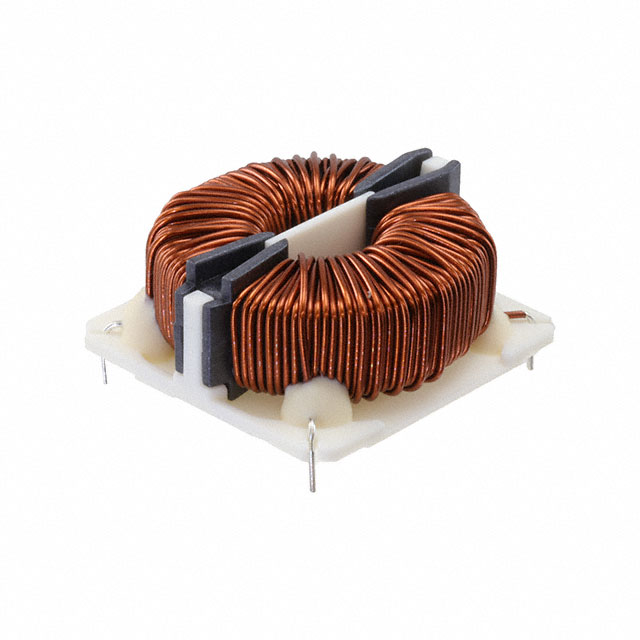

KEMET SC-030-E150JH-P	Power Line	2	120 °C	-40 C	250 V	0.571 in	14.5 mm	250 V	10 kHz 15 mH	Through Hole	Horizontal 2 PC Pin	3 A
KEMET SC-02-E115J	Power Line	2	120 °C	-40 C	250 V			250 V	11.5 mH	Through Hole	Vertical 4 PC Pin	2 A	155 mOhm	27.5 mm	1.083 in	0.606 "	25 mm	0.984 "	15.4 mm
