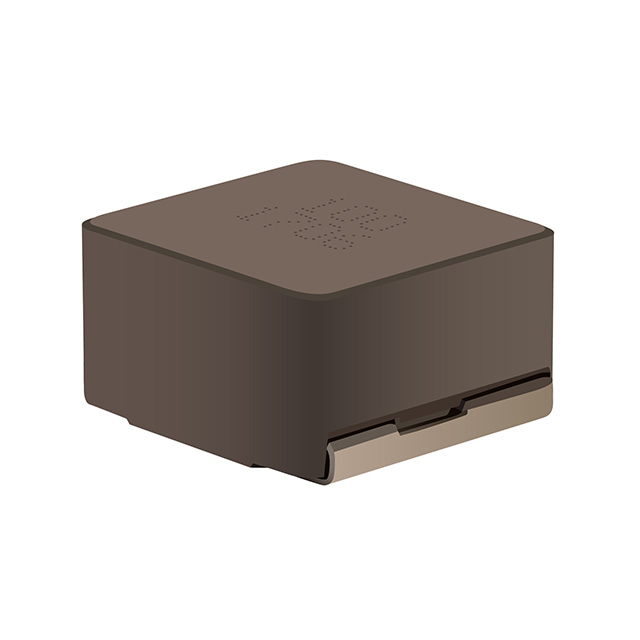

SRP2313AA Series

Catalog

POWER INDUCTORS - SMD 6.8UH 20% 36A AEC-Q200

Part	Mounting Type	Frequency - Self Resonant	Material - Core	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [x]	Shielding	Current - Saturation (Isat)	Ratings	Type	Q @ Freq	Inductance	DC Resistance (DCR) [Max]	Inductance Frequency - Test	Tolerance	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Q @ Freq [custom]
Bourns Inc. SRP2313AA-6R8M	Surface Mount	9 MHz	Alloy Powder	155 C	-55 C	36 A	0.866 in 22 mm	0.925 in 23.5 mm	Shielded	32 A	AEC-Q200	Drum Core Wirewound	40 100 kHz	6.8 µH	3.1 mOhm	100 kHz	20 %	Nonstandard	0.512 "	13 mm
Bourns Inc. SRP2313AA-2R2M	Surface Mount	19 MHz	Alloy Powder	155 C	-55 C	52 A	0.866 in 22 mm	0.925 in 23.5 mm	Shielded	43 A	AEC-Q200	Drum Core Wirewound	60	2.2 µH	1.25 mOhm	100 kHz	20 %	Nonstandard	0.512 "	13 mm	100 kHz
Bourns Inc. SRP2313AA-230M	Surface Mount	5 MHz	Alloy Powder	155 C	-55 C	18 A	0.866 in 22 mm	0.925 in 23.5 mm	Shielded	14 A	AEC-Q200	Drum Core Wirewound	30 100 kHz	23 µH	11 mOhm	100 kHz	20 %	Nonstandard	0.512 "	13 mm
Bourns Inc. SRP2313AA-220M	Surface Mount	5 MHz	Alloy Powder	155 C	-55 C	18 A	0.866 in 22 mm	0.925 in 23.5 mm	Shielded	14 A	AEC-Q200	Drum Core Wirewound	30 100 kHz	22 µH	11 mOhm	100 kHz	20 %	Nonstandard	0.512 "	13 mm
