RSBDC Series

Manufacturer: KEMET

Catalog

FILM CAPACITOR, 0.47UF, 63VDC, RADIAL ROHS COMPLIANT: YES

Part	Mounting Type	Capacitance	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Applications	Package / Case	Lead Spacing	Lead Spacing	Voltage Rating - DC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Voltage Rating - AC	Features	Termination	Size / Dimension [y]	Height - Seated (Max) [z]	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]

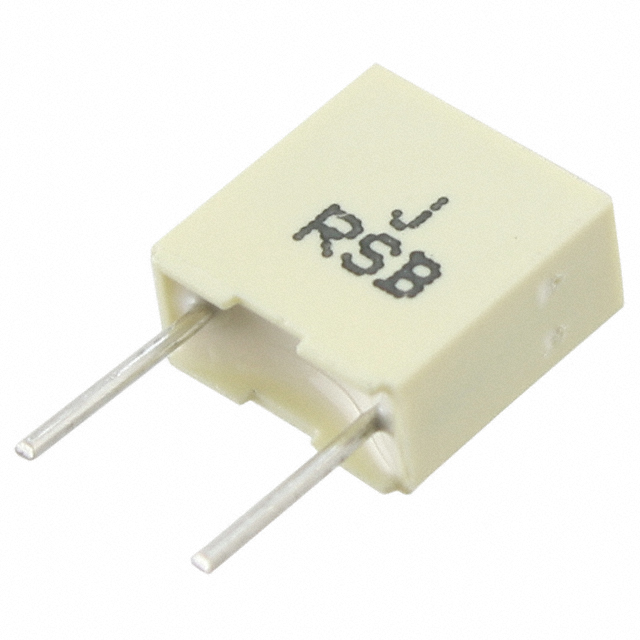

KEMET RSBDC3470AA10J	Through Hole	0.47 µF	5 %	3.5 mm	7.2 mm	0.138 in	0.283 "	General Purpose	Radial	0.197 "	5 mm	63 VDC	0.299 in	7.6 mm	-55 C	125 °C	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	40 V	High Temperature	PC Pins
KEMET RSBDC4100Z310K	Through Hole	1 µF	10 %		7.2 mm	0.197 "	0.283 "	Automotive	Radial	0.197 "	5 mm	63 VDC		0.398 in	-55 C	125 °C	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	40 V	High Temperature	PC Pins	5 mm	10.1 mm	AEC-Q200

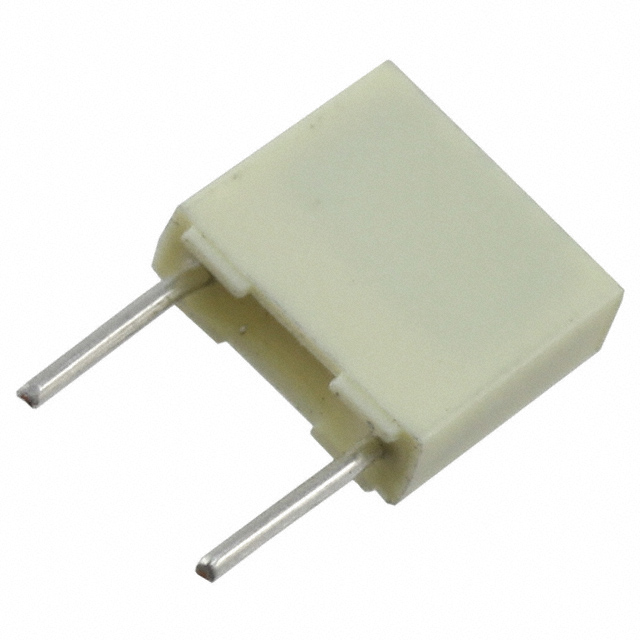

KEMET RSBDC3100AA00J	Through Hole	100000 pF	5 %	2.5 mm	7.2 mm	0.098 in	0.283 "	General Purpose	Radial	0.197 "	5 mm	63 VDC			-55 C	125 °C	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	40 V	High Temperature	PC Pins				6.6 mm	0.26 in
KEMET RSBDC3330Z300K	Through Hole	0.33 µF	10 %	3.5 mm	7.2 mm	0.138 in	0.283 "	Automotive	Radial	0.197 "	5 mm	63 VDC	0.299 in	7.6 mm	-55 C	125 °C	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	40 V	High Temperature	PC Pins			AEC-Q200
KEMET RSBDC3330DQ00K	Through Hole	0.33 µF	10 %	3.5 mm	7.2 mm	0.138 in	0.283 "	Automotive	Radial	0.197 "	5 mm	63 VDC	0.299 in	7.6 mm	-55 C	125 °C	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	40 V	High Temperature	PC Pins			AEC-Q200
KEMET RSBDC3180SH10J	Through Hole	0.18 µF	5 %					Automotive	Radial			63 VDC			-55 C	125 °C	Polyester Metallized	40 V	High Temperature	PC Pins			AEC-Q200
KEMET RSBDC3470Z310K	Through Hole	0.47 µF	10 %	3.5 mm	7.2 mm	0.138 in	0.283 "	Automotive	Radial	0.197 "	5 mm	63 VDC	0.299 in	7.6 mm	-55 C	125 °C	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	40 V	High Temperature	PC Pins			AEC-Q200
KEMET RSBDC3470DQ10J	Through Hole	0.47 µF	5 %	3.5 mm	7.2 mm	0.138 in	0.283 "	Automotive	Radial	0.197 "	5 mm	63 VDC	0.299 in	7.6 mm	-55 C	125 °C	Polyester Metallized	40 V	High Temperature	PC Pins			AEC-Q200
