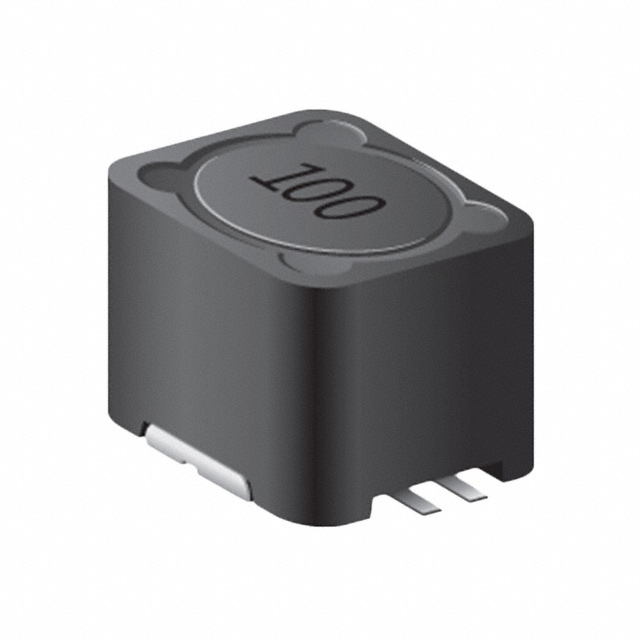

SRR1210A Series

Catalog

POWER INDUCTOR (SMD), 330 ΜH, 1.4 A, SHIELDED, 1.2 A, SRR1210A SERIES

Part	Current Rating (Amps)	Package / Case	Shielding	Tolerance	Frequency - Self Resonant	Q @ Freq	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Saturation (Isat)	Material - Core	Inductance	DC Resistance (DCR)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Inductance Frequency - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ratings	DC Resistance (DCR) [Max]
Bourns Inc. SRR1210A-331M	1.4 A	Nonstandard	Shielded	20 %	1.8 MHz	14 796 kHz	Surface Mount	125 °C	-40 C	1.2 A	Ferrite	330 µH	450 mOhm	12 mm	0.472 in	0.472 "	12 mm	1 kHz	10 mm	0.394 in	AEC-Q200
Bourns Inc. SRR1210A-820M	2.8 A	Nonstandard	Shielded	20 %	3.5 MHz	2.52 MHz 15	Surface Mount	125 °C	-40 C	2.5 A	Ferrite	82 µH	112 mOhm	12 mm	0.472 in	0.472 "	12 mm	1 kHz	10 mm	0.394 in	AEC-Q200
Bourns Inc. SRR1210A-180M	5.5 Amps	Nonstandard	Shielded	20 %	8 MHz	2.52 MHz 13	Surface Mount	125 °C	-40 C	5.1 A	Ferrite	18 µH		12 mm	0.472 in	0.472 "	12 mm	1 kHz	10 mm	0.394 in	AEC-Q200	35 mOhm
Bourns Inc. SRR1210A-151M	2.2 A	Nonstandard	Shielded	20 %	2.2 MHz	12 796 kHz	Surface Mount	125 °C	-40 C	1.8 A	Ferrite	150 µH		12 mm	0.472 in	0.472 "	12 mm	1 kHz	10 mm	0.394 in	AEC-Q200	190 mOhm
Bourns Inc. SRR1210A-101M	2.5 A	Nonstandard	Shielded	20 %	3 MHz	16 796 kHz	Surface Mount	125 °C	-40 C	2.2 A	Ferrite	100 µH		12 mm	0.472 in	0.472 "	12 mm	1 kHz	10 mm	0.394 in	AEC-Q200	135 mOhm
Bourns Inc. SRR1210A-4R7Y	8.5 A	Nonstandard	Shielded	30 %	35 MHz	7.96 MHz 8	Surface Mount	125 °C	-40 C	9.6 A	Ferrite	4.7 ÁH		12 mm	0.472 in	0.472 "	12 mm	1 kHz	10 mm	0.394 in	AEC-Q200	12 mOhm
Bourns Inc. SRR1210A-220M	5.2 A	Nonstandard	Shielded	20 %	8 MHz	2.52 MHz 16	Surface Mount	125 °C	-40 C	4.5 A	Ferrite	22 µH	38 mOhm	12 mm	0.472 in	0.472 "	12 mm	1 kHz	10 mm	0.394 in	AEC-Q200
Bourns Inc. SRR1210A-6R8Y	7.85 A	Nonstandard	Shielded	30 %	20 MHz	7.96 MHz 12	Surface Mount	125 °C	-40 C		Ferrite	6.8 µH		12 mm	0.472 in	0.472 "	12 mm	1 kHz	10 mm	0.394 in	AEC-Q200	15 mOhm
Bourns Inc. SRR1210A-330M	4.4 A	Nonstandard	Shielded	20 %	6.5 MHz	2.52 MHz 16	Surface Mount	125 °C	-40 C	3.7 A	Ferrite	33 µH		12 mm	0.472 in	0.472 "	12 mm	1 kHz	10 mm	0.394 in	AEC-Q200
Bourns Inc. SRR1210A-5R6Y	8 A	Nonstandard	Shielded	30 %	28 MHz	7.96 MHz 12	Surface Mount	125 °C	-40 C	8.5 A	Ferrite	5.6 µH	13.5 mOhm	12 mm	0.472 in	0.472 "	12 mm	1 kHz	10 mm	0.394 in	AEC-Q200
