F221V1/8 Series

Catalog

HEATSHRINK 1/8" X 4' BLUE

Part	Shelf Life Start	Shelf Life	Length [x]	Length [x]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Type	Color	Shrink Temperature	Recovered Wall Thickness	Recovered Wall Thickness	Material	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Length
ALPHA WIRE F221V1/8 BL103	Date of Manufacture	144 Months	4 ft	1.22 m	1	2	3.18 mm	0.125 in	Tubing Flexible	Blue	90 °C	0.51 mm	0.02 in	Polyolefin (PO) Irradiated	0.062 in	1.57 mm	Flame Retardant Fluid Resistant Heat Resistant	-55 C	135 °C
ALPHA WIRE F221V1/8 BK100	Date of Manufacture	144 Months	4 ft	1.22 m	1	2	3.18 mm	0.125 in	Tubing Flexible	Black	90 °C	0.51 mm	0.02 in	Polyolefin (PO) Irradiated	0.062 in	1.57 mm	Flame Retardant Fluid Resistant Heat Resistant UV Resistant	-55 C	135 °C
ALPHA WIRE F221V1/8 WH002	Date of Manufacture	144 Months			1	2	3.18 mm	0.125 in	Tubing Flexible	White	90 °C	0.51 mm	0.02 in	Polyolefin (PO) Irradiated	0.062 in	1.57 mm	Flame Retardant Fluid Resistant Heat Resistant	-55 C	135 °C	152.4 m	500 ft
ALPHA WIRE F221V1/8 BK103	Date of Manufacture	144 Months	4 ft	1.22 m	1	2	3.18 mm	0.125 in	Tubing Flexible	Black	90 °C	0.51 mm	0.02 in	Polyolefin (PO) Irradiated	0.062 in	1.57 mm	Flame Retardant Fluid Resistant Heat Resistant UV Resistant	-55 C	135 °C

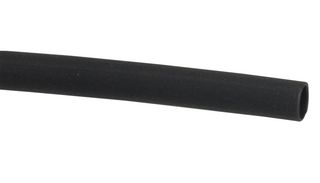

ALPHA WIRE F221V1/8 BK062	Date of Manufacture	144 Months			1	2	3.18 mm	0.125 in	Tubing Flexible	Black	90 °C	0.51 mm	0.02 in	Polyolefin (PO) Irradiated	0.062 in	1.57 mm	Flame Retardant Fluid Resistant Heat Resistant UV Resistant	-55 C	135 °C	152.4 mm	0.5 '	6 "
