M80-665 Series

Catalog

9+9 POS. MALE DIL HORIZONTAL SMT CONN. NO LATCHES ROHS COMPLIANT: YES

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Connector Type	Insulation Material	Current Rating (Amps)	Insulation Color	Material Flammability Rating	Number of Positions Loaded	Contact Type	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Row Spacing - Mating	Row Spacing - Mating	Termination	Mounting Type	Style	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Finish - Mating	Insulation Height [z]	Insulation Height [z]	Features	Number of Positions	Contact Shape	Contact Finish - Post	Contact Material	Number of Positions [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Harwin Inc. M80-6651842	118.1 µin	3 µm	Plug	Polyphenylene Sulfide (PPS) Glass Filled	2.2 A	Black	UL94 V-0	All	Male Pin	800 V	-55 C	125 °C	Shrouded - 4 Wall	29.5 µin	0.75 µm	2 mm	0.079 in	Solder	Right Angle Surface Mount	Board to Board Cable	2	0.079 "	2 mm	Latch Holder	Gold	0.235 in	5.97 mm	Strain Relief Clips	18	Circular	Tin	Brass

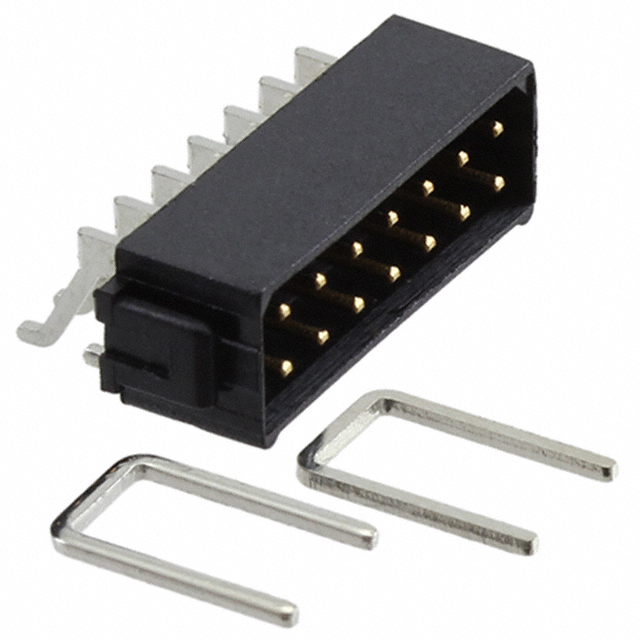

Harwin Inc. M80-6651442	118.1 µin	3 µm	Plug	Polyphenylene Sulfide (PPS) Glass Filled	2.2 A	Black	UL94 V-0	All	Male Pin	800 V	-55 C	125 °C	Shrouded - 4 Wall	29.5 µin	0.75 µm	2 mm	0.079 in	Solder	Right Angle Surface Mount	Board to Board Cable	2	0.079 "	2 mm	Latch Holder	Gold	0.235 in	5.97 mm	Strain Relief Clips	14	Circular	Tin	Brass
Harwin Inc. M80-6651422	118.1 µin	3 µm	Plug	Polyphenylene Sulfide (PPS) Glass Filled	2.2 A	Black	UL94 V-0	All	Male Pin	800 V	-55 C	125 °C	Shrouded - 4 Wall	29.5 µin	0.75 µm	2 mm	0.079 in	Solder	Right Angle Surface Mount	Board to Board Cable	2	0.079 "	2 mm	Latch Holder	Gold	0.235 in	5.97 mm	Strain Relief Clips	14	Circular	Tin-Lead	Brass
Harwin Inc. M80-6652042	118.1 µin	3 µm	Plug	Polyphenylene Sulfide (PPS) Glass Filled	2.2 A	Black	UL94 V-0	All	Male Pin	800 V	-55 C	125 °C	Shrouded - 4 Wall	29.5 µin	0.75 µm	2 mm	0.079 in	Solder	Right Angle Surface Mount	Board to Board Cable	2	0.079 "	2 mm	Latch Holder	Gold	0.235 in	5.97 mm	Strain Relief Clips	20	Circular	Tin	Brass
Harwin Inc. M80-6653442	118.1 µin	3 µm	Plug	Polyphenylene Sulfide (PPS) Glass Filled	2.2 A	Black	UL94 V-0	All	Male Pin	800 V	-55 C	125 °C	Shrouded - 4 Wall	29.5 µin	0.75 µm	2 mm	0.079 in	Solder	Right Angle Surface Mount	Board to Board Cable	2	0.079 "	2 mm	Latch Holder	Gold	0.235 in	5.97 mm	Strain Relief Clips		Circular	Tin	Brass	34

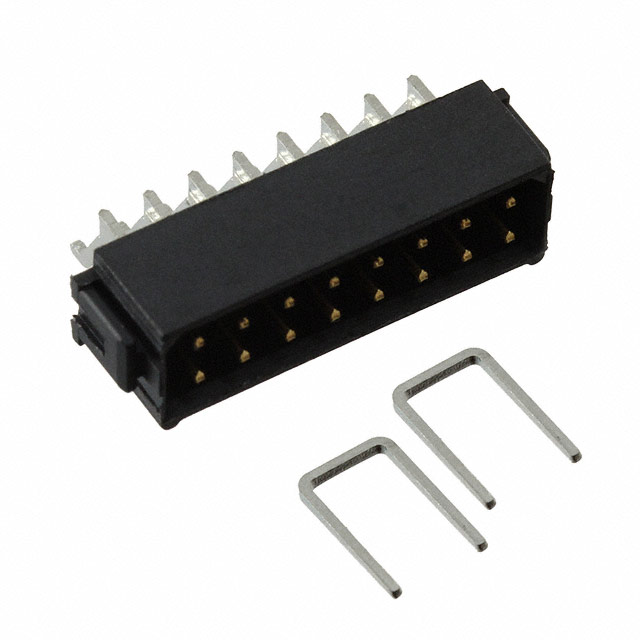

Harwin Inc. M80-6651642			Plug	Polyphenylene Sulfide (PPS) Glass Filled	2.2 A	Black	UL94 V-0	All	Male Pin	800 V	-55 C	125 °C	Shrouded - 4 Wall	29.5 µin	0.75 µm	2 mm	0.079 in	Solder	Right Angle Surface Mount	Board to Board Cable	2	0.079 "	2 mm	Latch Holder	Gold	0.235 in	5.97 mm	Strain Relief Clips	16	Circular	Tin	Brass		29.5 Áin	0.75 Ám	118.1 Áin	3 Ám
Harwin Inc. M80-6651242	118.1 µin	3 µm	Plug	Polyphenylene Sulfide (PPS) Glass Filled	2.2 A	Black	UL94 V-0	All	Male Pin	800 V	-55 C	125 °C	Shrouded - 4 Wall	29.5 µin	0.75 µm	2 mm	0.079 in	Solder	Right Angle Surface Mount	Board to Board Cable	2	0.079 "	2 mm	Latch Holder	Gold	0.235 in	5.97 mm	Strain Relief Clips	12	Circular	Tin	Brass

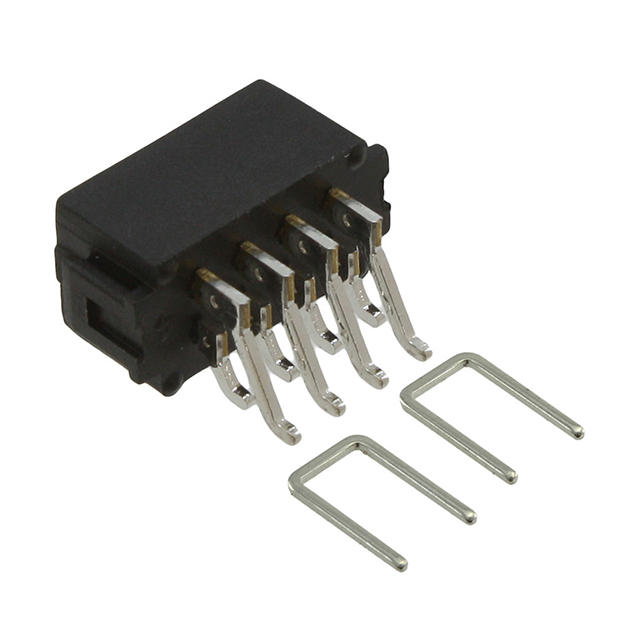

Harwin Inc. M80-6650842	118.1 µin	3 µm	Plug	Polyphenylene Sulfide (PPS) Glass Filled	2.2 A	Black	UL94 V-0	All	Male Pin	800 V	-55 C	125 °C	Shrouded - 4 Wall	29.5 µin	0.75 µm	2 mm	0.079 in	Solder	Right Angle Surface Mount	Board to Board Cable	2	0.079 "	2 mm	Latch Holder	Gold	0.235 in	5.97 mm	Strain Relief Clips	8	Circular	Tin	Brass
