396-070 Series
Manufacturer: EDAC Inc.
Beta
⌘K

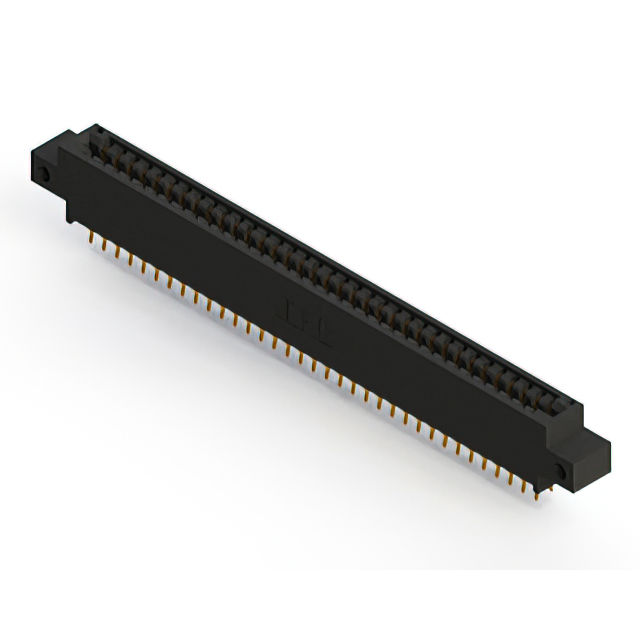

CONN EDGE DUAL FMALE 70POS 0.125
| Part | Termination Rows [custom] | Material - Insulation | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Color | Number of Rows [custom] | Pitch | Pitch | Contact Material | Mounting Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Card Thickness [Max] | Card Thickness [Min] | Termination | Gender | Read Out | Number of Positions/Bay/Row | Card Type | Contact Finish | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | 0.25 Ám | 10 Áin | 70 | -40 C | 105 ░C | Black | 2 | 3.18 mm | 0.125 in | Copper Alloy | Through Hole | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Female | Dual | 35 | Non Specified - Dual Edge | Gold | |
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | 0.25 Ám | 10 Áin | 70 | -40 C | 105 ░C | Black | 2 | 3.18 mm | 0.125 in | Copper Alloy | Board Edge Straddle Mount | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Eyelet(s) | Female | Dual | 35 | Non Specified - Dual Edge | Gold | Card Extender |
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | 0.25 Ám | 10 Áin | 70 | -40 C | 105 ░C | Black | 2 | 3.18 mm | 0.125 in | Copper Alloy | Right Angle Through Hole | 4-40 Threaded Insert Top Mount Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Wire Wrap | Female | Dual | 35 | Non Specified - Dual Edge | Gold | Card Guides | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | 0.25 Ám | 10 Áin | 70 | -40 C | 105 ░C | Black | 2 | 3.18 mm | 0.125 in | Copper Alloy | Through Hole | M3 Threaded Insert Top Mount Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Female | Dual | 35 | Non Specified - Dual Edge | Gold | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | 0.25 Ám | 10 Áin | 70 | -40 C | 105 ░C | Black | 2 | 3.18 mm | 0.125 in | Copper Alloy | Through Hole | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Female | Dual | 35 | Non Specified - Dual Edge | Gold | |
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | 0.25 Ám | 10 Áin | 70 | -40 C | 105 ░C | Black | 2 | 3.18 mm | 0.125 in | Copper Alloy | Right Angle Through Hole | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Wire Wrap | Female | Dual | 35 | Non Specified - Dual Edge | Gold | |
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | 0.25 Ám | 10 Áin | 70 | -40 C | 105 ░C | Black | 2 | 3.18 mm | 0.125 in | Copper Alloy | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Female | Dual | 35 | Non Specified - Dual Edge | Gold | |||

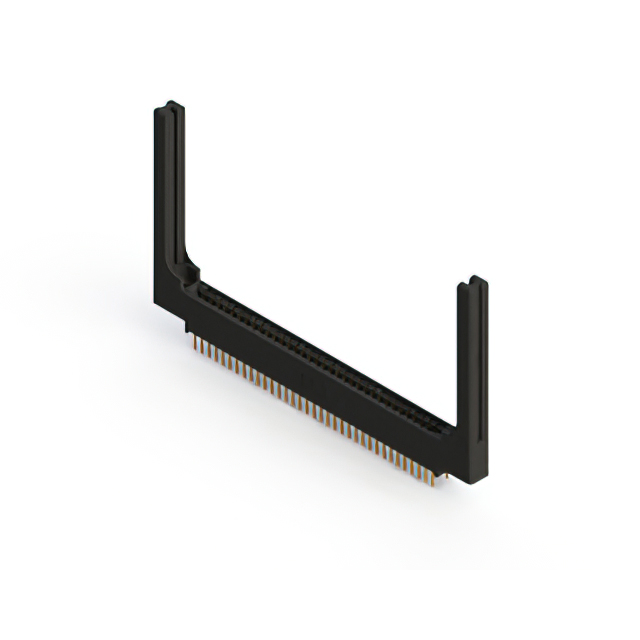

 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | 0.25 Ám | 10 Áin | 70 | -40 C | 105 ░C | Black | 2 | 3.18 mm | 0.125 in | Copper Alloy | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Female | Dual | 35 | Non Specified - Dual Edge | Gold | Card Guides | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | 0.25 Ám | 10 Áin | 70 | -40 C | 105 ░C | Black | 2 | 3.18 mm | 0.125 in | Copper Alloy | Right Angle Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Wire Wrap | Female | Dual | 35 | Non Specified - Dual Edge | Gold | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | 0.25 Ám | 10 Áin | 70 | -40 C | 105 ░C | Black | 2 | 3.18 mm | 0.125 in | Copper Alloy | Board Edge Straddle Mount | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Female | Dual | 35 | Non Specified - Dual Edge | Gold | Card Extender |
