DBV5W5 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K
CONN D-SUB HOUSING RCPT 5POS
| Part | Note | Connector Type | Flange Feature | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Number of Rows | Dielectric Material | Connector Style | Shell Size, Connector Layout | Shell Size, Connector Layout | Number of Positions [custom] | Contact Finish | Features | Termination | Voltage Rating | Current Rating (Amps) | Material Flammability Rating | Shell Material, Finish | Backset Spacing | Backset Spacing | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Contacts Not Included | Receptacle for Female Contacts | Female Screwlock (4-40) Mating Side | Free Hanging (In-Line) | -55 °C | 125 °C | Power | 1 | Thermoplastic | Combo D-Sub | 5W5 | 3 | 5 | ||||||||||

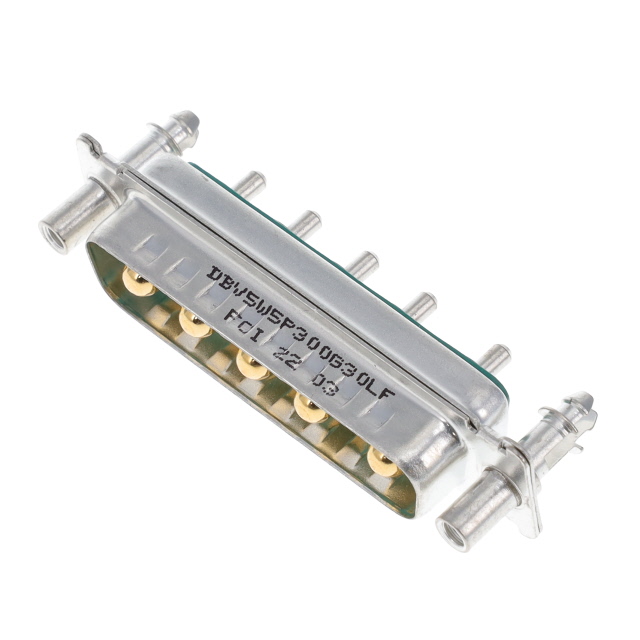

 Amphenol ICC (FCI) | Male Pins Plug | Female Screwlock (4-40) Mating Side | Through Hole | -55 °C | 125 °C | Power | 1 | Thermoplastic | Combo D-Sub | 5W5 | 3 | 5 | Gold | Board Lock Grounding Indents | Solder | 300 VDC | 30 A | UL94 V-0 | Nickel Plated Steel | ||||
Amphenol ICC (FCI) | Receptacle Female Sockets | Female Screwlock (4-40) Mating Side | Through Hole Right Angle | -55 °C | 125 °C | Power | 1 | Thermoplastic | Combo D-Sub | 5W5 | 3 | 5 | Gold | Board Lock Mounting Brackets | Solder | 300 VDC | 30 A | UL94 V-0 | Nickel Plated Steel | 0.458 in | 11.64 mm | Brass | |
Amphenol ICC (FCI) | Male Pins Plug | Female Screwlock (4-40) Mating Side | Through Hole Right Angle | -55 °C | 125 °C | Power | 1 | Thermoplastic | Combo D-Sub | 5W5 | 3 | 5 | Gold | Board Lock Grounding Indents Mounting Brackets | Solder | 300 VDC | 30 A | UL94 V-0 | Nickel Plated Steel | 0.458 in | 11.64 mm | Phosphor Bronze | |
Amphenol ICC (FCI) | Male Pins Plug | Female Screwlock (4-40) Mating Side | Through Hole | -55 °C | 125 °C | Power | 1 | Thermoplastic | Combo D-Sub | 5W5 | 3 | 5 | Gold | Board Lock Grounding Indents | Solder | 300 VDC | 40 A | UL94 V-0 | Nickel Plated Steel | Brass | |||
Amphenol ICC (FCI) | Male Pins Plug | Female Screwlock (4-40) Mating Side | Through Hole | -55 °C | 125 °C | Power | 1 | Thermoplastic | Combo D-Sub | 5W5 | 3 | 5 | Gold | Board Lock Grounding Indents | Solder | 300 VDC | 30 A | UL94 V-0 | Nickel Plated Steel | Brass | |||
Amphenol ICC (FCI) | Male Pins Plug | Female Screwlock (4-40) Mating Side | Through Hole | -55 °C | 125 °C | Power | 1 | Thermoplastic | Combo D-Sub | 5W5 | 3 | 5 | Gold | Board Lock Grounding Indents | Solder | 300 VDC | 40 A | UL94 V-0 | Nickel Plated Steel | Brass | |||
Amphenol ICC (FCI) | Receptacle Female Sockets | Female Screwlock (4-40) Mating Side | Through Hole | -55 °C | 125 °C | Power | 1 | Thermoplastic | Combo D-Sub | 5W5 | 3 | 5 | Tin | Solder | 40 A | Steel | |||||||
Amphenol ICC (FCI) | Receptacle Female Sockets | Female Screwlock (4-40) Mating Side | Through Hole Right Angle | -55 °C | 125 °C | Power | 1 | Thermoplastic | Combo D-Sub | 5W5 | 3 | 5 | Gold | Board Lock Mounting Brackets | Solder | 300 VDC | 30 A | UL94 V-0 | Nickel Plated Steel | 0.374 in | 9.5 mm | Brass | |
Amphenol ICC (FCI) | Male Pins Plug | Female Screwlock (4-40) Mating Side | Through Hole | -55 °C | 125 °C | Power | 1 | Thermoplastic | Combo D-Sub | 5W5 | 3 | 5 | Tin | Board Lock Grounding Indents | Solder | 30 A |
