V7806 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER 6.5V 3.25W

Part	Type	Power (Watts)	Mounting Type	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Number of Outputs	Current - Output (Max) [Max]	Package / Case	Voltage - Input (Min) [Min]	Applications	Features	Voltage - Output 1
CUI Inc. V7806W-500R	Linear Regulator Replacement	3.25 W	Right Angle Through Hole	72 V	85 °C	-40 C	91 %	11.5 mm	0.35 in	0.45 in	0.69 in	9 mm	17.5 mm	1	500 mA	3-SIP Module	9 V	ITE (Commercial)	OTP SCP	6.5 V

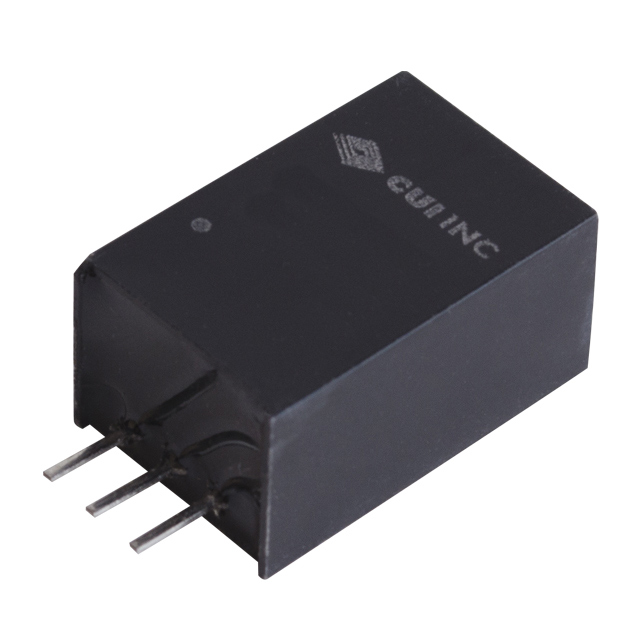

CUI Inc. V7806-1000	Linear Regulator Replacement	6.5 W	Through Hole	32 V	85 °C	-40 C	94 %	9 mm	0.69 in	0.35 in	0.45 "	17.5 mm	11.5 mm	1	1 A	3-SIP Module	9 V	ITE (Commercial)	OTP SCP	6.5 V

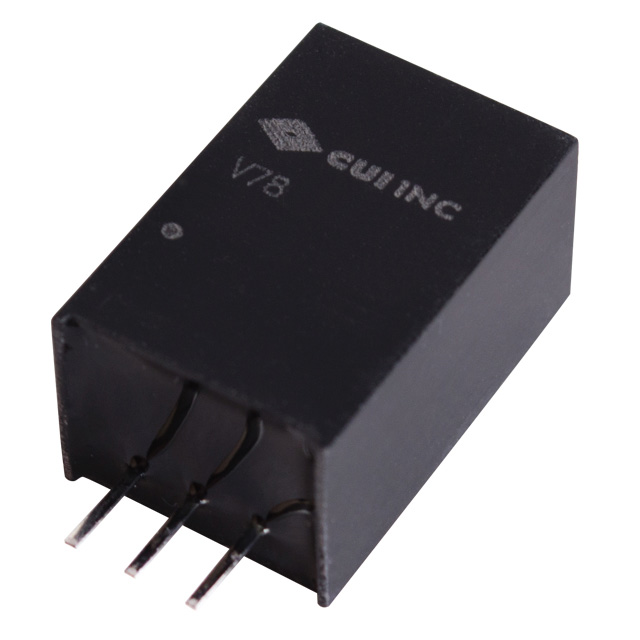

CUI Inc. V7806-1500	Linear Regulator Replacement	9.75 W	Through Hole	18 V	85 °C	-40 C	95 %	9 mm	0.69 in	0.35 in	0.45 "	17.5 mm	11.5 mm	1	1.5 A	3-SIP Module	8 V	ITE (Commercial)	OTP SCP	6.5 V
CUI Inc. V7806W-500	Linear Regulator Replacement	3.25 W	Through Hole	72 V	85 °C	-40 C	91 %	9 mm	0.69 in	0.35 in	0.45 "	17.5 mm	11.5 mm	1	500 mA	3-SIP Module	9 V	ITE (Commercial)	OTP SCP	6.5 V

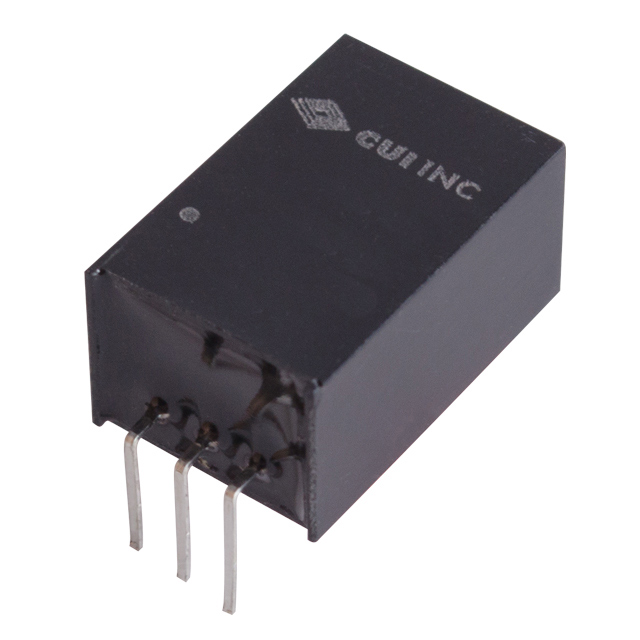

CUI Inc. V7806-1000R	Linear Regulator Replacement	6.5 W	Right Angle Through Hole	32 V	85 °C	-40 C	94 %	11.5 mm	0.35 in	0.45 in	0.69 in	9 mm	17.5 mm	1	1 A	3-SIP Module	9 V	ITE (Commercial)	OTP SCP	6.5 V

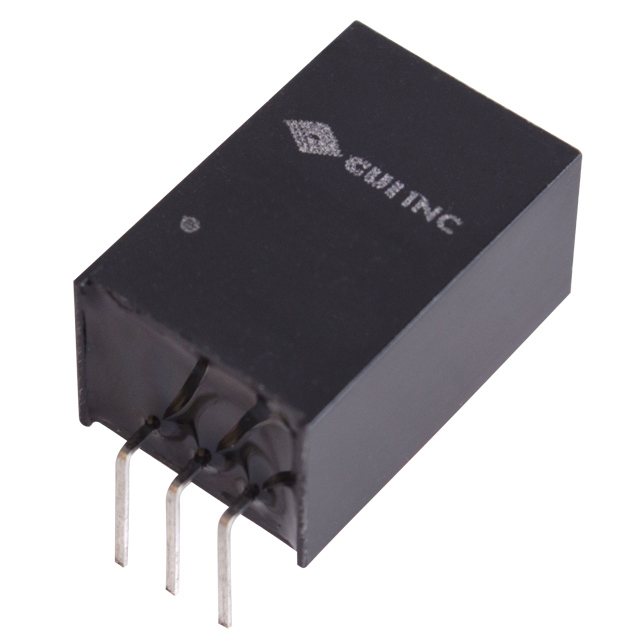

CUI Inc. V7806-1500R	Linear Regulator Replacement	9.75 W	Right Angle Through Hole	18 V	85 °C	-40 C	95 %	11.5 mm	0.35 in	0.45 in	0.69 in	9 mm	17.5 mm	1	1.5 A	3-SIP Module	8 V	ITE (Commercial)	OTP SCP	6.5 V
CUI Inc. V7806-500	Linear Regulator Replacement	3.25 W	Through Hole	32 V	85 °C	-40 C	94 %	7.6 mm	0.4 "	0.3 "	0.45 "	10.2 mm	11.4 mm	1	500 mA	3-SIP Module	8 V	ITE (Commercial)	OTP SCP	6.5 V
