TDF854 Series
Manufacturer: NXP USA Inc.
Beta
⌘K
IC AMP CLASS AB QUAD 28W DBS27P
| Part | Type | Maximum Output Power (per Channel) | Load Impedance | Channels | Package Name | Output Type | Mounting Type | Package / Case | Features | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Package Width | Package Features | Package Length | Operating Temperature (Max) | Operating Temperature (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NXP USA Inc. | Class AB | 28 W | 4 Ohm | 4 | DBS27P | 4-Channel (Quad) | Through Hole | 27-SIP Formed Leads | Depop Short-Circuit and Thermal Protection | 18 V | 6 V | |||||
NXP USA Inc. | Class AB | 28 W | 4 Ohm | 4 | DBS27P | 4-Channel (Quad) | Through Hole | 27-SIP Formed Leads | Depop Short-Circuit and Thermal Protection | 18 V | 6 V | |||||
 NXP USA Inc. | Class AB | 25 W | 4 Ohm | 4 | 36-BSSOP 36-HSOP | 4-Channel (Quad) | Surface Mount | Depop Short-Circuit and Thermal Protection | 18 V | 6 V | 11 mm | Exposed Pad | 0.433 in | |||
NXP USA Inc. | Class AB | 28 W | 4 Ohm | 4 | 36-BSSOP 36-HSOP | 4-Channel (Quad) | Surface Mount | Depop Short-Circuit and Thermal Protection | 18 V | 6 V | 11 mm | Exposed Pad | 0.433 in | |||

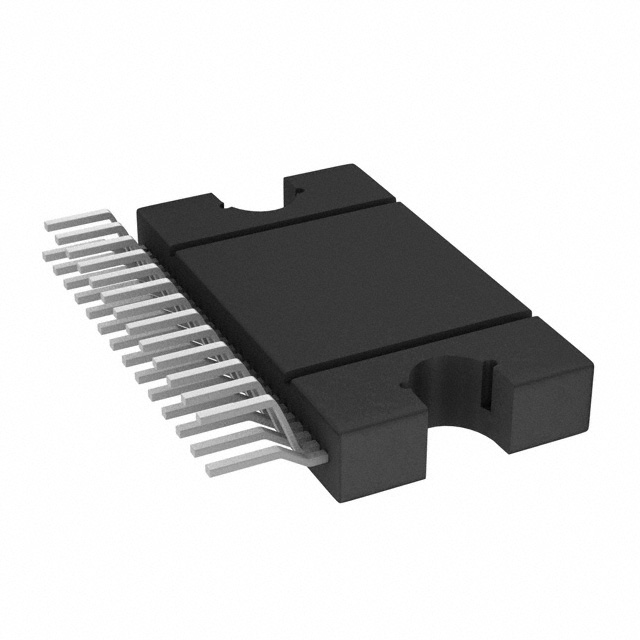

NXP USA Inc. | Class AB | 25 W | 4 Ohm | 4 | 27-RDBS | 4-Channel (Quad) | Through Hole | 27-SIP Formed Leads | Depop Short-Circuit and Thermal Protection | 18 V | 6 V | |||||
NXP USA Inc. | Class AB | 28 W | 4 Ohm | 4 | DBS27P | 4-Channel (Quad) | Through Hole | 27-SIP Formed Leads | Depop I2C Mute Short-Circuit and Thermal Protection Standby | 18 V | 6 V | |||||
NXP USA Inc. | Class AB | 25 W | 4 Ohm | 4 | DBS27P | 4-Channel (Quad) | Through Hole | 27-SIP Formed Leads | Depop Short-Circuit and Thermal Protection | 18 V | 6 V | |||||
NXP USA Inc. | Class AB | 28 W | 4 Ohm | 4 | 27-RDBS | 4-Channel (Quad) | Through Hole | 27-SIP Formed Leads | Depop Short-Circuit and Thermal Protection | 18 V | 6 V | |||||
NXP USA Inc. | Class AB | 25 W | 4 Ohm | 4 | DBS27P | 4-Channel (Quad) | Through Hole | 27-SIP Formed Leads | Depop Short-Circuit and Thermal Protection | 18 V | 6 V | |||||

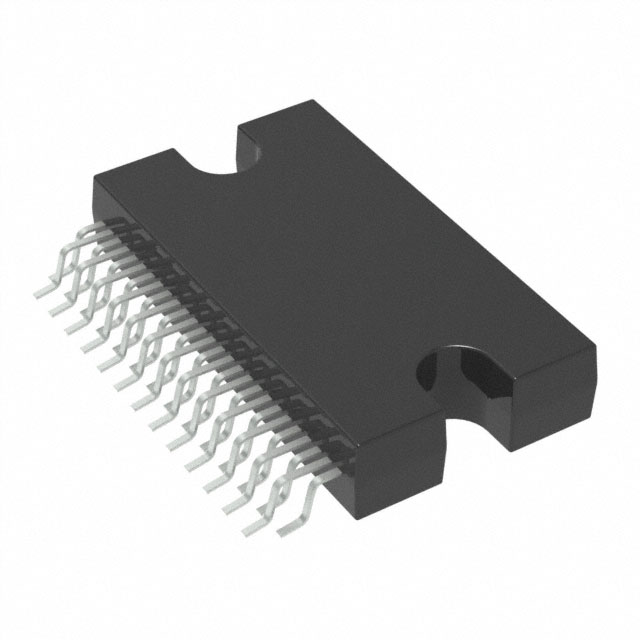

 NXP USA Inc. | Class AB | 64 W | 2 Ohm | 4 | 27-DBSMSP | 4-Channel (Quad) | Surface Mount | 27-PowerSMD Module | Depop I2C Mute Short-Circuit and Thermal Protection Standby | 18 V | 6 V | 105 °C | -40 °C |
