GBC32D Series

Catalog

3A VERTICAL WELDING TIN 64P -65℃~+150℃ 2.54MM DOUBLE ROW BLACK PHOSPHOR BRONZE 2.54MM SMD,P=2.54MM PIN HEADERS ROHS

Part	Pitch - Mating	Pitch - Mating	Shrouding	Material Flammability Rating	Style	Current Rating (Amps)	Number of Positions	Insulation Material	Contact Material	Number of Rows	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Finish - Mating	Connector Type	Termination	Contact Finish - Post	Fastening Type	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Mounting Type	Insulation Color	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating
Sullins Connector Solutions GBC32DFBN-M30	0.1 in	2.54 mm	Unshrouded	UL94 V-0	Board to Board Cable	3 A	64	Nylon 9T Polyamide (PA9T)	Phosphor Bronze	2	0.318 "	8.08 mm	Gold	Breakaway Header	Solder	Tin	Push-Pull	0.1 in	2.54 mm	2.54 µm	100 µin	All	Surface Mount	Black	Male Pin	-65 ░C	150 °C	10 çin	0.25 çm	Square	2.54 mm	0.1 in

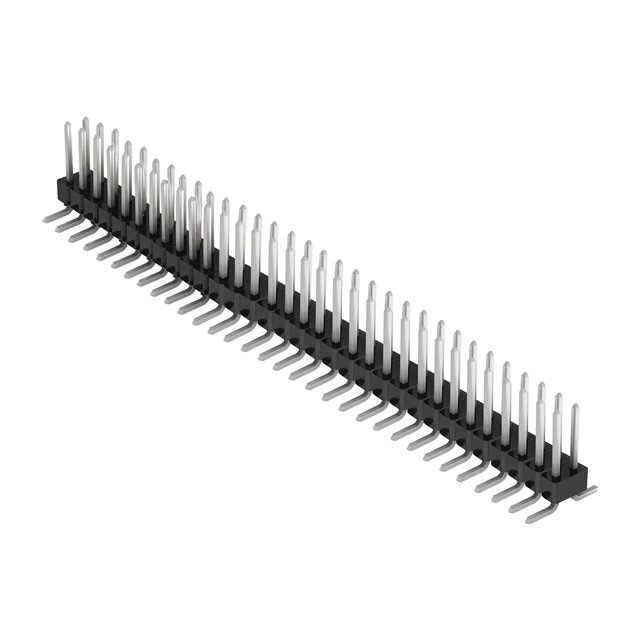

Sullins Connector Solutions GBC32DABN-M30	0.1 in	2.54 mm	Unshrouded	UL94 V-0	Board to Board Cable	3 A	64	Nylon 9T Polyamide (PA9T)	Phosphor Bronze	2	0.23 in		Gold	Breakaway Header	Solder	Tin	Push-Pull	0.1 in	2.54 mm	2.54 µm	100 µin	All	Surface Mount	Black	Male Pin	-65 ░C	150 °C	10 çin	0.25 çm	Square	2.54 mm	0.1 in	5.84 mm
