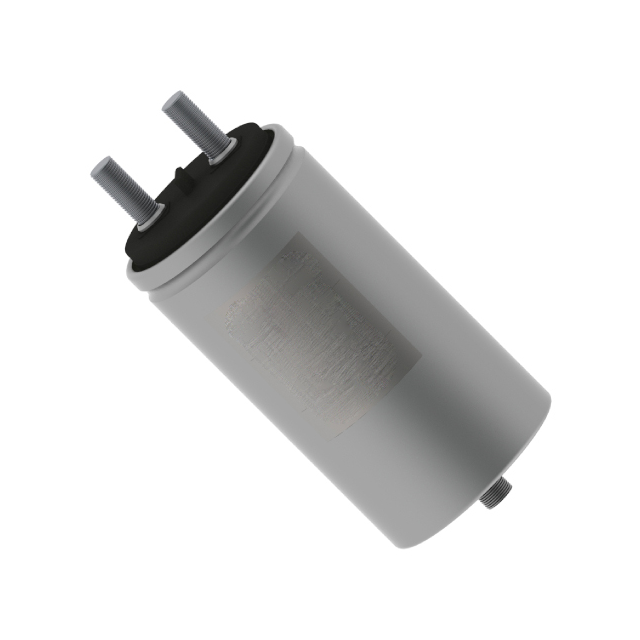

C44AHG Series

Manufacturer: KEMET

Catalog

CAP FILM 75UF 5% 600VDC RADIAL

Part	Tolerance	ESR (Equivalent Series Resistance)	Termination	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage Rating - AC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage Rating - DC	Dielectric Material	Lead Spacing	Lead Spacing	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max)	Height - Seated (Max) [Max]

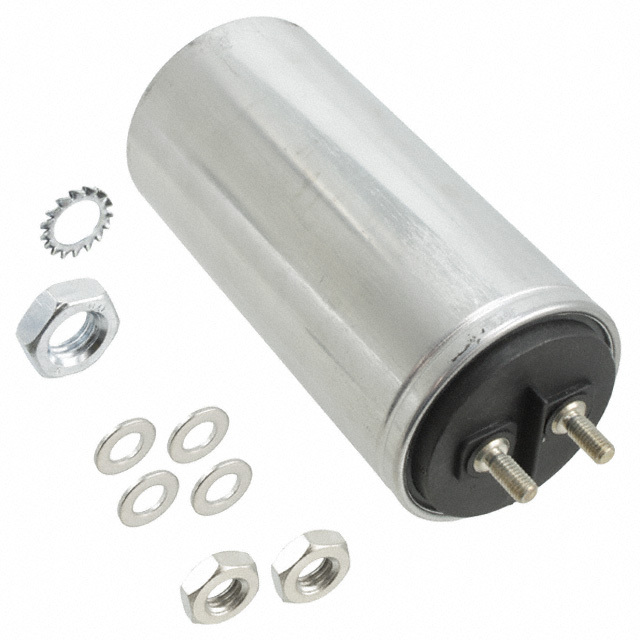

KEMET C44AHGP5750ZA0J	5 %	5 mOhm	Threaded Male	General Purpose	85 °C	-40 C	Can Radial	75 µF	2.559 in	65 mm	330 V	140 mm	5.512 "	600 V	Polypropylene (PP) Metallized	22.3 mm	0.878 in	Chassis Stud Mount
KEMET C44AHGP5600ZB0J	5 %	5 mOhm	Threaded Male	General Purpose	85 °C	-40 C	Can Radial	60 µF	2.362 in	60 mm	330 V	140 mm	5.512 "	600 V	Polypropylene (PP) Metallized	22.3 mm	0.878 in	Chassis Mount
KEMET C44AHGP6100ZA0J	5 %	5 mOhm	Threaded Male	General Purpose	85 °C	-40 C	Can Radial	100 µF	2.992 " 76 mm		330 V			600 V	Polypropylene (PP) Metallized	22.3 mm	0.878 in	Chassis Stud Mount	5.433 in	138 mm
KEMET C44AHGP5700ZA0J	5 %	5 mOhm	Threaded Male	General Purpose	85 °C	-40 C	Can Radial	70 µF	2.559 in	65 mm	330 V	140 mm	5.512 "	600 V	Polypropylene (PP) Metallized	22.3 mm	0.878 in	Chassis Stud Mount
KEMET C44AHGP5400ZB0J	5 %	2 mOhms	Threaded Male	General Purpose	85 °C	-40 C	Can Radial	40 µF	2.362 in	60 mm	330 V			600 V	Polypropylene (PP) Metallized	22.3 mm	0.878 in	Chassis Mount	4.055 in		103 mm
