CS1102V Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Switch Travel	Actuator Material	Mounting Type	Circuit	Operating Force	Outline [x]	Outline [y]	Actuator Height off PCB, Vertical [z]	Termination Style	Illumination	Switch Function	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating @ Voltage	Actuator Orientation	Actuator Length, Right Angle [x]	Actuator Length, Right Angle	Actuator Height off PCB, Vertical

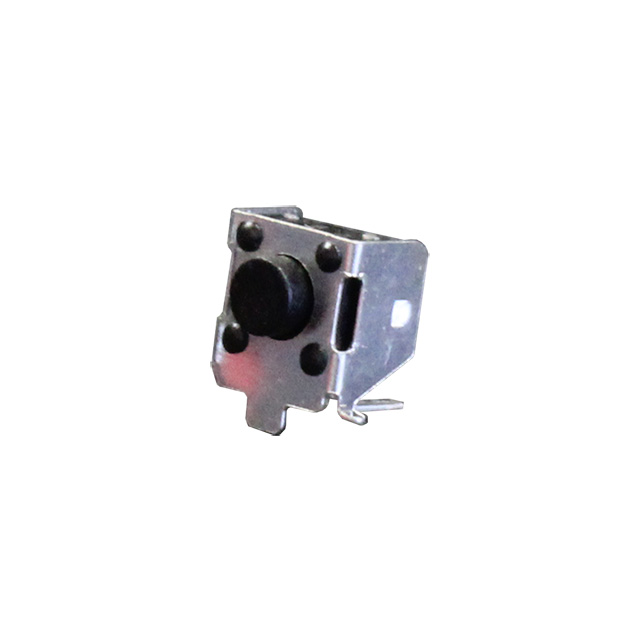

CIT Relay and Switch CS1102V3.85F260	0.25 mm	Polyamide (PA46) Nylon 4/6	Surface Mount	SPST-NO	260 gf	6 mm	6 mm	3.85 mm	Gull Wing	Non-Illuminated	Off-Mom	Plunger for Cap	85 °C	-40 C	0.05 A 50 VDC	Top Actuated

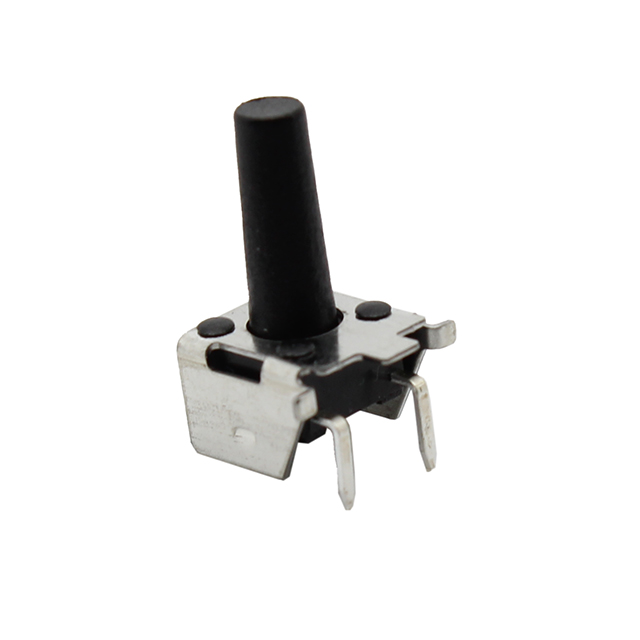

CIT Relay and Switch CS1102V11.85F160		Polyamide (PA46) Nylon 4/6	Through Hole	SPST-NO	160 gf	7.1 mm	6.3 mm	11.85 mm	PC Pin	Non-Illuminated	Off-Mom	Standard	85 °C	-40 C	0.05 A 50 VDC	Top Actuated
CIT Relay and Switch CS1102V3.85F100	0.25 mm	Polyamide (PA46) Nylon 4/6	Right Angle Surface Mount	SPST-NO	100 gf	7.5 mm	7.1 mm		Gull Wing	Non-Illuminated	Off-Mom	Standard	85 °C	-40 C	0.05 A 50 VDC	Side Actuated	3.85 mm

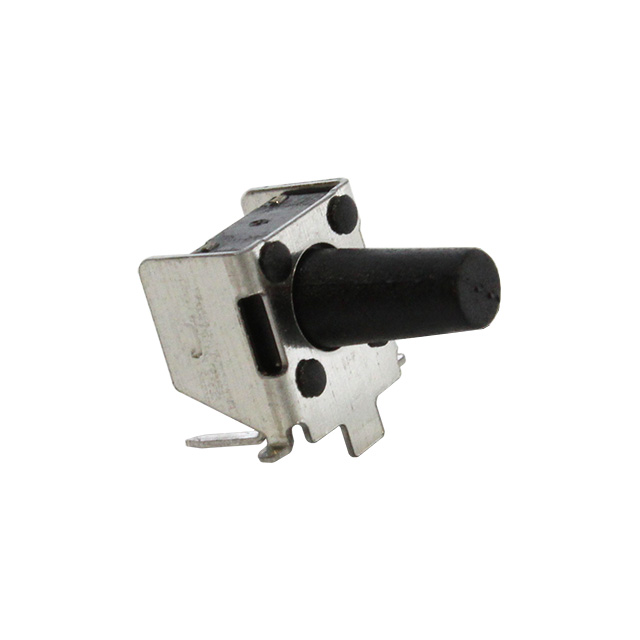

CIT Relay and Switch CS1102V8.35F100	0.25 mm	Polyamide (PA46) Nylon 4/6	Right Angle Surface Mount	SPST-NO	100 gf	7.1 mm	6.3 mm		Gull Wing	Non-Illuminated	Off-Mom	Standard	85 °C	-40 C	0.05 A 50 VDC	Side Actuated		8.35 mm

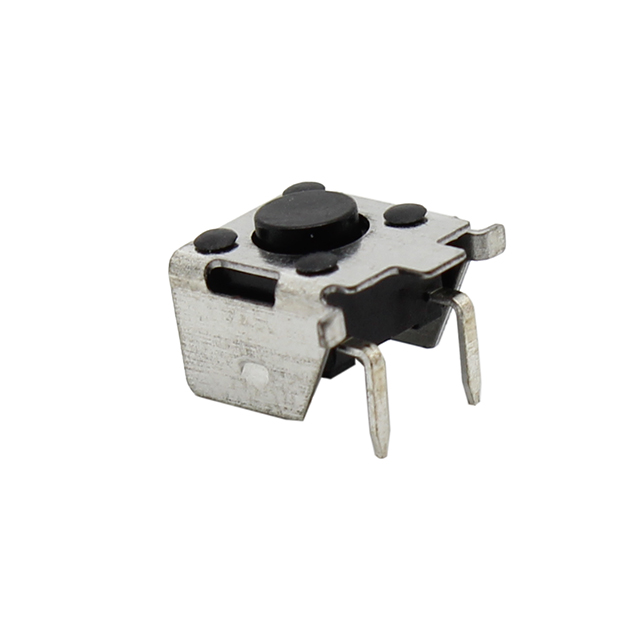

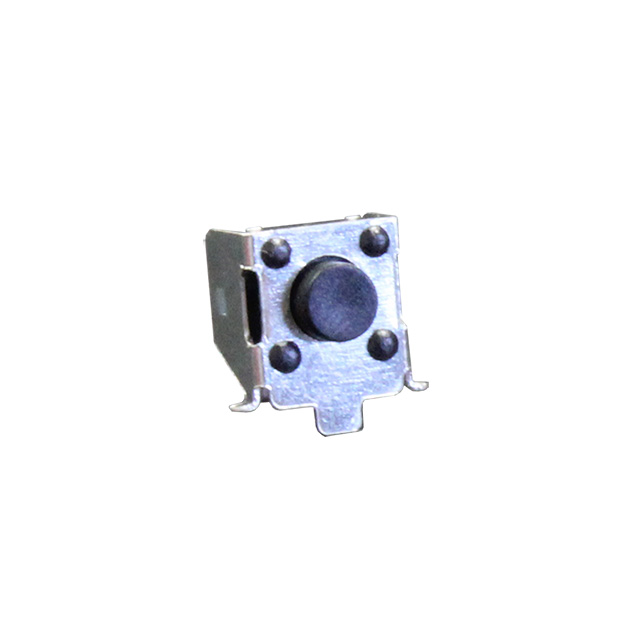

CIT Relay and Switch CS1102V3.15F260	0.25 mm	Polyamide (PA46) Nylon 4/6	Right Angle Surface Mount	SPST-NO	260 gf	7.1 mm	6.3 mm		Gull Wing	Non-Illuminated	Off-Mom	Standard	85 °C	-40 C	0.05 A 50 VDC	Side Actuated	3.15 mm

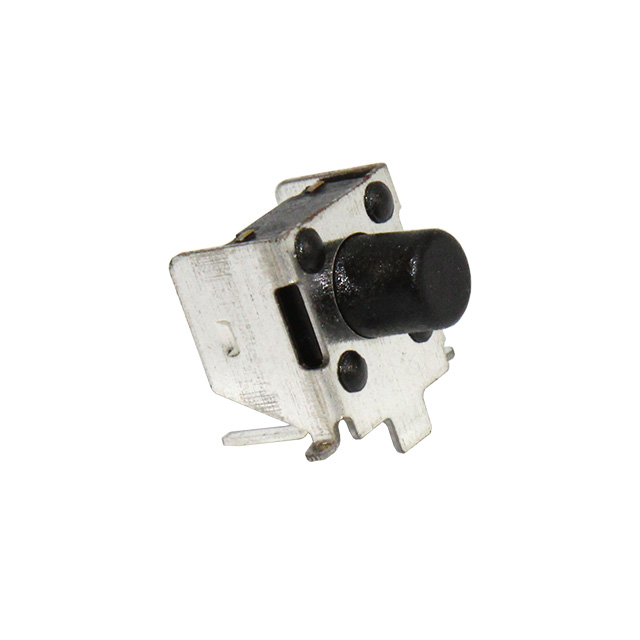

CIT Relay and Switch CS1102V5.85F260	0.25 mm	Polyamide (PA46) Nylon 4/6	Right Angle Surface Mount	SPST-NO	260 gf	7.1 mm	6.3 mm		Gull Wing	Non-Illuminated	Off-Mom	Standard	85 °C	-40 C	0.05 A 50 VDC	Side Actuated	5.85 mm

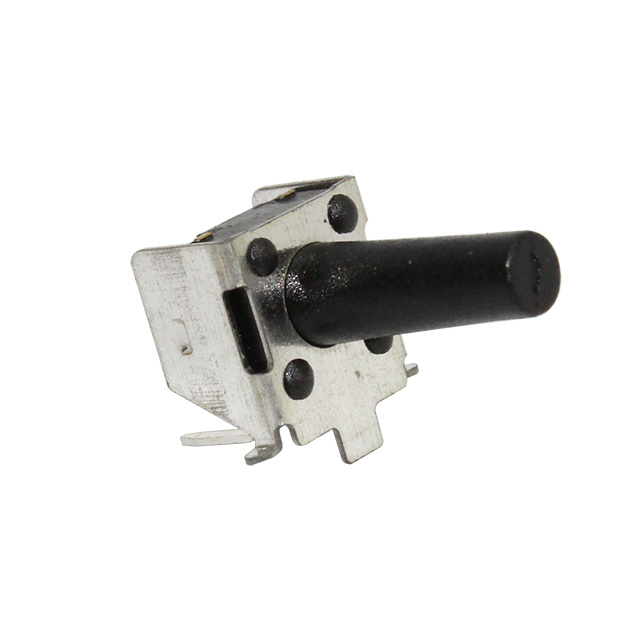

CIT Relay and Switch CS1102V11.85F260	0.25 mm	Polyamide (PA46) Nylon 4/6	Right Angle Surface Mount	SPST-NO	260 gf	7.1 mm	6.3 mm		Gull Wing	Non-Illuminated	Off-Mom	Standard	85 °C	-40 C	0.05 A 50 VDC	Side Actuated	11.85 mm

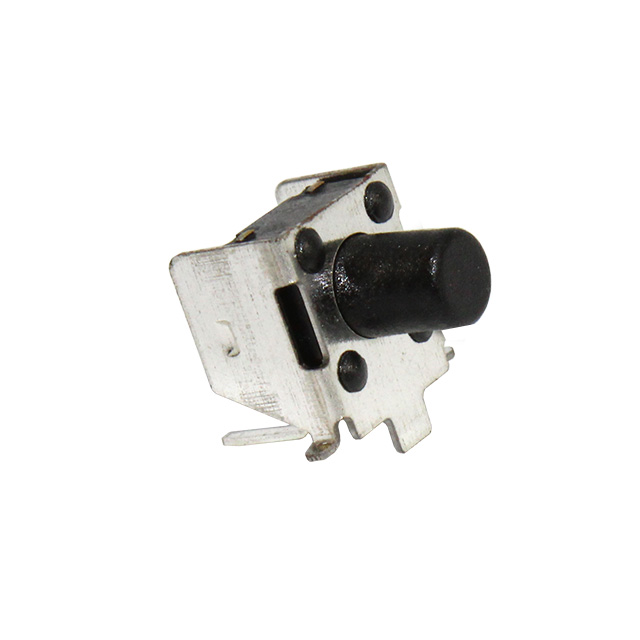

CIT Relay and Switch CS1102V6.85F260	0.25 mm	Polyamide (PA46) Nylon 4/6	Right Angle Surface Mount	SPST-NO	260 gf	7.1 mm	6.3 mm		Gull Wing	Non-Illuminated	Off-Mom	Standard	85 °C	-40 C	0.05 A 50 VDC	Side Actuated		6.85 mm
CIT Relay and Switch CS1102V11.85F100	0.25 mm	Polyamide (PA46) Nylon 4/6	Right Angle Surface Mount	SPST-NO	100 gf	7.1 mm	6.3 mm		Gull Wing	Non-Illuminated	Off-Mom	Standard	85 °C	-40 C	0.05 A 50 VDC	Side Actuated	11.85 mm

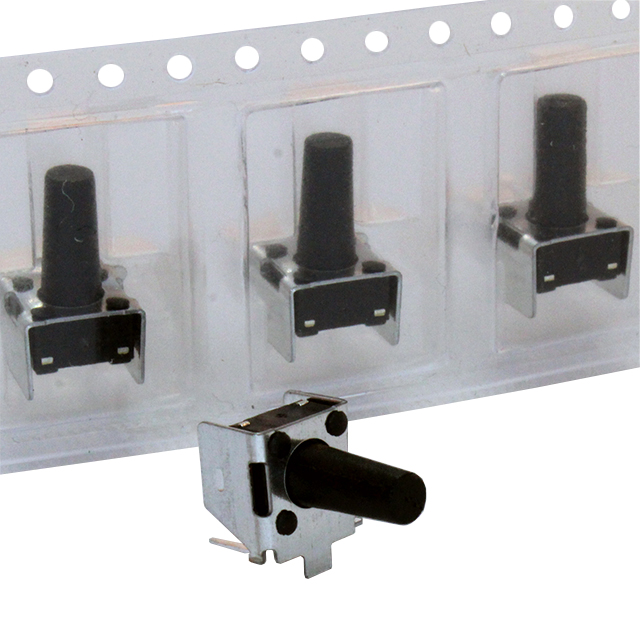

CIT Relay and Switch CS1102V8.35F160		Polyamide (PA46) Nylon 4/6	Through Hole	SPST-NO	160 gf	7.1 mm	6.3 mm		PC Pin	Non-Illuminated	Off-Mom	Standard	85 °C	-40 C	0.05 A 50 VDC	Top Actuated			8.35 mm
