WR9QI1660 Series

Catalog

AC/DC WALL MOUNT ADAPTER 24V 40W

Part	Input Type	No Load Power Consumption	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output (Max) [Max]	Input Connector	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Cord Length	Cord Length	Standard Number	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Form	Voltage - Output	Output Connector [x]	Output Connector [diameter]	Output Connector	Region Utilized	Applications	Polarization	Efficiency

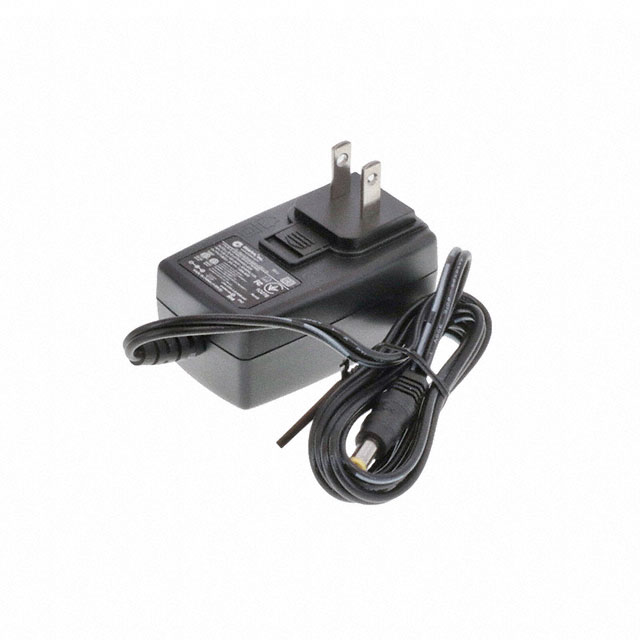

GlobTek, Inc. WR9QI1660CCPN(R6B)	Multi-Blade (Sold Separately)	75 mW	264 VAC	90 VAC	1.66 A	Multi-Blade (Sold Separately)	40 °C	0 °C	40 W	1.2 m	47.2 in	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	1.71 "	2.91 in	74 mm	35.3 mm	1.39 in	43.5 mm	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM UkrSEPRO UL VCCI	Wall Mount	24 V	11 mm	2.1 mm 5.5 mm	Barrel Plug	International	Household Appliances ITE (Commercial) Medical	Positive Center	Level VI
GlobTek, Inc. WR9QI1660YL4NKITR6B	Multi-Blade (Sold Separately)	75 mW	264 VAC	90 VAC	1.66 A	Multi-Blade	40 °C	-20 ░C	40 W	1.2 m	47.2 in		2.91 in	1.71 in	43.5 mm	35.3 mm	1.39 in	74 mm	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM UkrSEPRO UL VCCI	Wall Mount	24 V			Power DIN 4 Pin	International	Household Appliances ITE (Commercial) Medical		CoC Tier 2 Level VI

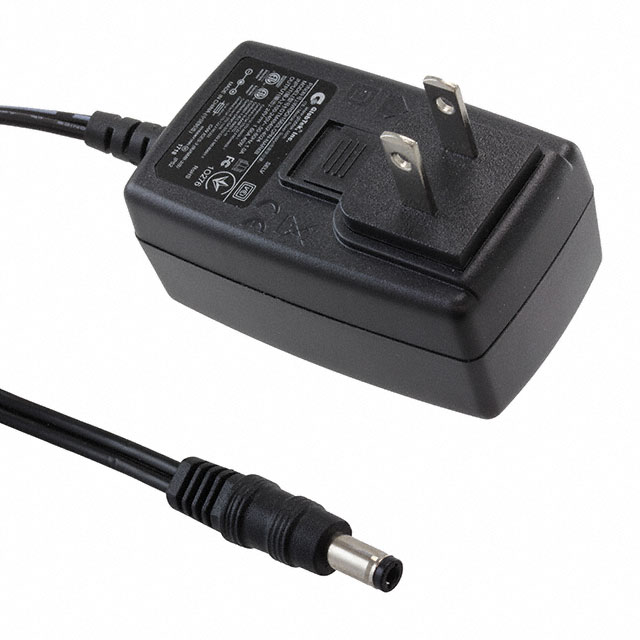

GlobTek, Inc. WR9QI1660LCPN-NAR6B	Multi-Blade (Sold Separately)	75 mW	264 VAC	90 VAC	1.66 A	Multi-Blade (Sold Separately)	40 °C	0 °C	40 W	1.2 m	47.2 in	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	1.71 "	2.91 in	74 mm	35.3 mm	1.39 in	43.5 mm	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM UkrSEPRO UL VCCI	Wall Mount	24 V	11 mm	2.5 mm 5.5 mm	Barrel Plug	International	Household Appliances ITE (Commercial) Medical	Positive Center	Level VI
