1057 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN PLUG N-TYPE SQ FLANGE SOLDR
| Part | Body Finish | Voltage Rating | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Center Contact Plating | Body Material | Mounting Type | Housing Color | Connector Style | Impedance | Center Contact Material | Contact Termination | Mounting Feature | Frequency - Max [Max] | Fastening Type | Shield Termination | Connector Type | Insertion Loss | Adapter Series | Style | Convert To (Adapter End) | Conversion Type | Convert From (Adapter End) | Adapter Type | Fastening Type | Includes | Cable Group | Number of Ports | Center Gender | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Nickel | 1000 VDC | 500 | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | Brass | Panel Mount | Silver | N Type | 50 Ohms | Brass | Solder Cup | Flange | 11 GHz | Threaded | Solder | Receptacle Male Pin | |||||||||||||
TE Connectivity AMP Connectors | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | Stainless Steel | Panel Mount | 50 Ohms | Beryllium Copper | Flange | 15 GHz | 0.18 dB | OSM to OSN | Straight | N Jack Female Socket | Between Series | Male Pin SMA Plug | Plug to Jack | |||||||||||||||

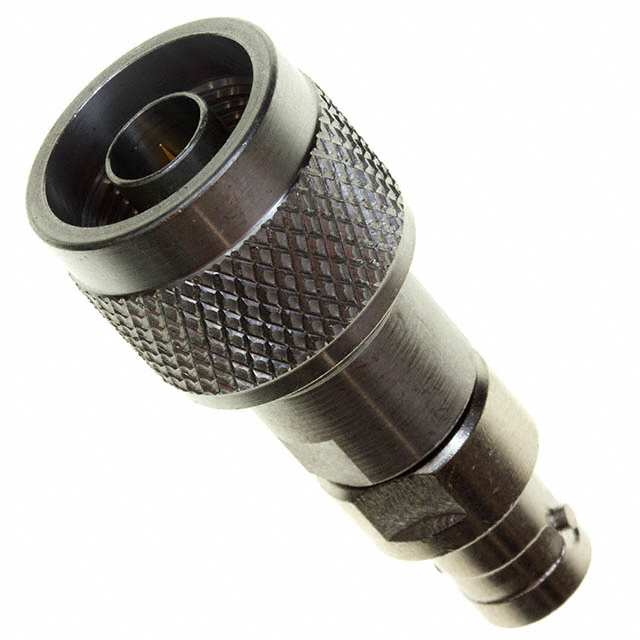

 TE Connectivity AMP Connectors | Nickel; Passivated | Polytetrafluoroethylene (PTFE) | Gold | Brass Stainless Steel | Free Hanging (In-Line) | Brass | Bayonet Lock | BNC to N | Straight | BNC Jack Female Socket | Between Series | N Plug Male Pin | Plug to Jack | Threaded | ||||||||||||||||||
TE Connectivity AMP Connectors | Polytetrafluoroethylene (PTFE) | Gold | Stainless Steel | Panel Mount | Beryllium Copper | Bulkhead | Snap-On Threaded | OSP to OST | Straight | Female Socket TNC Jack | Between Series | Male Pin OSP Plug | Plug to Jack | 1 Connector 1 Lockwasher 1 Nut | ||||||||||||||||||

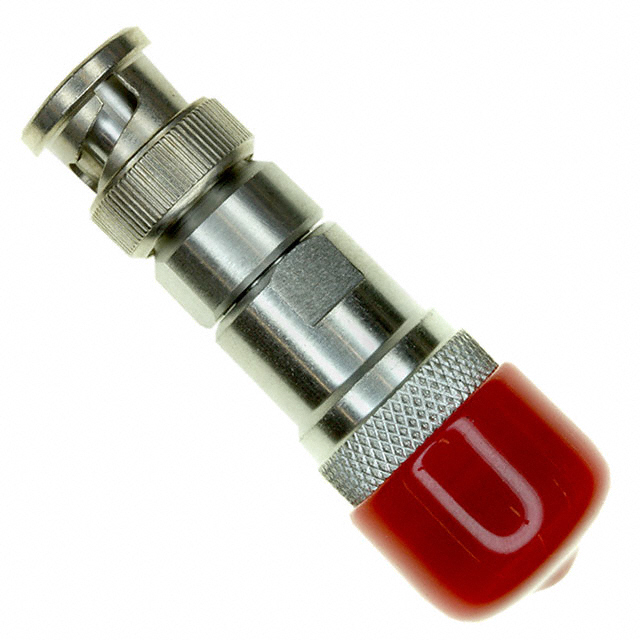

 TE Connectivity AMP Connectors | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | Stainless Steel | Free Hanging (In-Line) | 50 Ohms | Brass | 4 GHz | Bayonet Lock | BNC to N | Straight | N Jack Female Socket | Between Series | BNC Plug Male Pin | Plug to Jack | Threaded | |||||||||||||||
 TE Connectivity AMP Connectors | Nickel | 1000 VDC | 500 | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | Brass | Panel Mount | Silver | N Type | 50 Ohms | Brass | Solder | Bulkhead - Front Side Nut | 11 GHz | Threaded | Clamp | Female Socket Jack | 179 187 188 316 RG-174 | 1 | |||||||||||
 TE Connectivity AMP Connectors | 335 V | 500 | -65 ░C | 105 ░C | Polytetrafluoroethylene (PTFE) | Gold | Stainless Steel | Panel Mount | Silver | N Type | 50 Ohms | Brass | Solder | Bulkhead - Front Side Nut | 18 GHz | Threaded | Solder | Female Socket Jack | 1 Clamp 1 Connector 1 Contact 1 Insulator 1 Lockwasher 1 Nut 2 Gaskets | RG-405 (.085" Semi Rigid) | 1 | |||||||||||
 TE Connectivity AMP Connectors | -65 ░C | 125 °C | Polytetrafluoroethylene (PTFE) | Gold | Stainless Steel | Panel Mount | 50 Ohms | Brass | Bulkhead | 15 GHz | 0.18 dB | OSM to OSN | Straight | N Jack Female Socket | Between Series | Female Socket SMA Jack | Jack to Jack | 1 Connector 1 Lockwasher 1 Nut | Female to Female | |||||||||||||
TE Connectivity AMP Connectors | Gold Passivated | 335 V | 500 | -65 ░C | 105 ░C | Polytetrafluoroethylene (PTFE) | Gold | Stainless Steel | Free Hanging (In-Line) | Gold Silver | TNC | 50 Ohms | Brass | Solder | 15 GHz | Threaded | Solder | Plug Male Pin | 1 | |||||||||||||

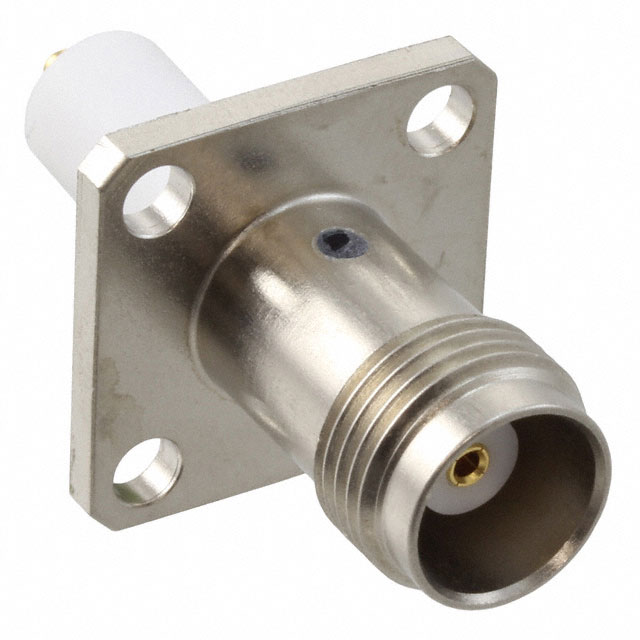

 TE Connectivity AMP Connectors | Nickel | 500 | Polytetrafluoroethylene (PTFE) | Gold | Brass | Panel Mount | Silver | TNC | 50 Ohms | Beryllium Copper | Solder | Flange | 7 GHz | Threaded | Solder | Receptacle Female Socket | 1 | Extended Insulation |
